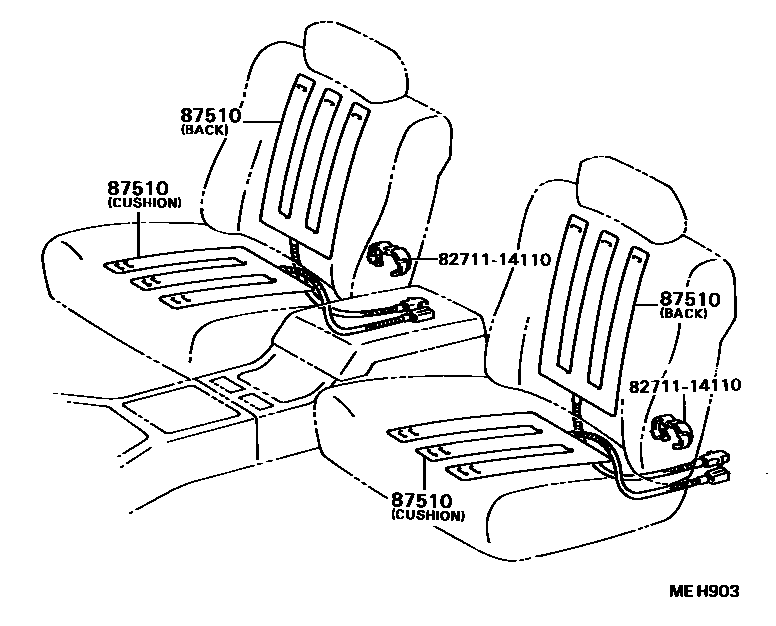

SEAT MOTOR & SEAT HEATER

87510HEATER ASSY, SEAT

main87510-32030×2iCV20,SV20,21..LHD..(XL,XLI)198710-198808

SEAT CUSHION

main87510-32040×2iCV20,SV20,21..LHD..(XL,XLI)198710-198808

SEAT BACK

main87510-32070×2iCV20,SV21..LHD..(GL,GLI)198708-198710

SEAT CUSHION

main87510-32080×2iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

SEAT BACK

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

2 parts on this diagram · 1 diagram in section
