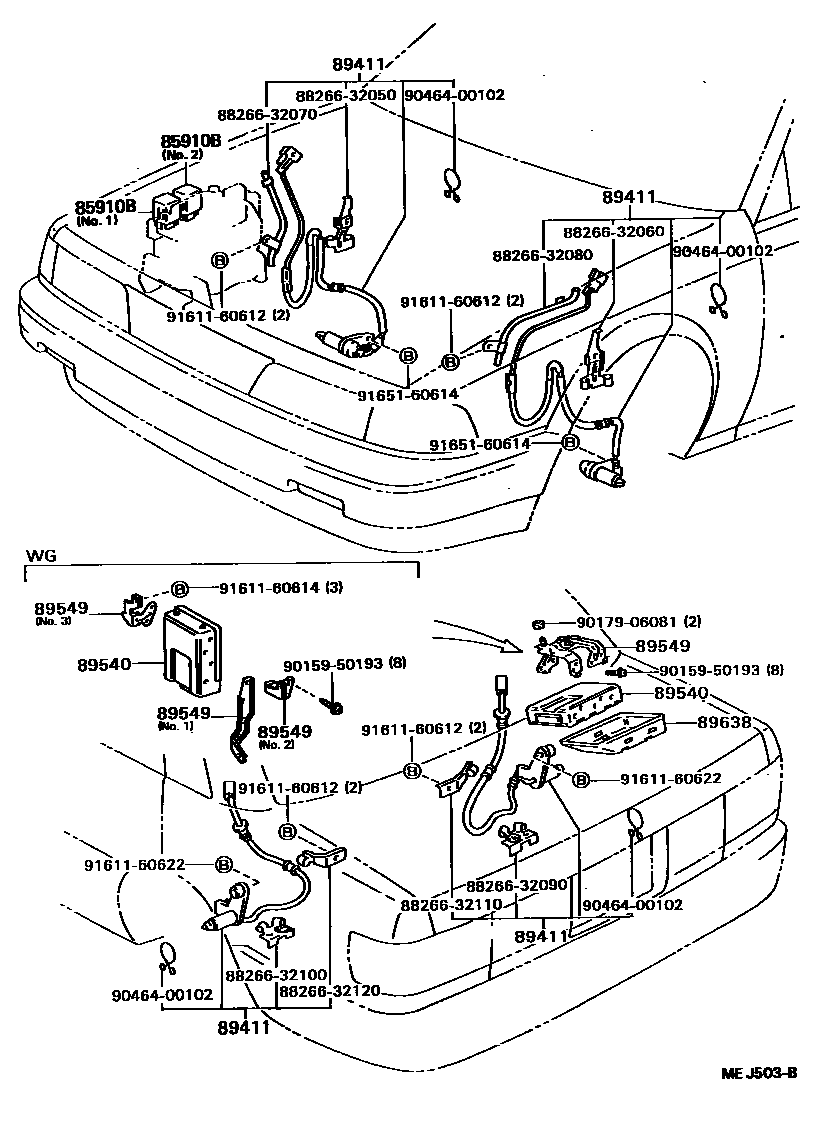

ABS & VSC

0001 1 0002 1

85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)

main88263-14110iSV21198708-198808

NO.1

main88263-14120iSV21198708-198808

NO.2

89411SENSOR, SPEED

main89542-32010iSV21,25,VZV21198708-198808

FR,RH

main89543-32010iSV21198708-198808

FR,LH

main89545-32010iSV21198708-198808

RR,RH

main89545-32020iSV25198710-198808

RR,RH

main89546-32010iSV21,VZV21198708-198808

RR,LH

main89546-32020iSV25198710-198808

RR,LH

89540COMPUTER ASSY, SKID CONTROL

main89541-32020iSV25198710-198808

main89541-32030iSV21,VZV21198708-198808

89549BRACKET, SKID CONTROL COMPUTER

main88267-32070iSV21..WG198708-198808

NO.1

main88268-32060iSV21..WG198708-198808

NO.2

main88269-32060iSV21..WG198708-198710

NO.3

main88269-32060iSV21..WG198710-198808

NO,3

main89549-32010iSV21..SED198708-198710

main89549-32020iSV21,25,VZV21..SED198710-198808

89638COVER, BRAKE CONTROL COMPUTER

main89638-32010iSV21,25,VZV21..SED198708-198808

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080

8826632090CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32090

8826632100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32100

8826632110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32110

8826632120CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32120

9015950193

main90159-50193

9017906081

main90179-06081

9046400102

main90464-00102

9161160612

main91611-60612

9161160614

main91611-60614

9161160622

main91611-60622

9165160614

main91651-60614

20 parts on this diagram · 2 diagrams in section
