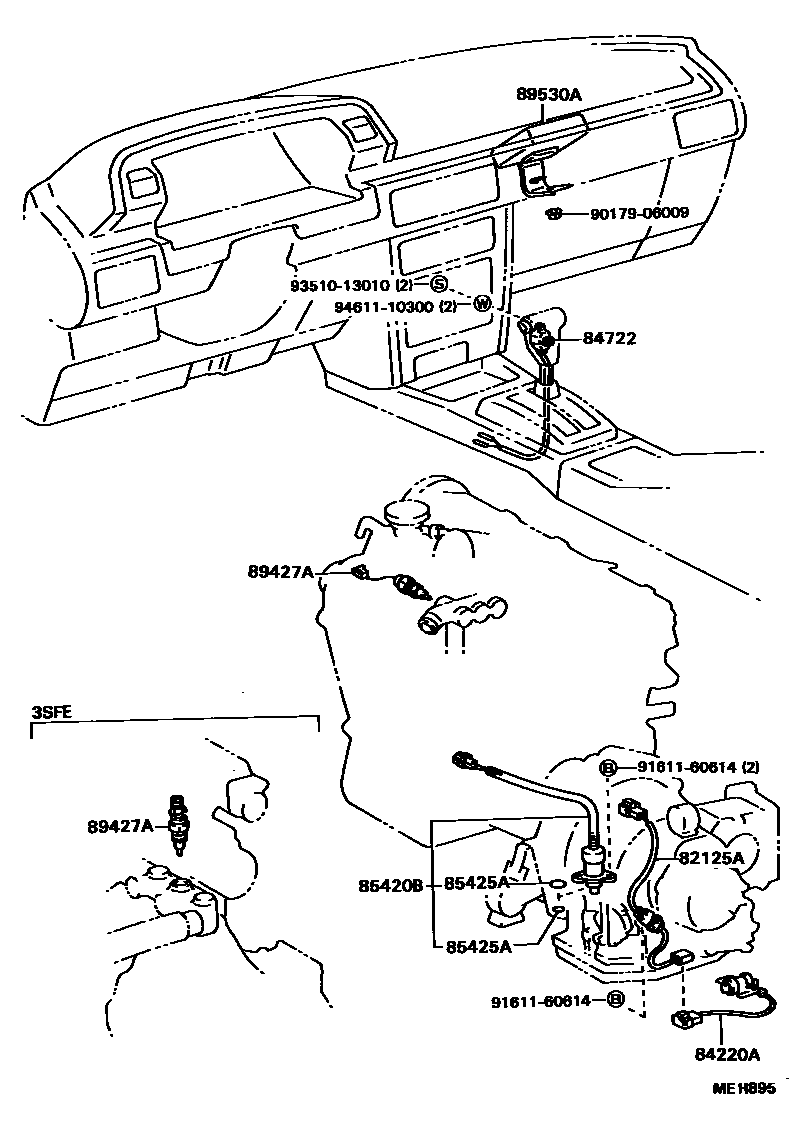

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT

82125AWIRE, TRANSMISSION

main82125-32020iSV2#..4FC198610-198710

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-32010iSV2#..4FC198610-198710

84722SWITCH, TRANSMISSION CONTROL

main84722-32020-01iSV2#..4FC198610-198710

BLACK,BLACK

sub84722-12020

85420SOLENOID ASSY, TRANSMISSION

main85420-32090iVZV21..4FC198802-198804

NO.1

sub85420-32103

main85420-32091iVZV21..4FC198804-198808

NO.1

sub85420-32102

main85420-32110iVZV21..4FC198802-198808

NO.2

sub85420-32120

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iSV2#..4FC198610-198710

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iSV2#..4FC198610-198710

ID=7

main96721-19017iSV2#..4FC198610-198710

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV21..4FC198610-198808

main89427-32010iSV20..4FC198610-198808

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-32170iSV20..4FC198610-198808

main89530-32180iSV21..4FC198610-198808

9017906009

main90179-06009

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

12 parts on this diagram · 2 diagrams in section
