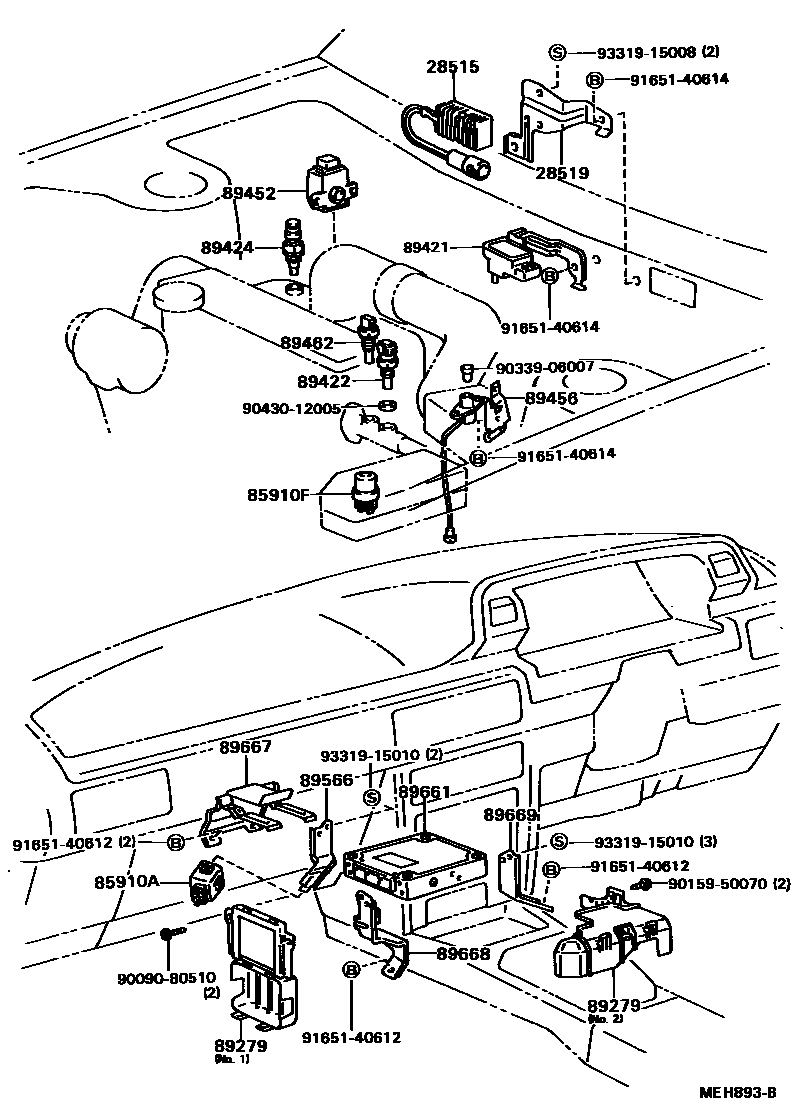

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-11010i3SFE..SV21198610-198708

28519BRACKET, SOLENOID RESISTOR

main28519-63020i3SFE..SV21..LHD198610-198708

main28519-63030i3SFE..SV21..RHD198610-198708

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSV21198610-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iSV21198610-198808

89279COVER, ENGINE CONTROL COMPUTER

main89279-32070iSV21,25198610-198808

NO.1

main89279-32080iSV21..RHD198610-198808

NO.2

main89279-32090iVZV21198802-198808

NO.1

main89279-32110iSV21,25,VZV21..LHD198610-198808

NO.2

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-32010iSV21..EUG198610-198808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iSV21,25,VZV21198610-198808

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iSV21..EUG198610-198808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-28030iVZV21198802-198808

sub89452-20050

main89452-32020iSV21198610-198808

89456RESISTOR, VARIABLE

main89456-32010iSV21..EUG198610-198808

89462SWITCH, START INJECTOR TIME

main89462-30011iSV25..FRG198710-198808

main89462-40010iSV25..EUG;SV21,VZV21198610-198808

89566BRACKET, FUEL INJECTION COMPUTER

main89566-32010iVZV21..4FC198802-198808

main89566-32020iSV21..RHD198706-198808

main89566-32030iVZV21..5F;SV21,25..LHD198706-198808

89661COMPUTER, ENGINE CONTROL

main89661-20490iSV21..EUG198710-198808

main89661-32080iSV21..EUG198610-198708

main89661-32100iSV21..FRG198610-198708

main89661-32160iSV25..FRG198710-198808

sub89661-32161

main89661-32180iSV25..EUG198710-198808

main89661-32190iSV21..FRG198708-198710

main89661-32191iSV21..FRG198710-198808

main89661-32200iSV21..EUG198708-198710

main89661-32290iVZV21..5F198802-198808

sub89661-32510

main89661-32300iVZV21..4FC198802-198808

sub89661-32520

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-32020iSV21,25,VZV21198610-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-32010iSV21,25..RHD198610-198808

main89668-32020iSV21,25..LHD198610-198808

main89668-32030iVZV21198802-198808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-32030iSV21..RHD198610-198808

main89669-32040iSV21..LHD198610-198808

9009080510

main90090-80510

9015950070

main90159-50070

9033906007

main90339-06007

9043012005

main90430-12005

9165140612

main91651-40612

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

24 parts on this diagram · 2 diagrams in section
