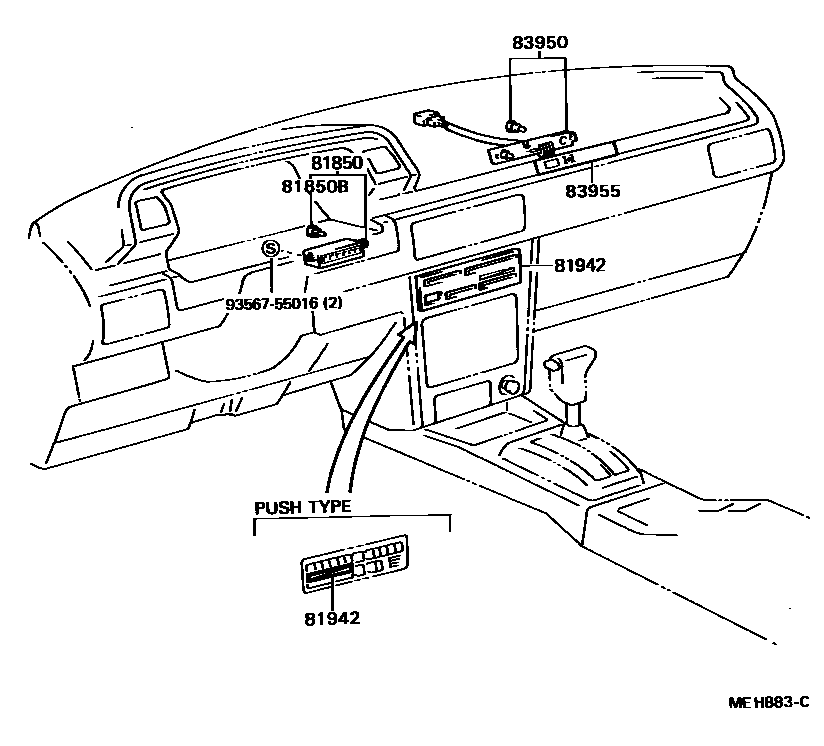

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-32070iSV21..RHD..4FC198610-198808

sub81850-32071

main81850-32080iSV2#..LHD..4FC198610-198808

sub81850-32140

main81850-32100iVZV21..4FC198802-198808

JECO

main81850-32120iVZV21..4FC198802-198808

MATSUSHITA

sub81850-32130

81850BBULB, INDICATOR LAMP

main84999-20090iSV2#..4FC198610-198710

12V 1.2W,12V 1.4W

main84999-20090iVZV21..4FC198802-198808

12V 1.2W,12V 1.2W,MATSUSHITA

main84999-20090iSV20,21..4FC198710-198808

12V 1.2W

main84999-20100iSV2#..4FC198610-198710

12V 1.2W,W(CAP),12V 1.4W,GREEN CAP

main84999-20100iSV20,21,VZV21..4FC198710-198808

12V 1.2W,W(CAP),12V 1.2W,GREEN CAP,MATSUSHITA

main84999-50180iVZV21..4FC198802-198808

12V 1.2W,JECO

main84999-50190iVZV21..4FC198802-198808

12V 1.2W,GREEN CAP,12V 1.2W GREEN CAP,JECO

81942SHEET, HEATER CONTROL NAME

main81942-32010iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE

main81942-32010iSV21..SED..RHD..4FC198610-198808

HONG KONG SPEC

main81942-32010iSV21..WG..5F..GLI..FRG198807-198807

MIAMI

main81942-32030iCV20,SV21..RHD198610-198808

sub81942-32031

main81942-32040iCV20,SV2#..LHD198610-198808

sub81942-32041

83950LAMP ASSY, TELLTALE

main83950-32010iSV25198710-198808

main83950-32020iSV25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

83955LENS, TELL TALE

main83955-32010iSV25..RHD198710-198808

main83955-32020iSV25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main83955-32030iSV25..LHD198710-198808

main83955-32040iSV25..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
