METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1W(DIGITAL SPEEDOMETER) 0004 1BULB & SOCKET 0005 1 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iSV21,25..GLI198710-198808

12V 1.4W,ORANGE CAP,12V 1.4W ORENGE CAP

main90981-11018×10iSV25..RHD;SV21,25,VZV21..(GLI,GXI)..FRG198710-198808

12V 1.2W W/O SOCKET,W(TACHOMETER)

main99132-12034iCV20,SV20..XL198710-198808

12V 3.4W,12V 3.4W W(TACOMETER)

83100GGLASS, COMBINATION METER

main83133-32370iSV25..RHD198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32410iSV21,25..LHD..GLI198710-198808

W(DIGITAL SPEEDOMETER)

main83138-32030iCV20,SV21..RHD198610-198710

main83138-32050iCV20,SV2#,VZV21..LHD198710-198808

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×5iCV20,SV20..XL198710-198808

W(TACHOMETER),12V 3.4W BULB

main83101-14040×11iSV21..SED..RHD..4FC198710-198808

12V 1.4W BULB,W(TACHOMETER)

main83101-32010iSV25,VZV21;SV21..LHD..GLI198710-198808

W(DIGITAL SPEEDOMETER),12V 1.4W BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-32320iSV21,25,VZV21..LHD..(GLI,GXI)198710-198808

W(DIGITAL SPEEDOMETER)

main83247-32340iSV25..RHD198710-198808

W(DIGITAL SPEEDOMETER)

main83247-32660iCV20..XL198610-198808

main83247-32680iSV20,21..XL,XLI198710-198808

main83247-32700iCV20..GL198710-198808

W(TACHOMETER)

main83247-32740iSV20198710-198808

W(TACHOMETER)

main83247-32860iVZV21198802-198808

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-32380iSV20198610-198710

W/TACHOMETER

main83247-32400iSV21..LHD198610-198708

W/TACHOMETER

main83247-32420iCV20..LHD..GL198710-198808

W(TACHOMETER)

main83247-32460iCV20..RHD..XL198610-198710

main83247-32500iSV2#..XL,XLI198610-198710

main83247-32520iCV20..LHD..XL198610-198808

main83247-32620iSV21..RHD198610-198708

W/TACHOMETER

main83247-32640iCV20..RHD..XL198710-198808

W(TACHOMETER)

main83247-32840iSV21..RHD198708-198710

W(TACHOMETER)

main83247-32860iVZV21198802

main83247-3H290iSV21..XLI198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

83109BULB, COMBINATION METER, NO.2

main83109-20030×3iSV25,VZV21;SV21..LHD..GLI198710-198808

12V 1.4W,BLUE CAP

main83109-24020×4iCV20,SV2#198610-198710

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-32460iCV20,SV2#..LHD..(XL,XLI)198610-198710

main83110-32470iCV20,SV20..LHD..XL198710-198808

W(TACHOMETER)

main83110-32480iCV20..RHD..GL198610-198710

KM & MILE

main83110-32490iCV20..RHD..XL198610-198710

KM & MILE

main83110-32500iSV21..SED..RHD..4FC198710-198808

KM

main83110-32540iVZV21198802-198808

83132CASE, COMBINATION METER

main83132-32020iSV25..RHD198710-198808

W(DIGITAL SPEEDOMETER)

main83132-32060iSV21,25,VZV21..LHD..(GLI,GXI)198710-198808

W(DIGITAL SPEEDOMETER)

main83132-32100iCV20..RHD..XL198710-198808

main83132-32140iSV21..XLI198610-198710

main83132-32160iSV20198610-198808

main83132-32180iCV20..LHD..XL198610-198808

main83132-32260iSV21..RHD198610-198710

main83132-32280iCV20..RHD..XL198710-198808

W(TACHOMETER)

main83132-32320iSV2#..LHD198610-198710

W/TACHOMETER

main83132-32340iCV20..LHD..GL198710-198808

W(TACHOMETER)

main83132-32480iSV21..XLI198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

83133PLATE, COMBINATION METER, NO.1

main83133-32330iSV25,VZV21;SV21..LHD..GLI198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32510iCV20..RHD..XL198710-198808

W(TACHOMETER)

main83133-32530iCV20..RHD..XL198710-198808

main83133-32550iCV20,SV20,21..LHD..(XL,XLI)198710-198808

main83133-32570iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

W(TACHOMETER)

83133APLATE, COMBINATION METER, NO.2

main83133-32470iSV21,25,VZV21..LHD..(GLI,GXI)198710-198808

W(DIGITAL SPEEDOMETER)

main83133-32590iCV20,SV21,25..RHD198710-198808

main83133-32610iCV20,SV2#,VZV21..LHD198710-198808

main83133-32630iSV25..RHD198710-198808

W(DIGITAL SPEEDOMETER)

83310GAGE ASSY, FUEL RECEIVER

main83243-32310iCV20..RHD..XL198610-198710

main83243-32370iSV20,21..(XL,XLI)..EUG198710-198808

main83243-32390iCV20..LHD..XL198610-198808

main83243-32430iCV20..RHD..XL198710-198808

W(TACHOMETER)

main83243-32490iCV20,SV20..LHD..XL198710-198808

W(TACHOMETER)

main83243-32510iSV21..FRG198610-198710

W/TACHOMETER

main83243-32530iSV21..XLI..FRG198610-198808

main83243-32570iSV21,25..RHD198710-198808

main83243-32630iSV21,25..LHD..GLI..EUG198710-198808

W(TACHOMETER)

main83243-32650iSV21..XLI..FRG198710-198808

W(TACHOMETER)

9009900153

main90099-00153

9009900929

main90099-00929

9009900939

main90099-00939

9354014020

main93540-14020

9356755016

main93567-55016

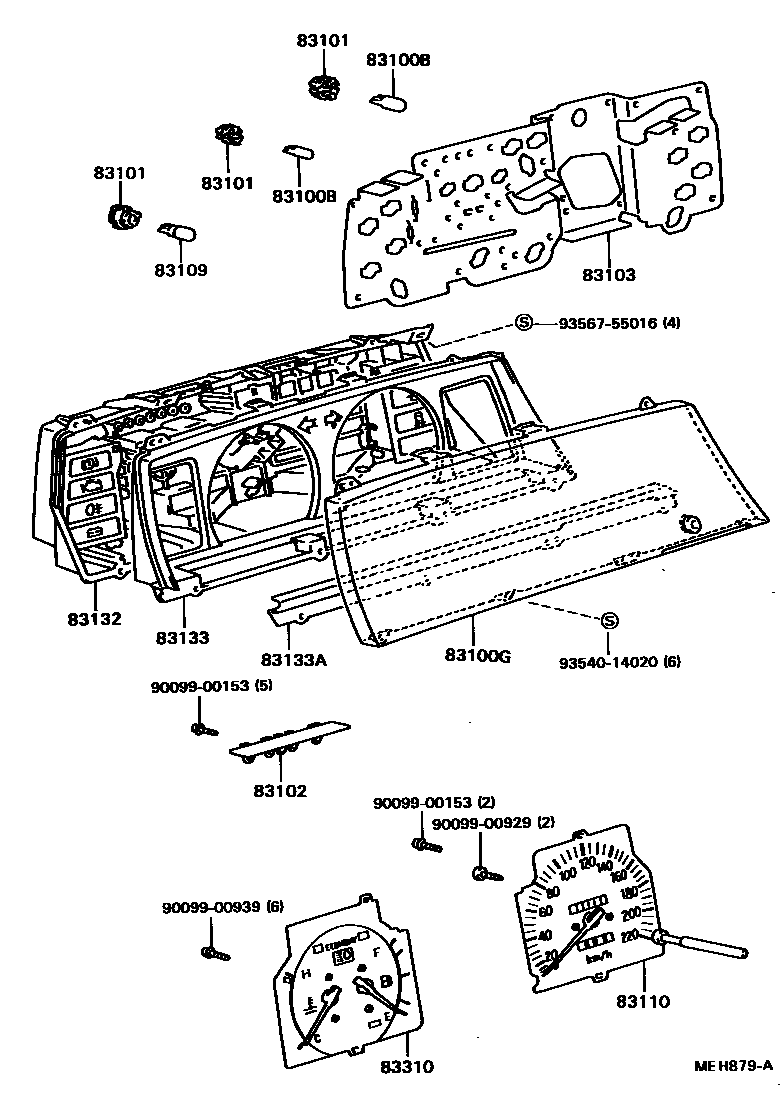

16 parts on this diagram · 7 diagrams in section
