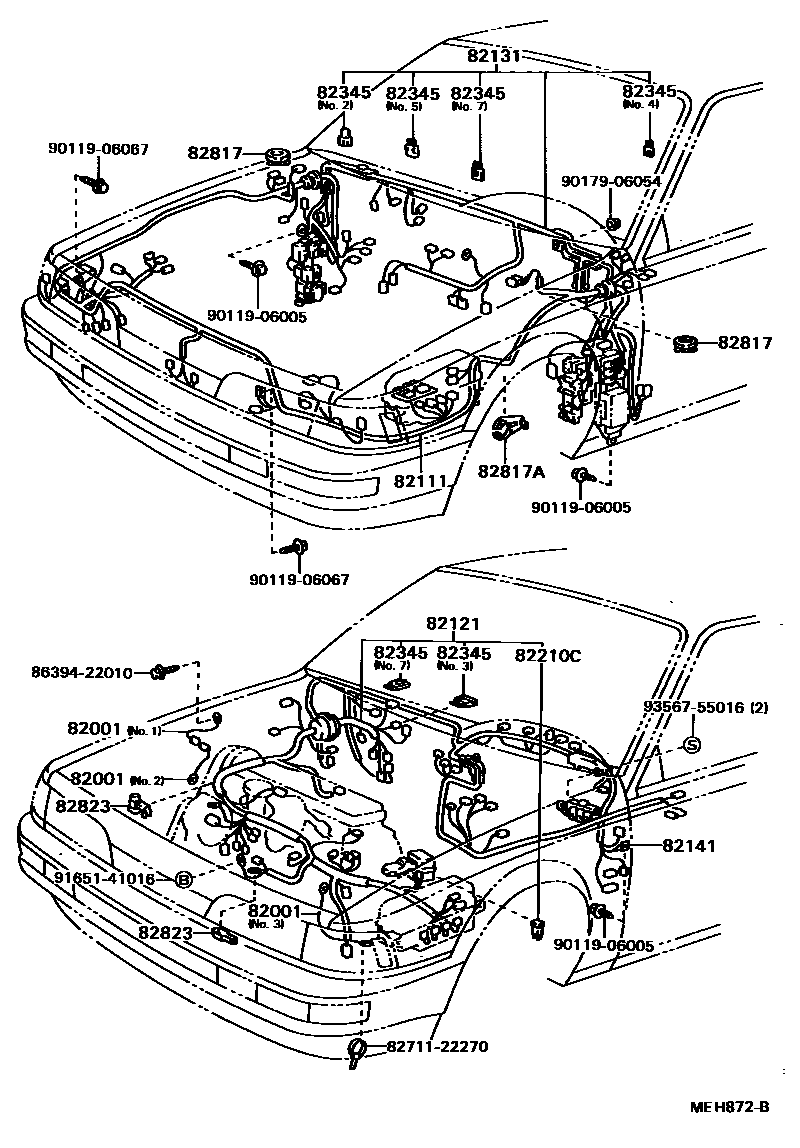

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.3
NO.2
NO.1
NO.2
NO.2
NO.1
82111WIRE, ENGINE ROOM MAIN
sub82111-32092
W(CRUISE CONTROL)
sub82111-32102
sub82111-32111
W(CRUISE CONTROL)
sub82111-32121
UNITED KINGDOM SPEC
U.K.SPEC OR U.K.SPEC & W(CRUISE CONTROL)
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
sub82111-32201
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM)
W(*66) OR W(*66 & *CRC)
W(ANTI-LOCK BRAKE SYSTEM)
W(*66) OR W(*66 & *CRC)
U.K.SPEC & W(*66) OR U.K.SPEC & W(*66 & *CRC)
U.K.SPEC & W(ANTI-LOCK BRAKE SYSTEM)
82121WIRE, ENGINE
82131WIRE, COWL
MIAMI
sub82131-3H242
W/*PW OR *CRC
W(POWER WINDOW & CRUISE CONTROL)
W(POWER WINDOW)
W(POWER WINDOW) OR W(CRUISE CONTROL)
SWEDEN SPEC
FINLAND OR NORWAY SPEC
SWEDEN OR NORWAY SPEC
FINLAND OR NORWAY SPEC
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
HONG KONG SPEC
HONG KONG SPEC
SWEDEN OR FINLAND OR NORWAY SPEC
MIAMI---W(*PW) OR W(*CRC) OR W(*PW & *CRC)
FINLAND WHITE PACKAGE
82141WIRE, INSTRUMENT PANEL
W/*DS
W/*DS
W(DIGITAL SPEEDOMETER)
W(DIGITAL SPEEDOMETER)
W/*DS
W/*DS
W(DIGITAL SPEEDOMETER)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
30A,TERM.:FEMALE,PNK,30A
40A,TERM.:FEMALE,GRN,40A
40A,TERM.:FEMALE,GRN
80A,TERM.:MALE,BLK,80A
80A,TERM.:MALE,BLK
82345DIODE
COWL WIER,NO.1
COWL WIRE,NO.1,ENGLAND SPEC
COWL WIRE,NO.2
FLOOR,NO,2
ENGINE WIRE,NO.3
COWL WIRE,NO.4
ENGINE WIRE,NO.5
ENGINE WIRE,NO.6
ENGINE WIRE,NO.7
COWL WIRE,NO.7
FLOOR,NO,7
HONG KONG SPEC,NO.7
ENGINE WIRE,NO.7,ENGLAND SPEC
COWL WIRE,NO.7,ENGLAND SPEC
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82823CAP, TERMINAL, NO.1
ST
STARTER
ALTERNATOR
ALTERNATOR
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
8639422010
main86394-22010
9011906005
main90119-06005
9011906067
main90119-06067
9017906054
main90179-06054
9165141016
main91651-41016
9356755016
main93567-55016
17 parts on this diagram · 11 diagrams in section
