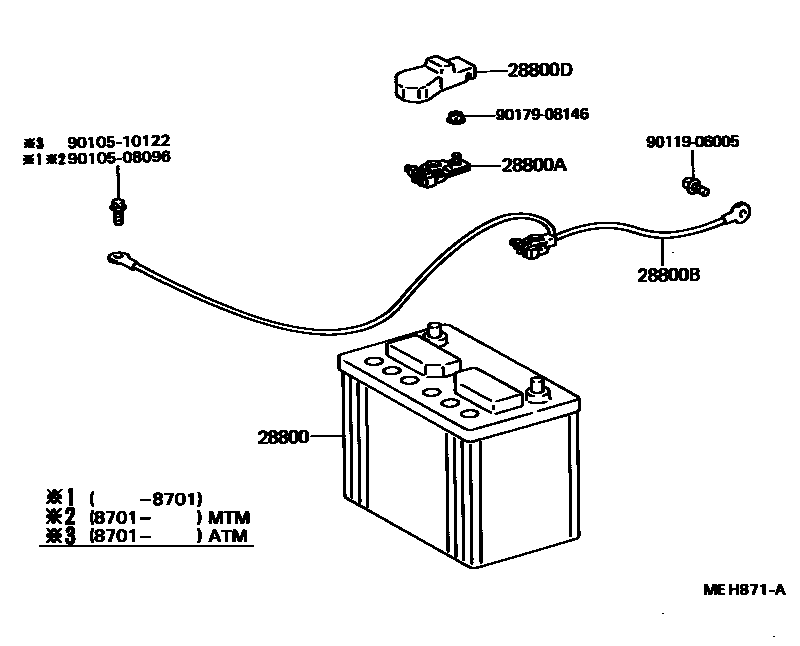

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i1S,3SFE..SV2#..LHD198710-198808

55D23L

sub28800-42030

main28800-15050i1S,3SFE..SV2#198703-198710

55D23L,55D23L-MF

sub28800-42030

main28800-31031i1S,3SFE..SV2#198610-198710

32C24L,32C24L

sub28800-31021

main28800-31031i1S,3SFE..SV2#198710-198808

32C24L

sub28800-31021

main28800-31200i1S,3SFE..SV2#198610-198703

50D20L,50D20L-MF

main28800-54200i2CT..CV20198610-198710

80D26L,80D26L-MF

sub28800-64130

main28800-54200i2CT..CV20198710-198808

80D26L

sub28800-64130

main28800-64070i2CT..CV20..RHD198710-198808

95D31L

sub28800-64180

main28800-64070i2CT..CV20198610-198710

95D31L,95D31L-MF

sub28800-64180

28800ATERMINAL, BATTERY POSITIVE

main90982-05033i2CT,1S,3SFE..CV20,SV2#198610-198808

28800BCABLE, BATTERY TO GROUND

main82123-32050i1S,3SFE..SV2#198610-198701

sub82123-32051

main82123-32051i1S,3SFE..SV2#198701-198808

main82123-32060i2CT..CV20198610-198701

sub82123-32061

main82123-32061i2CT..CV20198701-198808

main82123-32100i2VZFE..VZV21198802-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16010i2CT,1S,3SFE..CV20,SV2#198610-198808

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
