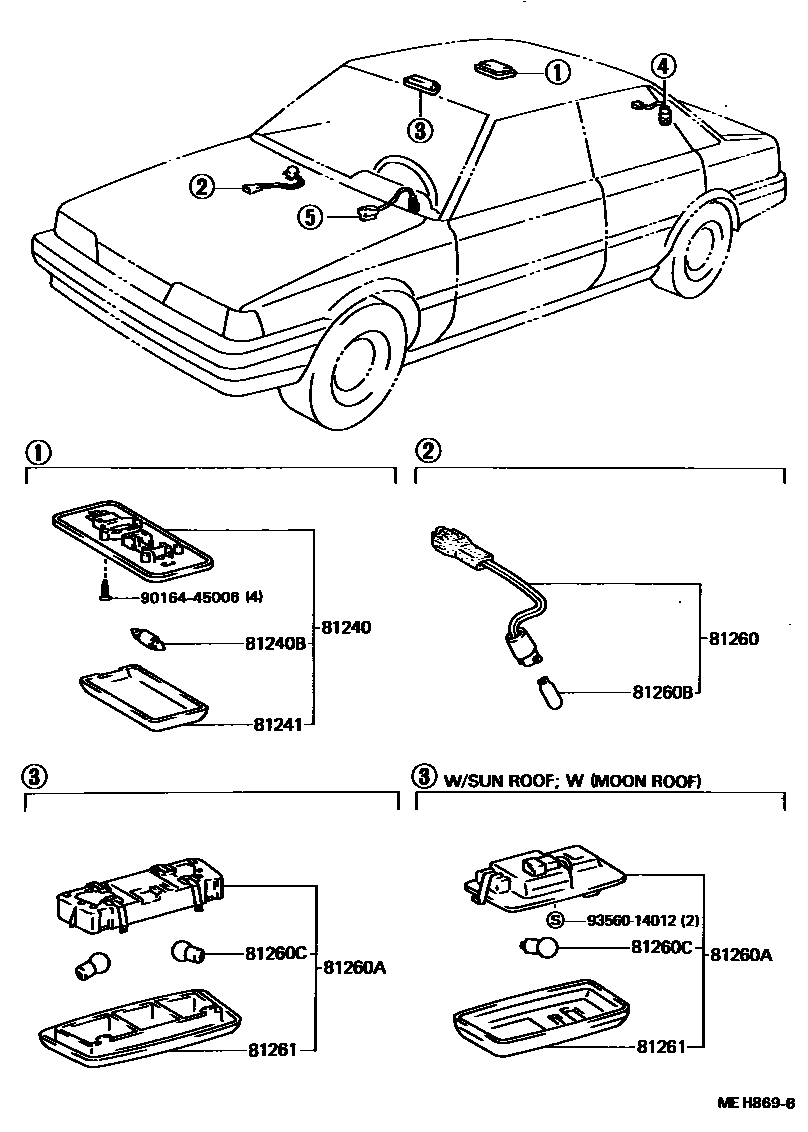

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-22081-16iCV20,SV2#198610-198710

BROWN,BROWN,TRIM3#,4#

main81240-22081-23iCV20,SV2#198610-198710

GRAY,GRAY,TRIM1#,8#

main81240-22081-35iCV20,SV2#,VZV21198710-198808

DARK BEIGE,TRIM3#,4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iCV20,SV2#198610-198710

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iCV20,SV2#,VZV21198710-198808

81260LAMP ASSY, GLOVE BOX

main81260-32060iCV20,SV2#198610-198710

81260ALAMP ASSY, MAP

main81260-32040-03iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

LIGHT GRAY,TRIM1#,8#

main81260-32040-15iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

LIGHT BEIGE,TRIM3#,4#

main81260-32050-03iCV20,SV2#198708-198710

W/*SNR,GRAY,LIGHT GRAY,TRIM1#,8#

main81260-32050-05iCV20,SV2#..SED198610-198708

W/*SNR,BEIGE,LIGHT BEIGE,TRIM3#,4#

81260BBULB(FOR GLOVE BOX)

main90981-11018iCV20,SV2#,VZV21198710-198808

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2iCV20,SV21..GL,GLI198610-198710

12V 8W,12V 8W

main90981-12014iCV20,SV2#198708-198710

12V 10W,W/*SNR,12V 10W

81261LENS AND COVER, MAP LAMP

main81261-32040-03iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

LIGHT GRAY,TRIM1#,8#

main81261-32040-15iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

LIGHT BEIGE,TRIM3#,4#

main81261-32050-03iCV20,SV2#198708-198710

W/*SNR,GRAY,LIGHT GRAY,TRIM1#,8#

main81261-32050-05iCV20,SV2#,VZV21198710-198808

W(MOON ROOF),LIGHT BEIGE,TRIM3#,4#

9016445006

main90164-45006

9356014012

main93560-14012

10 parts on this diagram · 2 diagrams in section
