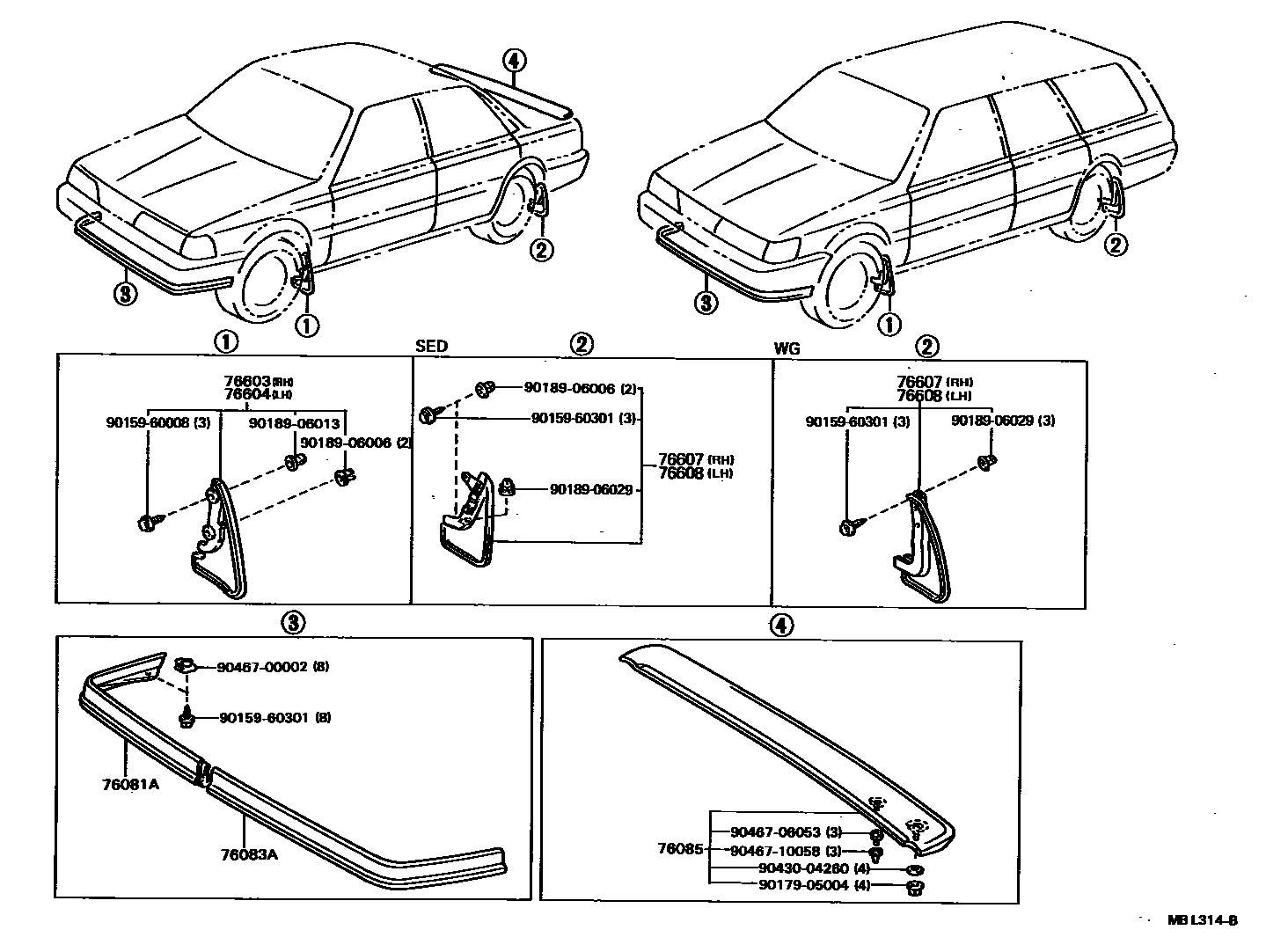

MUDGUARD & SPOILER

76081ASPOILER SUB-ASSY, FRONT RH

main76081-32010iCV20,SV2#198610-198808

76083ASPOILER SUB-ASSY, FRONT LH

main76083-32010iCV20,SV2#198610-198808

76085SPOILER SUB-ASSY, REAR

main76085-32030-02iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

DARK RED MICA,3H3

main76085-32030-02iCV20,SV21..SED..(GL,GLI)198610-198710

DARK RED MICA,DARK RED MICA,3H3

main76085-32030-03iCV20,SV21..SED..(GL,GLI)198610-198710

GRAY-M,GRAY METALLIC,167 ,20C

main76085-32030-03iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

GRAY METALLIC,167

main76085-32030-04iCV20,SV21..SED..(GL,GLI)198610-198710

BLUE-M,BLUE METALLIC,8E3 ,21C

main76085-32030-04iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

BLUE METALLIC,21C ,8E3

main76085-32030-05iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

LIGHT BEIGE,4G8

main76085-32030-05iCV20,SV21..SED..(GL,GLI)198610-198710

LIGHT BEIGE,BEIGE M,4G8

main76085-32030-06iCV20,SV21..SED..(GL,GLI)198610-198710

BROWN-M,BROWN METALLIC,4H2

main76085-32030-07iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

LT GREEN M,6J6

main76085-32030-07iCV20,SV21..SED..(GL,GLI)198610-198710

LIGHT GREEN-M,LT GREEN M,6J6

main76085-32030-08iCV20,SV21..SED..(GL,GLI)198610-198710

SUPER WHITE,SUPER WHITE 2,040

main76085-32030-08iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

SUPER WHITE 2,040

main76085-32030-12iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

RED MICA,3H4

main76085-32030-13iCV20,SV21..SED..(GL,GLI)198610-198710

SILVER-M,SILVER METALLIC,164

main76085-32030-13iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

SILVER METALLIC,164

main76085-32030-14iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

LIGHT BLUE,8D8

main76085-32030-14iCV20,SV21..SED..(GL,GLI)198610-198710

LIGHT BLUE,LIGHT BLUE,8D8

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39095iCV20,SV2#198610-198808

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39095iCV20,SV2#198610-198808

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39125iCV20,SV2#,VZV21..SED198610-198808

main76625-39145iCV20,SV20,21..WG198710-198808

W(URETHANE BUMPER)

main76625-39145iCV20,SV2#..WG198610-198710

W/*UB

main76625-39155iCV20,SV2#..WG198610-198710

W/P.P. BUMPER

main76625-39155iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER)

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39115iCV20,SV2#..SED198610-198808

main76626-39135iCV20,SV2#..WG198610-198710

W/*UB

main76626-39135iCV20,SV20,21..WG198710-198808

W(URETHANE BUMPER)

main76626-39145iCV20,SV2#..WG198610-198710

W/P.P. BUMPER

main76626-39145iCV20,SV20,21..WG198710-198808

W(P.P. BUMPER)

9015960008

main90159-60008

9015960301

main90159-60301

9017905004

main90179-05004

9018906006

main90189-06006

9018906013

main90189-06013

9018906029

main90189-06029

9043004260

main90430-04260

9046700002

main90467-00002

9046706053

main90467-06053

9046710058

main90467-10058

17 parts on this diagram · 1 diagram in section
