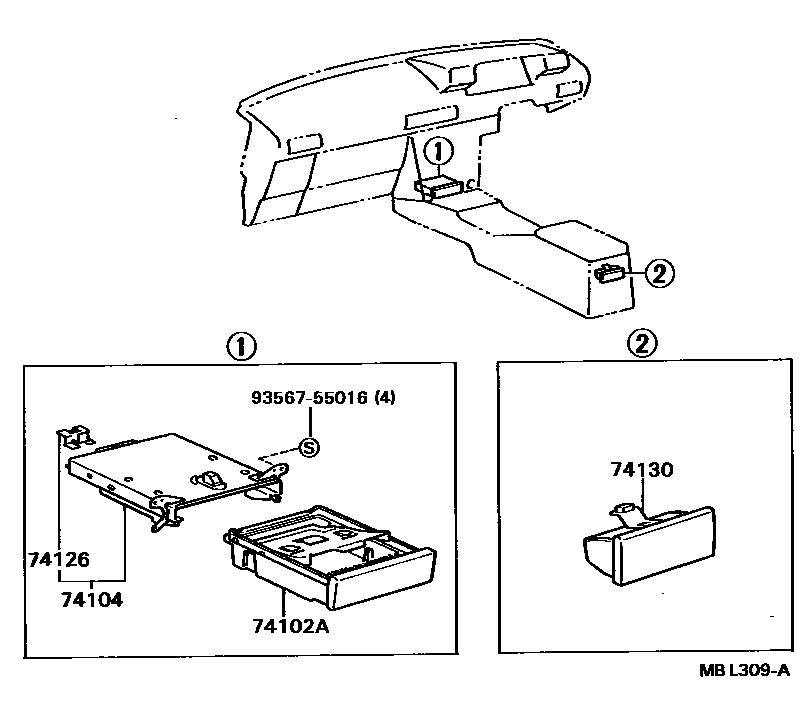

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-32030iCV20,SV2#198610-198808

main74102-32040iVZV21198802-198808

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-32030iCV20,SV2#198610-198808

main74104-32040iVZV21198802-198808

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iCV20,SV2#,VZV21198710-198808

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-02iCV20,SV21,25..RHD198710-198807

MAROON,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-03iCV20,SV2#,VZV21..LHD198710-198807

MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-04iCV20,SV2#198610-198710

BLUE,DARK BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-04iCV20,SV2#,VZV21198710-198807

DARK BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-05iCV20,SV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-05iCV20,SV2#198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

9356755016

main93567-55016

5 parts on this diagram · 1 diagram in section
