E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

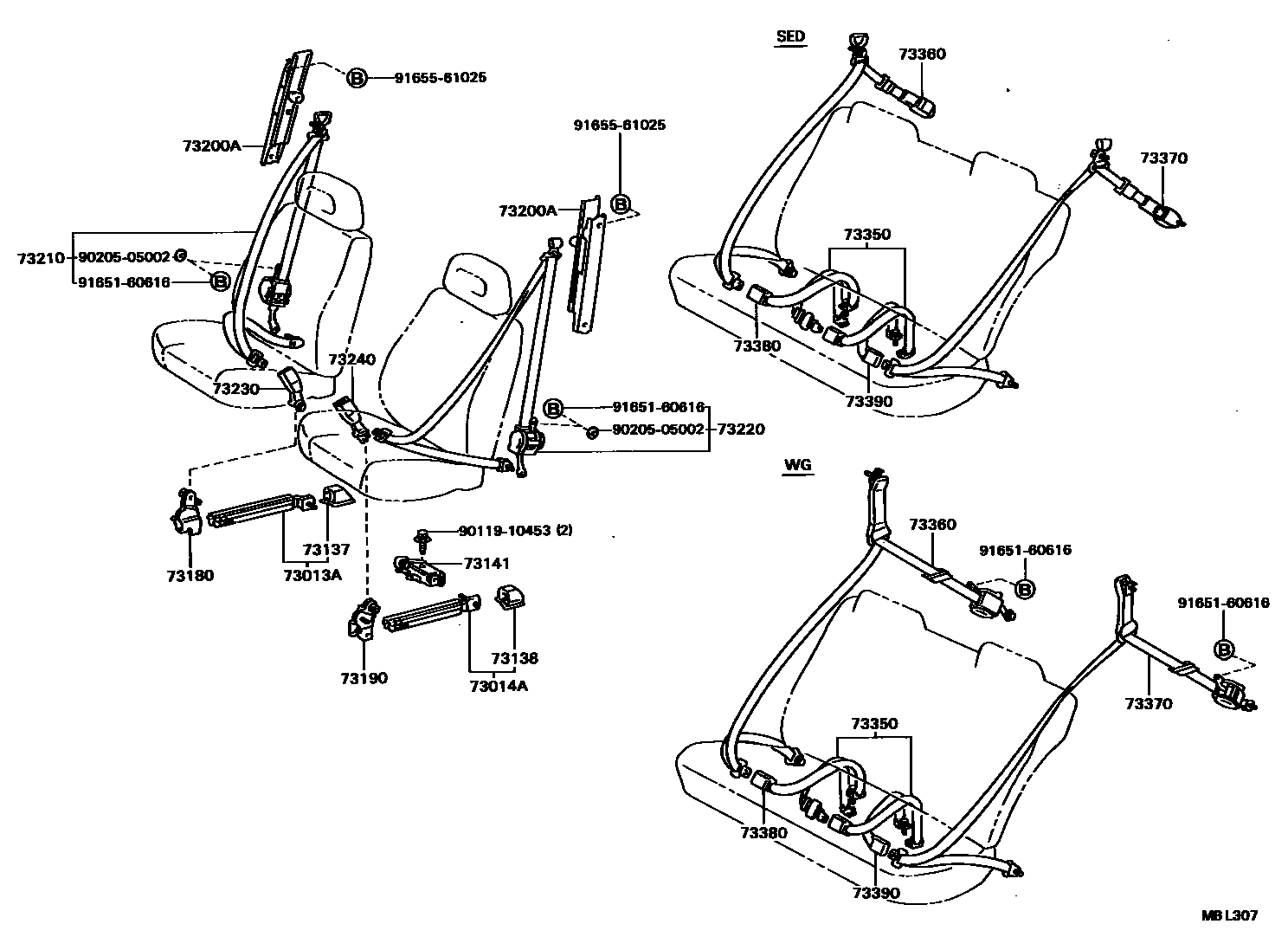

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-32030-02i198710-198808
MAROON,TRIM3#
main73013-32030-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73013-32030-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73013-32030-05i198710-198808
DARK BEIGE,TRIM4#
main73013-32040i198710-198808
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-32030-02i198610-198710
MAROON,MAROON,TRIM3#
main73014-32030-03i198710-198808
MEDIUM GRAY,TRIM1#
main73014-32030-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73014-32030-05i198710-198808
DARK BEIGE,TRIM4#
main73014-32040i198710-198808
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-32030-02i198710-198808
MAROON,TRIM3#
main73137-32030-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73137-32030-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73137-32030-05i198710-198808
DARK BEIGE,TRIM4#
main73137-32040-02i198710-198808
MAROON,TRIM3#
main73137-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
main73137-32040-04i198710-198808
DARK BLUE,TRIM8#
main73137-32040-05i198710-198808
DARK BEIGE,TRIM4#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-32030-02i198710-198808
MAROON,TRIM3#
main73138-32030-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73138-32030-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73138-32030-05i198710-198808
DARK BEIGE,TRIM4#
main73138-32040-02i198710-198808
MAROON,TRIM3#
main73138-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
main73138-32040-04i198710-198808
DARK BLUE,TRIM8#
main73138-32040-05i198710-198808
DARK BEIGE,TRIM4#
73141BASE, FRONT SEAT BELT ANCHOR
main73141-32040i198610-198710
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-32020i198610-198710
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-32020i198610-198710
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-32010-02×2i198610-198710
MAROON,MAROON,TRIM3#
main73200-32010-03×2i198710-198808
MEDIUM GRAY,TRIM1#
main73200-32010-04×2i198610-198710
BLUE,DARK BLUE,TRIM8#
main73200-32010-05×2i198610-198710
BEIGE,DARK BEIGE,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-32140-02i198710-198808
MAROON,TRIM3#
main73210-32140-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73210-32140-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73210-32140-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-32140-02i198610-198710
MAROON,MAROON,TRIM3#
main73220-32140-03i198710-198808
MEDIUM GRAY,TRIM1#
main73220-32140-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73220-32140-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-32120-02i198610-198710
MAROON,MAROON,TRIM3#
main73230-32120-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73230-32120-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73230-32120-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main73230-32121-02i198710-198808
MAROON,TRIM3#
main73230-32121-03i198710-198808
MIDIUM GRAY,TRIM1#
main73230-32121-04i198710-198808
DARK BLUE,TRIM8#
main73230-32121-05i198710-198808
DARK BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-32120-02i198610-198710
MAROON,MAROON,TRIM3#
main73230-32120-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73230-32120-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73230-32120-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main73230-32121-02i198710-198808
MAROON,TRIM3#
main73230-32121-03i198710-198808
MIDIUM GRAY,TRIM1#
main73230-32121-04i198710-198808
DARK BLUE,TRIM8#
main73230-32121-05i198710-198808
DARK BEIGE,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-32160-02i198610-198710
MAROON,MAROON,TRIM3#
main73350-32160-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73350-32160-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73350-32160-05i198710-198808
DARK BEIGE,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-32160-02i198610-198710
MAROON,MAROON,TRIM3#
main73360-32160-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73360-32160-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73360-32160-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main73360-32161-02i198710-198808
MAROON,TRIM3#
main73360-32161-03i198710-198808
MIDIUM GRAY,TRIM1#
main73360-32161-04i198710-198808
DARK BLUE,TRIM8#
main73360-32161-05i198710-198808
DARK BEIGE,TRIM4#
main73360-32170-02i198610-198710
MAROON,MAROON,TRIM3#
main73360-32170-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73360-32170-04i198710-198808
DARK BLUE,TRIM8#
main73360-32170-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-32140-02i198610-198710
MAROON,MAROON,TRIM3#
main73370-32140-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73370-32140-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main73370-32140-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main73370-32141-02i198710-198808
MAROON,TRIM3#
main73370-32141-03i198710-198808
MIDIUM GRAY,TRIM1#
main73370-32141-04i198710-198808
DARK BLUE,TRIM8#
main73370-32141-05i198710-198808
DARK BEIGE,TRIM4#
main73370-32150-02i198710-198808
MAROON,TRIM3#
main73370-32150-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main73370-32150-04i198710-198808
DARK BLUE,TRIM8#
main73370-32150-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-32140-02i198610-198708
MAROON,MAROON,TRIM3#
main73380-32140-03i198610-198708
GRAY,MEDIUM GRAY,TRIM1#
main73380-32140-04i198610-198708
BLUE,DARK BLUE,TRIM8#
main73380-32140-05i198610-198708
BEIGE,DARK BEIGE,TRIM4#
main73380-32141-02i198708-198710
MAROON,MAROON,TRIM3#
main73380-32141-03i198801-198808
MEDIUM GRAY,TRIM1#
main73380-32141-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main73380-32141-05i198801-198808
DARK BEIGE,TRIM4#
main73380-32160-02i198710-198808
MAROON,TRIM3#
main73380-32160-03i198710-198808
MEDIUM GRAY,TRIM1#
main73380-32160-04i198710-198808
DARK BLUE,TRIM8#
main73380-32160-05i198710-198808
DARK BEIGE,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-32140-02i198610-198708
MAROON,MAROON,TRIM3#
main73380-32140-03i198610-198708
GRAY,MEDIUM GRAY,TRIM1#
main73380-32140-04i198610-198708
BLUE,DARK BLUE,TRIM8#
main73380-32140-05i198610-198708
BEIGE,DARK BEIGE,TRIM4#
main73380-32141-02i198801-198808
MAROON,TRIM3#
main73380-32141-03i198708-198710
GRAY,MEDIUM GRAY,TRIM1#
main73380-32141-04i198708-198710
BLUE,DARK BLUE,TRIM8#
main73380-32141-05i198708-198710
BEIGE,DARK BEIGE,TRIM4#
main73380-32160-02i198710-198808
MAROON,TRIM3#
main73380-32160-03i198710-198808
MEDIUM GRAY,TRIM1#
main73380-32160-04i198710-198808
DARK BLUE,TRIM8#
main73380-32160-05i198710-198808
DARK BEIGE,TRIM4#
9011910453
main90119-10453
9020505002
main90205-05002
9165160616
main91651-60616
9165561025
main91655-61025

21 parts on this diagram · 1 diagram in section
