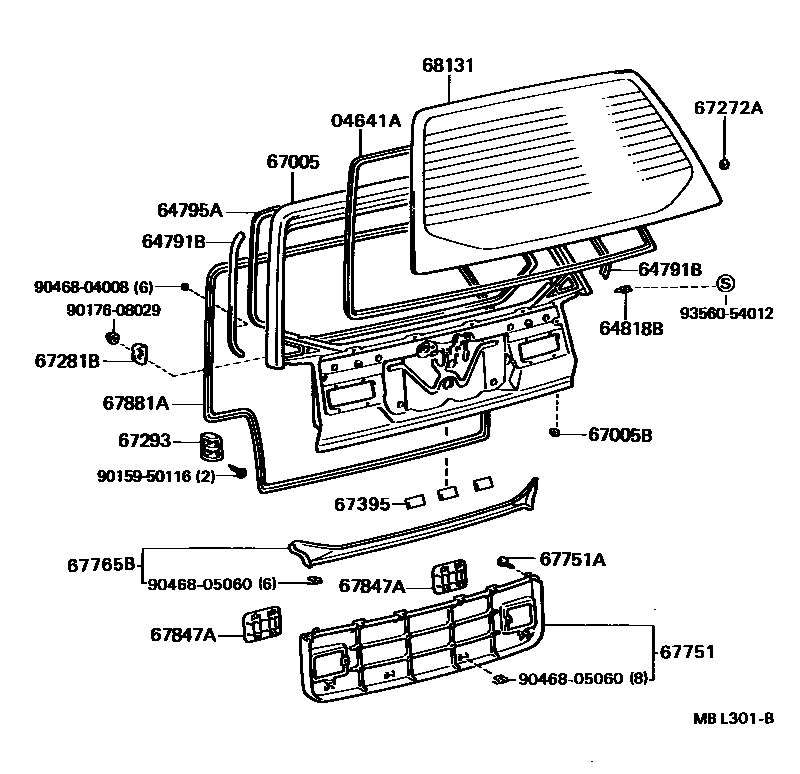

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iCV20,SV20,21..WG198610-198808

64791BCOVER, BACK DOOR TRIM

main64791-32010-02iCV20,SV21..WG..RHD198610-198710

RH,MAROON,MAROON,TRIM3#

main64791-32010-02iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#,RH

main64791-32010-03iCV20,SV2#..WG..LHD198610-198710

RH,GRAY,MEDIUM GRAY,TRIM1#

main64791-32010-03iCV20,SV20,21..WG..LHD198710-198808

MEDIUM GRAY,TRIM1#,RH

main64791-32010-04iCV20,SV20,21..WG198710-198808

DARK BLUE,TRIM8#,RH

main64791-32010-04iCV20,SV2#..WG198610-198710

RH,BLUE,DARK BLUE,TRIM8#

main64791-32010-05iCV20,SV2#..WG198610-198710

RH,BEIGE,DARK BEIGE,TRIM4#

main64791-32010-05iCV20,SV20,21..WG198710-198808

DARK BEIGE,TRIM4#,RH

main64792-32010-02iCV20,SV21..WG..RHD198610-198710

LH,MAROON,MAROON,TRIM3#

main64792-32010-02iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#,LH

main64792-32010-03iCV20,SV20,21..WG..LHD198710-198808

MEDIUM GRAY,TRIM1#,LH

main64792-32010-03iCV20,SV2#..WG..LHD198610-198710

LH,GRAY,MEDIUM GRAY,TRIM1#

main64792-32010-04iCV20,SV20,21..WG198710-198808

DARK BLUE,TRIM8#,LH

main64792-32010-04iCV20,SV2#..WG198610-198710

LH,BLUE,DARK BLUE,TRIM8#

main64792-32010-05iCV20,SV2#..WG198610-198710

LH,BEIGE,DARK BEIGE,TRIM4#

main64792-32010-05iCV20,SV20,21..WG198710-198808

DARK BEIGE,TRIM4#,LH

64795ATRIM, BACK WINDOW OPENING

main64795-32010-02iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#

sub64795-32010

main64795-32010-02iCV20,SV21..WG..RHD198610-198710

MAROON,MAROON,TRIM3#

sub64795-32010

main64795-32010-03iCV20,SV20,21..WG..LHD198710-198808

MEDIUM GRAY,TRIM1#

sub64795-32010

main64795-32010-03iCV20,SV2#..WG..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub64795-32010

main64795-32010-04iCV20,SV20,21..WG198710-198808

DARK BLUE,TRIM8#

sub64795-32010

main64795-32010-04iCV20,SV2#..WG198610-198710

BLUE,DARK BLUE,TRIM8#

sub64795-32010

main64795-32010-05iCV20,SV2#..WG198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub64795-32010

main64795-32010-05iCV20,SV20,21..WG198710-198808

DARK BEIGE,TRIM4#

sub64795-32010

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-32010iCV20,SV2#..WG198610-198808

67005PANEL SUB-ASSY, BACK DOOR

main67005-32160iSV21..WG..GLI..FRG198610-198710

*SWZ

main67005-32160iSV21..WG..FRG198710-198808

SWITZERLAND SPEC

main67005-32170iCV20,SV20,21..WG198610-198808

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-11003iCV20,SV20,21..WG198610-198808

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-32010iCV20,SV2#..WG198610-198808

67281BSTOPPER, BACK DOOR, LOWER

main67281-32020iCV20,SV2#..WG198610-198808

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-32020iCV20,SV20,21..WG198610-198808

RH

main67294-32020iCV20,SV20,21..WG198610-198808

LH

67395PROTECTOR, BACK DOOR, LOWER

main67395-32010iSV21..WG..FRG198710-198808

67751BOARD, BACK DOOR TRIM

main67750-32010-02iSV21..WG..RHD198610-198710

MAROON,MAROON,TRIM3#

sub67750-32010

main67750-32010-02iSV21..WG..RHD198710-198808

MAROON,TRIM3#

sub67750-32010

main67750-32010-03iSV21..WG..LHD..GLI198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub67750-32010

main67750-32010-04iSV21..WG..GLI198610-198710

BLUE,DARK BLUE,TRIM8#

sub67750-32010

main67750-32010-05iSV21..WG..GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub67750-32010

main67750-32010-13iSV21..WG..LHD..GLI198710-198808

MEDIUM GRAY,TRIM1#

sub67750-32010

main67750-32010-14iSV21..WG..GLI198710-198808

DARK BLUE,TRIM8#

sub67750-32010

main67750-32010-15iSV21..WG..GLI198710-198808

DARK BEIGE,TRIM4#

sub67750-32010

main67751-32010-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

sub67750-32020

main67751-32010-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

sub67750-32020

main67751-32010-03iCV20,SV2#..WG..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub67750-32020

main67751-32010-03iCV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

sub67750-32020

main67751-32010-04iCV20,SV2#..WG..(XL,XLI)198610-198710

BLUE,DARK BLUE,TRIM8#

sub67750-32020

main67751-32010-04iCV20,SV20,21..WG..(XL,XLI)198710-198808

DARK BLUE,TRIM8#

sub67750-32020

main67751-32010-05iCV20,SV20,21..WG..(XL,XLI)198710-198808

DARK BEIGE,TRIM4#

sub67750-32020

main67751-32010-05iCV20,SV2#..WG..(XL,XLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub67750-32020

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06017-22iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#

sub90467-06017

main90467-06017-22iCV20,SV21..WG..RHD198610-198710

MAROON,MAROON,TRIM3#

sub90467-06017

main90467-06017-49iCV20,SV20,21..WG198710-198808

DARK BEIGE,TRIM4#

sub90467-06017

main90467-06017-49iCV20,SV2#..WG198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub90467-06017

main90467-06017-54iCV20,SV20,21..WG198710-198808

DARK BLUE,TRIM8#

sub90467-06017

main90467-06017-54iCV20,SV2#..WG198610-198710

BLUE,DARK BLUE,TRIM8#

sub90467-06017

main90467-06017-59iCV20,SV2#..WG..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub90467-06017

main90467-06017-59iCV20,SV20,21..WG..LHD198710-198808

MEDIUM GRAY,TRIM1#

sub90467-06017

67765BCOVER, BACK DOOR TRIM, UPPER

main67765-32010-02iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#

sub67765-32010

main67765-32010-02iCV20,SV21..WG..RHD198610-198710

MAROON,MAROON,TRIM3#

sub67765-32010

main67765-32010-03iCV20,SV20,21..WG..LHD198710-198808

MEDIUM GRAY,TRIM1#

sub67765-32010

main67765-32010-03iCV20,SV2#..WG..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub67765-32010

main67765-32010-04iCV20,SV20,21..WG198710-198808

DARK BLUE,TRIM8#

sub67765-32010

main67765-32010-04iCV20,SV2#..WG198610-198710

BLUE,DARK BLUE,TRIM8#

sub67765-32010

main67765-32010-05iCV20,SV2#..WG198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub67765-32010

main67765-32010-05iCV20,SV20,21..WG198710-198808

DARK BEIGE,TRIM4#

sub67765-32010

67847ACOVER, BACK DOOR SERVICE HOLE

main67805-32010-02iSV21..WG..RHD198610-198710

RH,MAROON,MAROON,TRIM3#

sub67805-32010

main67805-32010-02iSV21..WG..RHD198710-198808

MAROON,TRIM3#,RH

sub67805-32010

main67805-32010-03iSV21..WG..LHD..GLI198610-198710

RH,GRAY,MEDIUM GRAY,TRIM1#

sub67805-32010

main67805-32010-04iSV21..WG..GLI198610-198710

RH,BLUE,DARK BLUE,TRIM8#

sub67805-32010

main67805-32010-05iSV21..WG..GLI198610-198710

RH,BEIGE,DARK BEIGE,TRIM4#

sub67805-32010

main67805-32010-13iSV21..WG..LHD..GLI198710-198808

MEDIUM GRAY,TRIM1#,RH

sub67805-32010

main67805-32010-14iSV21..WG..GLI198710-198808

DARK BLUE,TRIM8#,RH

sub67805-32010

main67805-32010-15iSV21..WG..GLI198710-198808

DARK BEIGE,TRIM4#,RH

sub67805-32010

main67806-32010-02iSV21..WG..RHD198610-198710

LH,MAROON,MAROON,TRIM3#

sub67806-32010

main67806-32010-02iSV21..WG..RHD198710-198808

MAROON,TRIM3#,LH

sub67806-32010

main67806-32010-03iSV21..WG..LHD..GLI198610-198710

LH,GRAY,MEDIUM GRAY,TRIM1#

sub67806-32010

main67806-32010-04iSV21..WG..GLI198610-198710

LH,BLUE,DARK BLUE,TRIM8#

sub67806-32010

main67806-32010-05iSV21..WG..GLI198610-198710

LH,BEIGE,DARK BEIGE,TRIM4#

sub67806-32010

main67806-32010-13iSV21..WG..LHD..GLI198710-198808

MEDIUM GRAY,TRIM1#,LH

sub67806-32010

main67806-32010-14iSV21..WG..GLI198710-198808

DARK BLUE,TRIM8#,LH

sub67806-32010

main67806-32010-15iSV21..WG..GLI198710-198808

DARK BEIGE,TRIM4#,LH

sub67806-32010

main67847-32020-02iCV20..RHD..XL198610-198710

RH,MAROON,MAROON,TRIM3#

sub67847-32030

main67847-32020-02iCV20..RHD..XL198710-198803

MAROON,TRIM3#,RH

sub67847-32030

main67847-32020-03iCV20,SV2#..WG..LHD..(XL,XLI)198610-198710

RH,GRAY,MEDIUM GRAY,TRIM1#

sub67847-32030

main67847-32020-03iCV20,SV20,21..WG..LHD..(XL,XLI)198710-198803

MEDIUM GRAY,TRIM1#,RH

sub67847-32030

main67847-32020-04iCV20,SV20,21..WG..(XL,XLI)198710-198803

DARK BLUE,TRIM8#,RH

sub67847-32030

main67847-32020-04iCV20,SV2#..WG..(XL,XLI)198610-198710

RH,BLUE,DARK BLUE,TRIM8#

sub67847-32030

main67847-32020-05iCV20,SV2#..WG..(XL,XLI)198610-198710

RH,BEIGE,DARK BEIGE,TRIM4#

sub67847-32030

main67847-32020-05iCV20,SV20,21..WG..(XL,XLI)198710-198803

DARK BEIGE,TRIM4#,RH

sub67847-32030

main67847-32030-03iCV20,SV20,21..WG..LHD..(XL,XLI)198803-198808

MEDIUM GRAY,TRIM1#,RH

sub67847-32030

main67847-32030-04iCV20,SV20,21..WG..(XL,XLI)198803-198808

DARK BLUE,TRIM8#,RH

sub67847-32030

main67847-32030-05iCV20,SV20,21..WG..(XL,XLI)198803-198808

DARK BEIGE,TRIM4#,RH

sub67847-32030

main67848-32020-02iCV20..RHD..XL198710-198803

MAROON,TRIM3#,LH

sub67848-32030

main67848-32020-02iCV20..RHD..XL198610-198710

LH,MAROON,MAROON,TRIM3#

sub67848-32030

main67848-32020-03iCV20,SV20,21..WG..LHD..(XL,XLI)198710-198803

MEDIUM GRAY,TRIM1#,LH

sub67848-32030

main67848-32020-03iCV20,SV2#..WG..LHD..(XL,XLI)198610-198710

LH,GRAY,MEDIUM GRAY,TRIM1#

sub67848-32030

main67848-32020-04iCV20,SV20,21..WG..(XL,XLI)198710-198803

DARK BLUE,TRIM8#,LH

sub67848-32030

main67848-32020-04iCV20,SV2#..WG..(XL,XLI)198610-198710

LH,BLUE,DARK BLUE,TRIM8#

sub67848-32030

main67848-32020-05iCV20,SV20,21..WG..(XL,XLI)198710-198803

DARK BEIGE,TRIM4#,LH

sub67848-32030

main67848-32020-05iCV20,SV2#..WG..(XL,XLI)198610-198710

LH,BEIGE,DARK BEIGE,TRIM4#

sub67848-32030

main67848-32030-02iCV20..RHD..XL198803-198808

MAROON,TRIM3#,LH

sub67848-32030

main67848-32030-03iCV20,SV20,21..WG..LHD..(XL,XLI)198803-198808

MEDIUM GRAY,TRIM1#,LH

sub67848-32030

main67848-32030-04iCV20,SV20,21..WG..(XL,XLI)198803-198808

DARK BLUE,TRIM8#,LH

sub67848-32030

main67848-32030-05iCV20,SV20,21..WG..(XL,XLI)198803-198808

DARK BEIGE,TRIM4#,LH

sub67848-32030

67881AWEATHERSTRIP, BACK DOOR

main67881-32030iCV20,SV2#..WG198610-198808

68131GLASS, BACK DOOR

main68131-32080iCV20,SV2#..WG198610-198710

*EHTT,T=3.5,*EHTT,T=3.5

main68131-32080iCV20,SV20,21..WG198710-198808

*EHTT,T=3.5

main68131-32090iCV20,SV2#..WG..LHD198610-198710

*EHTT,T=3.5,COLD SPEC,*EHTT,T=3.5

main68131-32090iCV20,SV20,21..WG..LHD198710-198808

*EHTT,T=3.5,COLD SPEC

main68131-32110iSV21..WG..LHD..GLI198710-198808

*EHTT,T=3.5,BRONZE

main68131-32110iSV21..WG..GLI198610-198710

*EHTT,T=3.5,BRONZE,BRONZE,*EHTT,T=3.5

9015950116

main90159-50116

9017608029

main90176-08029

9046804008

main90468-04008

9046805060

main90468-05060

9356054012

main93560-54012

21 parts on this diagram · 1 diagram in section
