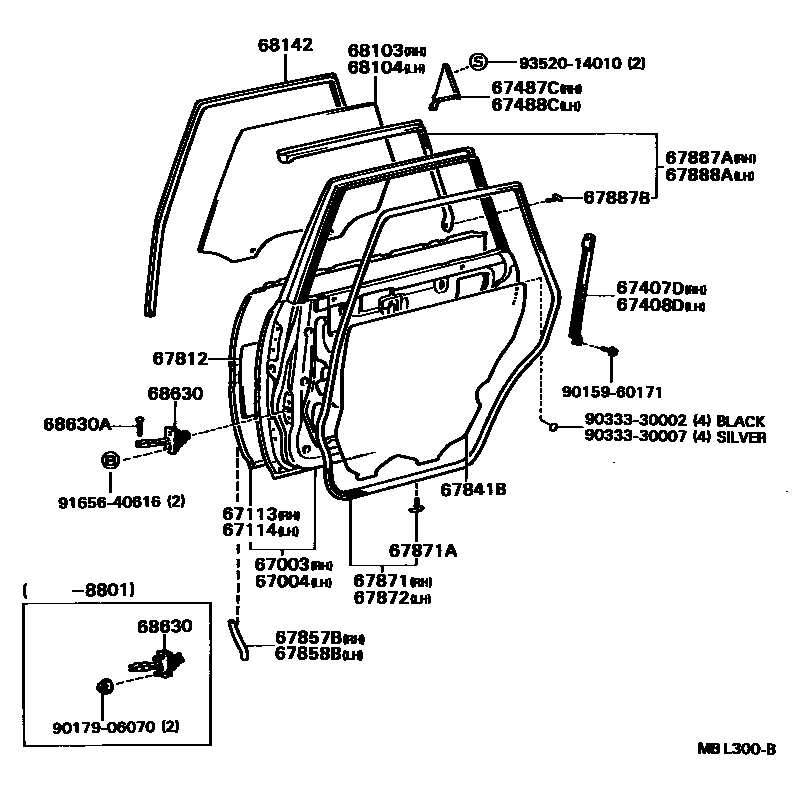

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67812PAD, REAR DOOR SILENCER
67841BCOVER, REAR DOOR SERVICE HOLE
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
RH
LH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5
*TT,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5
*TT,T=3.5,BRONZE
*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5
*TT,T=3.5,BRONZE
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5
*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5
*TT,T=3.5,BRONZE
68142RUN, REAR DOOR GLASS
RH
RH
LH
LH
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
9015960171
9017906070
9033330002
9033330007
9165640616
9352014010
29 parts on this diagram · 2 diagrams in section
