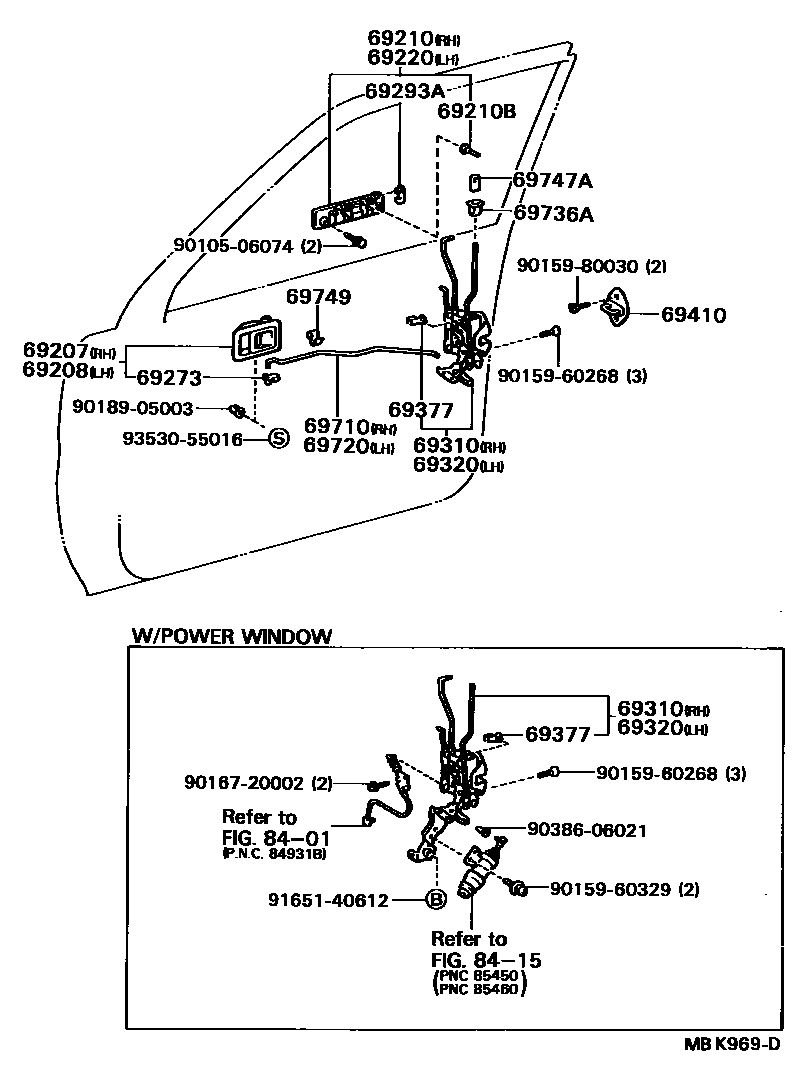

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32020-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

sub69205-32020

main69205-32020-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

sub69205-32020

main69205-32020-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

sub69205-32020

main69205-32020-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69205-32020

main69205-32020-04iCV20,SV20,21..XL,XLI198710-198808

DARK BLUE,TRIM8#

sub69205-32020

main69205-32020-04iCV20,SV2#..XL,XLI198610-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32020

main69205-32020-05iCV20,SV2#..XL,XLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32020

main69205-32020-05iCV20,SV20,21..XL,XLI198710-198808

DARK BEIGE,TRIM4#

sub69205-32020

main69205-32030-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

sub69205-32030

main69205-32030-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

sub69205-32030

main69205-32030-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69205-32030

main69205-32030-03iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

sub69205-32030

main69205-32030-04iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-05iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BEIGE,TRIM4#

sub69205-32030

main69205-32030-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32030

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32020-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

sub69206-32020

main69206-32020-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

sub69206-32020

main69206-32020-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69206-32020

main69206-32020-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

sub69206-32020

main69206-32020-04iCV20,SV20,21..XL,XLI198710-198808

DARK BLUE,TRIM8#

sub69206-32020

main69206-32020-04iCV20,SV2#..XL,XLI198610-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32020

main69206-32020-05iCV20,SV2#..XL,XLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32020

main69206-32020-05iCV20,SV20,21..XL,XLI198710-198808

DARK BEIGE,TRIM4#

sub69206-32020

main69206-32030-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

sub69206-32030

main69206-32030-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

sub69206-32030

main69206-32030-03iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

sub69206-32030

main69206-32030-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69206-32030

main69206-32030-04iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-05iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BEIGE,TRIM4#

sub69206-32030

main69206-32030-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32030iCV20,SV2#198610-198808

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV2#198610-198710

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32030iCV20,SV2#,VZV21198610-198808

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iCV20,SV20,21..XL,XLI198610-198808

RH

main69759-24010iCV20,SV21,25,VZV21..GL,GLI,GXI198610-198808

RH

main69759-24020iCV20,SV21,25,VZV21..GL,GLI,GXI198610-198808

LH

main69759-24070iCV20,SV20,21..XL,XLI198610-198808

LH

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iCV20,SV2#198610-198808

RH

main69293-12060iCV20,SV2#198610-198808

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-32160iVZV21198710-198808

W(POWER WINDOW)

main69310-32160iCV20,SV21..LHD..(GL,GLI)198610-198710

W/*PW

main69310-32240iCV20,SV2#198710-198808

main69310-32240iCV20,SV2#198610-198710

W/O *PW

main69310-32250iCV20,SV21,25..RHD..(GL,GLI)198710-198808

W(POWER WINDOW)

main69310-32250iCV20,SV21..RHD..(GL,GLI)198610-198710

W/*PW

69320LOCK ASSY, FRONT DOOR, LH

main69320-32140iCV20,SV21,25..RHD..(GL,GLI)198710-198808

W(POWER WINDOW)

main69320-32140iCV20,SV21..RHD..(GL,GLI)198610-198710

W/*PW

main69320-32150iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(POWER WINDOW)

main69320-32150iCV20,SV21..LHD..(GL,GLI)198610-198710

W/*PW

main69320-32230iCV20,SV2#198610-198710

W/O *PW

main69320-32230iCV20,SV2#198710-198808

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24050iCV20,SV2#198610-198808

LH

main69759-24060iCV20,SV2#198610-198808

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iCV20,SV2#198610-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-32030iCV20,SV2#198610-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-32020iCV20,SV2#198610-198808

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iCV20,SV2#198610-198808

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32020-02iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

sub69741-32020

main69741-32020-02iCV20,SV21,25..RHD198710-198808

MAROON,TRIM3#

sub69741-32020

main69741-32020-03iCV20,SV2#,VZV21..LHD198710-198808

MEDIUM GRAY,TRIM1#

sub69741-32020

main69741-32020-03iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV21198710-198808

DARK BLUE,TRIM8#

sub69741-32020

main69741-32020-04iCV20,SV2#198610-198710

BLUE,DARK BLUE,TRIM8#

sub69741-32020

main69741-32020-05iCV20,SV2#198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub69741-32020

main69741-32020-05iCV20,SV2#,VZV21198710-198808

DARK BEIGE,TRIM4#

sub69741-32020

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30020iCV20,SV2#198610-198808

8401

8415

9010506074

main90105-06074

9015960268

main90159-60268

9015960329

main90159-60329

9015980030

main90159-80030

9016720002

main90167-20002

9018905003

main90189-05003

9038606021

main90386-06021

9165140612

main91651-40612

9353055016

main93530-55016

27 parts on this diagram · 1 diagram in section
