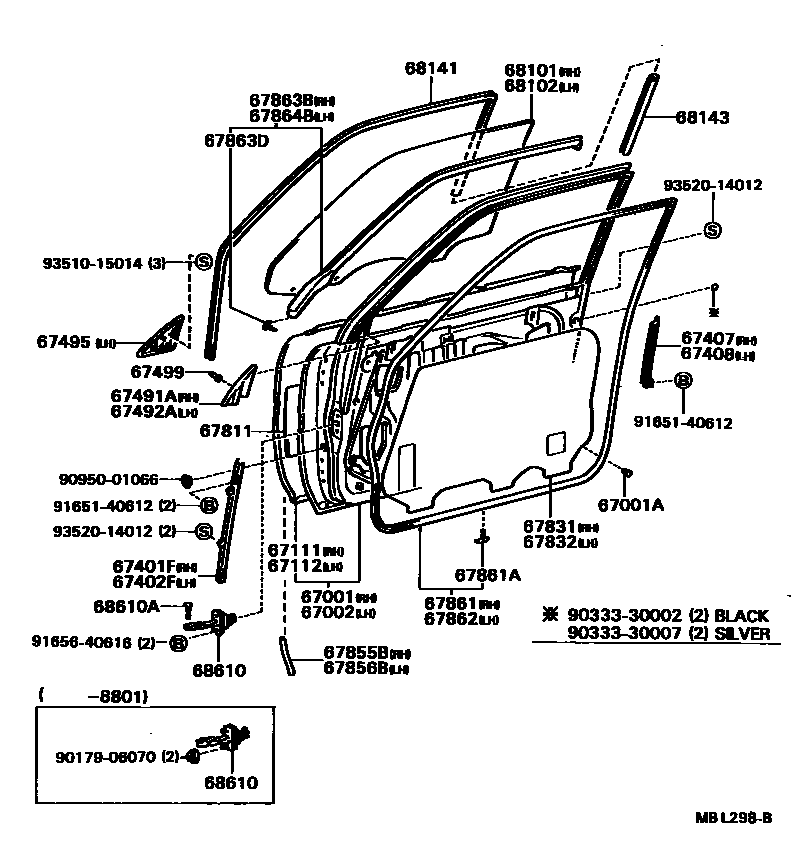

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(POWER RECLINING MIRROR)
W/*DRC
W(MANUAL RECLINING MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W/*DRC
W(POWER RECLINING MIRROR)
W(MANUAL RECLINING MIRROR)
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
RH
LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
LH
RH
LH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
LH
RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,BLUE,*TT,T=4.0
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
*TT,T=4.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,BLUE,*TT,T=4.0
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
68143RUN, FRONT DOOR GLASS, LOWER
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9017906070
9033330002
9033330007
9095001066
9165140612
9165640616
9351015014
9352014012
38 parts on this diagram · 2 diagrams in section
