DECK BOARD & DECK TRIM COVER

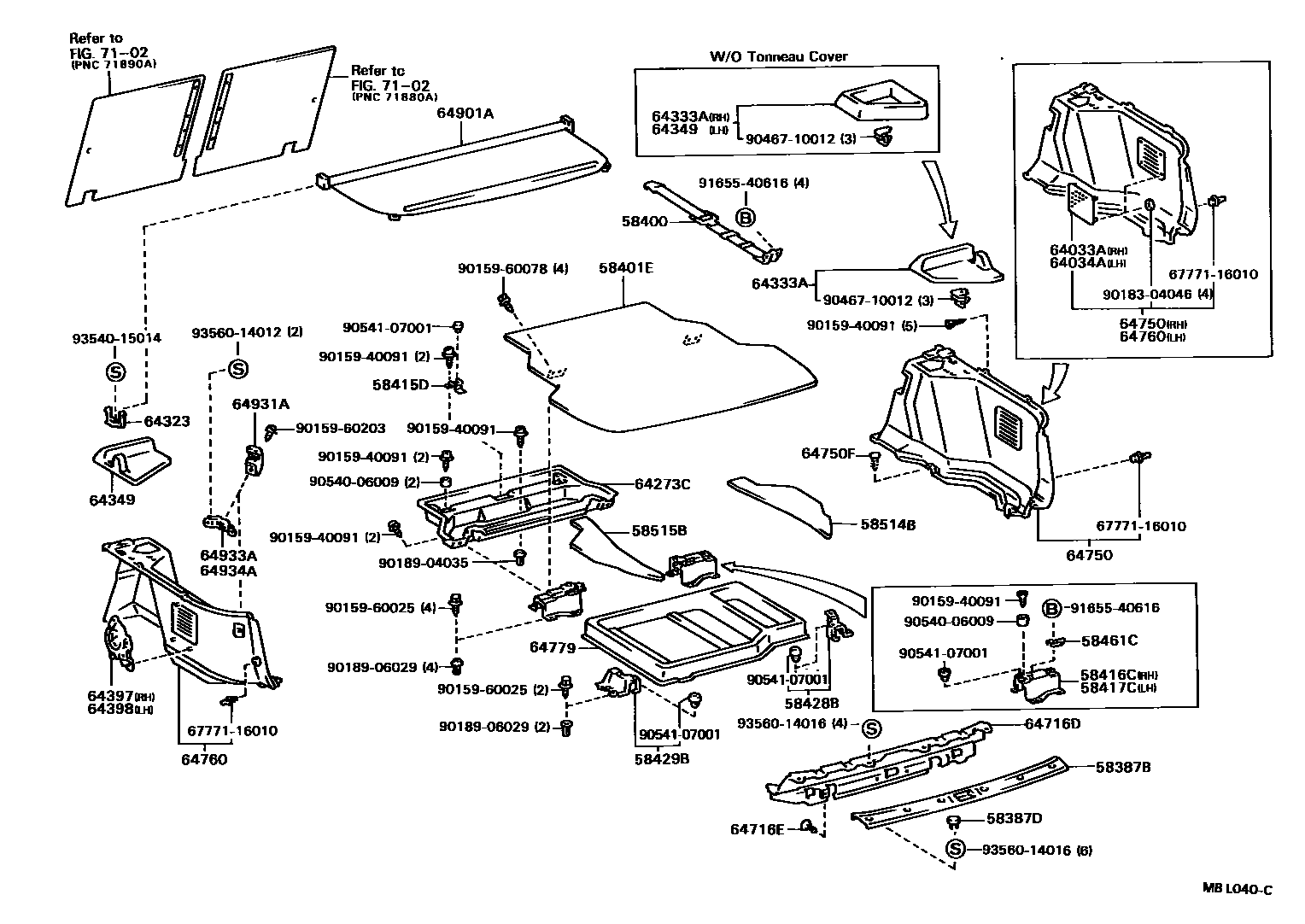

Parts diagram
58387BPLATE, REAR FLOOR FINISH
main58387-32010-02i198710-198808
MAROON,TRIM3#
sub58387-32010¥6,800
main58387-32010-02i198610-198710
MAROON,MAROON,TRIM3#
sub58387-32010¥6,800
main58387-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub58387-32010¥6,800
main58387-32010-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub58387-32010¥6,800
main58387-32010-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub58387-32010¥6,800
main58387-32010-04i198710-198808
DARK BLUE,TRIM8#
sub58387-32010¥6,800
main58387-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub58387-32010¥6,800
main58387-32010-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub58387-32010¥6,800
58387DPLUG, HOLE(FOR REAR FLOOR FINISH PLATE)
main90950-01503-05i198710-198807
DARK BEIGE,TRIM4#
sub90950-01503¥190
main90950-01503-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub90950-01503¥190
main90950-01503-12i198710-198807
MAROON,TRIM3#
sub90950-01503¥190
main90950-01503-12i198610-198710
MAROON,MAROON,TRIM3#
sub90950-01503¥190
main90950-01503-13i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub90950-01503¥190
main90950-01503-13i198710-198807
MEDIUM GRAY,TRIM1#
sub90950-01503¥190
main90950-01503-14i198610-198710
BLUE,DARK BLUE,TRIM8#
sub90950-01503¥190
main90950-01503-14i198710-198807
DARK BLUE,TRIM8#
sub90950-01503¥190
main90950-01503-23i198710-198807
LIGHT GRAY,TRIM1#,3#,4#
sub90950-01503¥190
58400BELT ASSY, LUGGAGE HOLD, NO.1
main58400-32010-02i198710-198808
MAROON,TRIM3#
main58400-32010-02i198610-198710
MAROON,MAROON,TRIM3#
main58400-32010-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main58400-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
main58400-32010-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main58400-32010-04i198710-198808
DARK BLUE,TRIM8#
main58400-32010-05i198710-198808
DARK BEIGE,TRIM4#
main58400-32010-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
58401EBOARD SUB-ASSY, DECK
main58410-32010-02i198710-198808
MAROON,TRIM3#
main58410-32010-02i198610-198710
MAROON,MAROON,TRIM3#
main58410-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
main58410-32010-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main58410-32010-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main58410-32010-04i198710-198808
DARK BLUE,TRIM8#
main58410-32010-05i198710-198808
DARK BEIGE,TRIM4#
main58410-32010-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main58410-32020-02i198610-198710
MAROON,MAROON,TRIM3#
main58410-32020-02i198710-198808
MAROON,TRIM3#
main58410-32020-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main58410-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
main58410-32020-04i198710-198808
DARK BLUE,TRIM8#
main58410-32020-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main58410-32020-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main58410-32020-05i198710-198808
DARK BEIGE,TRIM4#
58415DBRACKET, DECK BOARD SUPPORT
main58415-32010i¥330198610-198808
58416CBRACKET, DECK BOARD, NO.1 RH
main58416-32010i¥1,970198610-198808
58417CBRACKET, DECK BOARD, NO.1 LH
main58417-32010i¥1,970198610-198808
58428BBRACKET, DECK BOARD, NO.5 RH
main58428-32010i¥1,220198610-198808
58429BBRACKET, DECK BOARD, NO.5 LH
main58429-32010i¥1,220198610-198808
58461CSTRIKER, LUGGAGE HOLD BELT
main58461-32010i¥310198610-198808
58514BMAT, FLOOR, REAR RH
main58514-32010-01i198610-198710
BLACK,BLACK
main58514-32010-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
58515BMAT, FLOOR, REAR LH
main58515-32010-01i198610-198710
BLACK,BLACK
main58515-32010-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-32040-02i198610-198710
MAROON,MAROON,TRIM3#
sub64033-32040¥2,620
main64033-32040-02i198710-198808
MAROON,TRIM3#
sub64033-32040¥2,620
main64033-32040-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64033-32040¥2,620
main64033-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64033-32040¥2,620
main64033-32040-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64033-32040¥2,620
main64033-32040-04i198710-198808
DARK BLUE,TRIM8#
sub64033-32040¥2,620
main64033-32040-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64033-32040¥2,620
main64033-32040-05i198710-198808
DARK BEIGE,TRIM4#
sub64033-32040¥2,620
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-32040-02i198710-198808
MAROON,TRIM3#
sub64033-32040¥2,620
main64033-32040-02i198610-198710
MAROON,MAROON,TRIM3#
sub64033-32040¥2,620
main64033-32040-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64033-32040¥2,620
main64033-32040-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64033-32040¥2,620
main64033-32040-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64033-32040¥2,620
main64033-32040-04i198710-198808
DARK BLUE,TRIM8#
sub64033-32040¥2,620
main64033-32040-05i198710-198808
DARK BEIGE,TRIM4#
sub64033-32040¥2,620
main64033-32040-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64033-32040¥2,620
64273CPOCKET, BACK PANEL TRIM
main64273-32020-01i198610-198710
BLACK,BLACK
main64273-32020-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-32010-02i198610-198710
W/TONNEAU COVER,MAROON,MAROON,TRIM3#
main64323-32010-02i198710-198808
MAROON,TRIM3#
main64323-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
main64323-32010-03i198610-198710
W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1#
main64323-32010-04i198610-198710
W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8#
main64323-32010-04i198710-198808
DARK BLUE,TRIM8#
main64323-32010-05i198610-198710
W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4#
main64323-32010-05i198710-198808
DARK BEIGE,TRIM4#
64333ACOVER, TONNEAU SIDE, RH
main64333-32020-02i198610-198710
W/O TONNEAU COVER,MAROON,MAROON,TRIM3#
sub64333-32020¥3,870
main64333-32020-02i198710-198808
MAROON,TRIM3#
sub64333-32020¥3,870
main64333-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64333-32020¥3,870
main64333-32020-03i198610-198710
W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1#
sub64333-32020¥3,870
main64333-32020-04i198610-198710
W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8#
sub64333-32020¥3,870
main64333-32020-04i198710-198808
DARK BLUE,TRIM8#
sub64333-32020¥3,870
main64333-32020-05i198610-198710
W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4#
sub64333-32020¥3,870
main64333-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub64333-32020¥3,870
main64333-32030-02i198610-198710
W/TONNEAU COVER,MAROON,MAROON,TRIM3#
sub64333-32030¥2,570
main64333-32030-02i198710-198808
W(REAR CARGO DECK COVER),MAROON,TRIM3#
sub64333-32030¥2,570
main64333-32030-03i198710-198808
W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1#
sub64333-32030¥2,570
main64333-32030-03i198610-198710
W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1#
sub64333-32030¥2,570
main64333-32030-04i198610-198710
W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8#
sub64333-32030¥2,570
main64333-32030-04i198710-198808
W(REAR CARGO DECK COVER),DARK BLUE,TRIM8#
sub64333-32030¥2,570
main64333-32030-05i198610-198710
W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4#
sub64333-32030¥2,570
main64333-32030-05i198710-198808
W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4#
sub64333-32030¥2,570
64349COVER, TONNEAU SIDE, LH
main64349-32010-02i198710-198808
MAROON,TRIM3#
sub64349-32010¥3,870
main64349-32010-02i198610-198710
W/O TONNEAU COVER,MAROON,MAROON,TRIM3#
sub64349-32010¥3,870
main64349-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64349-32010¥3,870
main64349-32010-03i198610-198710
W/O TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1#
sub64349-32010¥3,870
main64349-32010-04i198710-198808
DARK BLUE,TRIM8#
sub64349-32010¥3,870
main64349-32010-04i198610-198710
W/O TONNEAU COVER,BLUE,DARK BLUE,TRIM8#
sub64349-32010¥3,870
main64349-32010-05i198610-198710
W/O TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4#
sub64349-32010¥3,870
main64349-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub64349-32010¥3,870
main64349-32020-02i198710-198808
W(REAR CARGO DECK COVER),MAROON,TRIM3#
sub64349-32020¥2,620
main64349-32020-02i198610-198710
W/TONNEAU COVER,MAROON,MAROON,TRIM3#
sub64349-32020¥2,620
main64349-32020-03i198710-198808
W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1#
sub64349-32020¥2,620
main64349-32020-03i198610-198710
W/TONNEAU COVER,GRAY,MEDIUM GRAY,TRIM1#
sub64349-32020¥2,620
main64349-32020-04i198610-198710
W/TONNEAU COVER,BLUE,DARK BLUE,TRIM8#
sub64349-32020¥2,620
main64349-32020-04i198710-198808
W(REAR CARGO DECK COVER),DARK BLUE,TRIM8#
sub64349-32020¥2,620
main64349-32020-05i198610-198710
W/TONNEAU COVER,BEIGE,DARK BEIGE,TRIM4#
sub64349-32020¥2,620
main64349-32020-05i198710-198808
W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4#
sub64349-32020¥2,620
64397HOLDER, TONNEAU COVER SIDE, RH
main64397-32020i¥680198610-198808
64398HOLDER, TONNEAU COVER SIDE, LH
main64398-32010i¥680198610-198808
64716DCOVER, DECK TRIM, REAR
main64716-32060-02i198710-198808
MAROON,TRIM3#
main64716-32060-02i198610-198710
MAROON,MAROON,TRIM3#
main64716-32060-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main64716-32060-03i198710-198808
MEDIUM GRAY,TRIM1#
main64716-32060-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main64716-32060-04i198710-198808
DARK BLUE,TRIM8#
main64716-32060-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main64716-32060-05i198710-198808
DARK BEIGE,TRIM4#
main64716-32070-02i198710-198808
MAROON,TRIM3#
main64716-32070-02i198610-198710
MAROON,MAROON,TRIM3#
main64716-32070-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main64716-32070-03i198710-198808
MEDIUM GRAY,TRIM1#
main64716-32070-04i198710-198808
DARK BLUE,TRIM8#
main64716-32070-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main64716-32070-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main64716-32070-05i198710-198808
DARK BEIGE,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-06049-12i198610-198710
MAROON,MAROON,TRIM3#
sub90467-06049¥140
main90467-06049-12i198710-198808
MAROON,TRIM3#
sub90467-06049¥140
main90467-06049-15i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub90467-06049¥140
main90467-06049-15i198710-198808
DARK BEIGE,TRIM4#
sub90467-06049¥140
main90467-06049-23i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub90467-06049¥140
main90467-06049-23i198710-198808
MEDIUM GRAY,TRIM1#
sub90467-06049¥140
main90467-06049-24i198710-198808
DARK BLUE,TRIM8#
sub90467-06049¥140
main90467-06049-24i198610-198710
BLUE,DARK BLUE,TRIM8#
sub90467-06049¥140
64750PANEL ASSY, DECK SIDE TRIM, RH
main64730-32020-02i198710-198808
MAROON,TRIM3#
main64730-32020-02i198610-198710
MAROON,MAROON,TRIM3#
main64730-32020-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main64730-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
main64730-32020-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main64730-32020-04i198710-198808
DARK BLUE,TRIM8#
main64730-32020-05i198710-198808
DARK BEIGE,TRIM4#
main64730-32020-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main64730-32030-02i198710-198808
*45,MAROON,TRIM3#
main64730-32030-02i198610-198710
*45,MAROON,MAROON,TRIM3#
main64730-32030-03i198610-198710
*45,GRAY,MEDIUM GRAY,TRIM1#
main64730-32030-03i198710-198808
*45,MEDIUM GRAY,TRIM1#
main64730-32030-04i198710-198808
*45,DARK BLUE,TRIM8#
main64730-32030-04i198610-198710
*45,BLUE,DARK BLUE,TRIM8#
main64730-32030-05i198610-198710
*45,BEIGE,DARK BEIGE,TRIM4#
main64730-32030-05i198710-198808
*45,DARK BEIGE,TRIM4#
main64730-32040-02i198610-198710
MAROON,MAROON,TRIM3#
sub64730-32040¥35,200
main64730-32040-02i198710-198808
MAROON,TRIM3#
sub64730-32040¥35,200
main64730-32040-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64730-32040¥35,200
main64730-32040-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64730-32040¥35,200
main64730-32040-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64730-32040¥35,200
main64730-32040-13i198710-198808
MEDIUM GRAY,TRIM1#
sub64730-32040¥35,200
main64730-32040-14i198710-198808
DARK BLUE,TRIM8#
sub64730-32040¥35,200
main64730-32040-15i198710-198808
DARK BEIGE,TRIM4#
sub64730-32040¥35,200
main64730-32050-02i198710-198808
*45,MAROON,TRIM3#
sub64730-32050¥35,200
main64730-32050-02i198610-198710
*45,MAROON,MAROON,TRIM3#
sub64730-32050¥35,200
main64730-32050-03i198610-198710
*45,GRAY,MEDIUM GRAY,TRIM1#
sub64730-32050¥35,200
main64730-32050-04i198610-198710
*45,BLUE,DARK BLUE,TRIM8#
sub64730-32050¥35,200
main64730-32050-05i198610-198710
*45,BEIGE,DARK BEIGE,TRIM4#
sub64730-32050¥35,200
main64730-32050-13i198710-198808
*45,MEDIUM GRAY,TRIM1#
sub64730-32050¥35,200
main64730-32050-14i198710-198808
*45,DARK BLUE,TRIM8#
sub64730-32050¥35,200
main64730-32050-15i198710-198808
*45,DARK BEIGE,TRIM4#
sub64730-32050¥35,200
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-06049-12i198710-198808
MAROON,TRIM3#
sub90467-06049¥140
main90467-06049-12i198610-198710
MAROON,MAROON,TRIM3#
sub90467-06049¥140
main90467-06049-15i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub90467-06049¥140
main90467-06049-15i198710-198808
DARK BEIGE,TRIM4#
sub90467-06049¥140
main90467-06049-23i198710-198808
MEDIUM GRAY,TRIM1#
sub90467-06049¥140
main90467-06049-23i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub90467-06049¥140
main90467-06049-24i198610-198710
BLUE,DARK BLUE,TRIM8#
sub90467-06049¥140
main90467-06049-24i198710-198808
DARK BLUE,TRIM8#
sub90467-06049¥140
64760PANEL ASSY, DECK SIDE TRIM, LH
main64740-32020-02i198610-198710
MAROON,MAROON,TRIM3#
main64740-32020-02i198710-198808
MAROON,TRIM3#
main64740-32020-03i198710-198808
MEDIUM GRAY,TRIM1#
main64740-32020-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
main64740-32020-04i198610-198710
BLUE,DARK BLUE,TRIM8#
main64740-32020-04i198710-198808
DARK BLUE,TRIM8#
main64740-32020-05i198710-198808
DARK BEIGE,TRIM4#
main64740-32020-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
main64740-32030-02i198610-198710
*45,MAROON,MAROON,TRIM3#
main64740-32030-02i198710-198808
*45,MAROON,TRIM3#
main64740-32030-03i198610-198710
*45,GRAY,MEDIUM GRAY,TRIM1#
main64740-32030-03i198710-198808
*45,MEDIUM GRAY,TRIM1#
main64740-32030-04i198710-198808
*45,DARK BLUE,TRIM8#
main64740-32030-04i198610-198710
*45,BLUE,DARK BLUE,TRIM8#
main64740-32030-05i198710-198808
*45,DARK BEIGE,TRIM4#
main64740-32030-05i198610-198710
*45,BEIGE,DARK BEIGE,TRIM4#
main64740-32040-02i198610-198710
MAROON,MAROON,TRIM3#
sub64740-32040¥35,200
main64740-32040-02i198710-198808
MAROON,TRIM3#
sub64740-32040¥35,200
main64740-32040-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64740-32040¥35,200
main64740-32040-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64740-32040¥35,200
main64740-32040-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64740-32040¥35,200
main64740-32040-13i198710-198808
MEDIUM GRAY,TRIM1#
sub64740-32040¥35,200
main64740-32040-14i198710-198808
DARK BLUE,TRIM8#
sub64740-32040¥35,200
main64740-32040-15i198710-198808
DARK BEIGE,TRIM4#
sub64740-32040¥35,200
main64740-32050-02i198710-198808
*45,MAROON,TRIM3#
sub64740-32050¥35,200
main64740-32050-02i198610-198710
*45,MAROON,MAROON,TRIM3#
sub64740-32050¥35,200
main64740-32050-03i198610-198710
*45,GRAY,MEDIUM GRAY,TRIM1#
sub64740-32050¥35,200
main64740-32050-04i198610-198710
*45,BLUE,DARK BLUE
sub64740-32050¥35,200
main64740-32050-05i198610-198710
*45,BEIGE,DARK BEIGE
sub64740-32050¥35,200
main64740-32050-13i198710-198808
*45,MEDIUM GRAY,TRIM1#
sub64740-32050¥35,200
main64740-32050-14i198710-198808
*45,DARK BLUE,TRIM8#
sub64740-32050¥35,200
main64740-32050-15i198710-198808
*45,DARK BEIGE,TRIM4#
sub64740-32050¥35,200
64779TRAY, SPARE WHEEL COVER
main64779-32020-01i198610-198710
BLACK,BLACK
main64779-32020-01i198710-198808
BLACK,TRIM1#,3#,4#,8#
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
main64901-32010-02i198610-198710
MAROON,MAROON,TRIM3#
sub64901-32010¥30,000
main64901-32010-02i198710-198808
MAROON,TRIM3#
sub64901-32010¥30,000
main64901-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64901-32010¥30,000
main64901-32010-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64901-32010¥30,000
main64901-32010-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64901-32010¥30,000
main64901-32010-04i198710-198808
DARK BLUE,TRIM8#
sub64901-32010¥30,000
main64901-32010-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64901-32010¥30,000
main64901-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub64901-32010¥30,000
64931AHANGER, TONNEAU COVER
main64931-32010-02i198710-198808
MAROON,TRIM3#
sub64931-32010¥680
main64931-32010-02i198610-198710
MAROON,MAROON,TRIM3#
sub64931-32010¥680
main64931-32010-03i198610-198710
GRAY,MEDIUM GRAY,TRIM1#
sub64931-32010¥680
main64931-32010-03i198710-198808
MEDIUM GRAY,TRIM1#
sub64931-32010¥680
main64931-32010-04i198710-198808
DARK BLUE,TRIM8#
sub64931-32010¥680
main64931-32010-04i198610-198710
BLUE,DARK BLUE,TRIM8#
sub64931-32010¥680
main64931-32010-05i198710-198808
DARK BEIGE,TRIM4#
sub64931-32010¥680
main64931-32010-05i198610-198710
BEIGE,DARK BEIGE,TRIM4#
sub64931-32010¥680
64933ABRACKET, TONNEAU COVER HOLDER, RH
main64933-32010i¥370198610-198808
64934ABRACKET, TONNEAU COVER HOLDER, LH
main64934-32010i¥370198610-198808
7102
6777116010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16010¥180
9015940091
main90159-40091¥180
9015960025
main90159-60025¥200
9015960078
main90159-60078¥120
9015960203
main90159-60203¥120
9018304046
main90183-04046¥120
9018904035
main90189-04035¥120
9018906029
main90189-06029¥100
9046710012
main90467-10012¥130
9054006009
main90540-06009¥310
9054107001
main90541-07001¥200
9165540616
main91655-40616¥120
9354015014
main93540-15014¥110
9356014012
main93560-14012¥70
9356014016
main93560-14016¥270

46 parts on this diagram · 1 diagram in section

DECK BOARD & DECK TRIM COVER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
