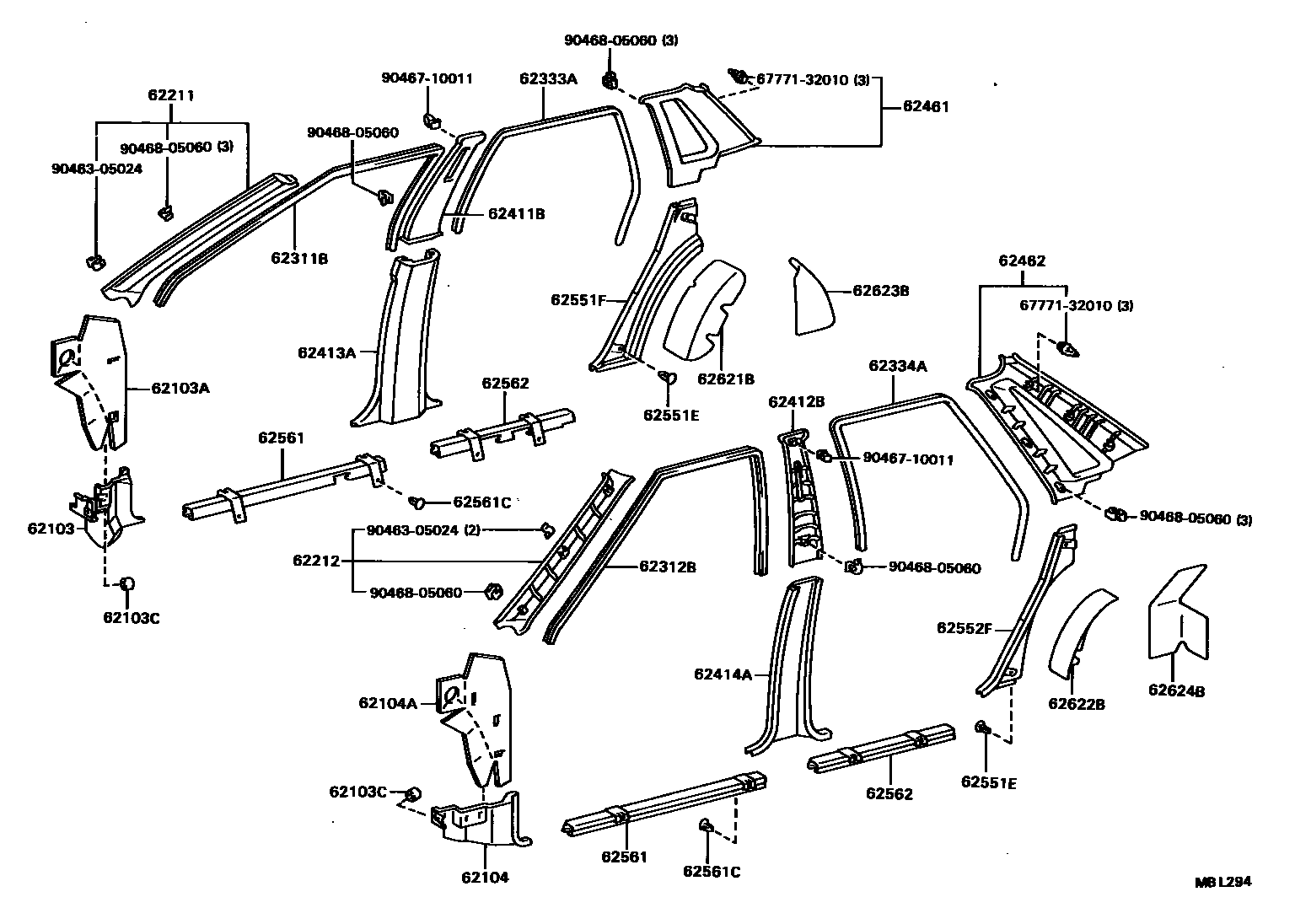

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
62103CCLIP, COWL SIDE TRIM BOARD SET
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
62211GARNISH, FRONT PILLAR, RH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
62412BGARNISH, CENTER PILLAR, UPPER LH
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62461GARNISH, ROOF SIDE TRIM, RH
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
*45,MAROON,MAROON,TRIM3#
*45,MAROON,TRIM3#
*45,MEDIUM GRAY,TRIM1#
*45,GRAY,MEDIUM GRAY,TRIM1#
*45,BLUE,DARK BLUE,TRIM8#
*45,DARK BLUE,TRIM8#
*45,BEIGE,DARK BEIGE,TRIM4#
*45,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
*45,MAROON,MAROON,TRIM3#
*45,MAROON,TRIM3#
*45,MEDIUM GRAY,TRIM1#
*45,GRAY,MEDIUM GRAY,TRIM1#
*45,BLUE,DARK BLUE,TRIM8#
*45,DARK BLUE,TRIM8#
*45,BEIGE,DARK BEIGE,TRIM4#
*45,DARK BEIGE,TRIM4#
62462GARNISH, ROOF SIDE TRIM, LH
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
*45,MAROON,TRIM3#
*45,MAROON,MAROON,TRIM3#
*45,MEDIUM GRAY,TRIM1#
*45,GRAY,MEDIUM GRAY,TRIM1#
*45,BLUE,DARK BLUE,TRIM8#
*45,DARK BLUE,TRIM8#
*45,DARK BEIGE,TRIM4#
*45,BEIGE,DARK BEIGE,TRIM4#
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
*45,MAROON,MAROON,TRIM3#
*45,MAROON,TRIM3#
*45,MEDIUM GRAY,TRIM1#
*45,GRAY,MEDIUM GRAY,TRIM1#
*45,BLUE,DARK BLUE,TRIM8#
*45,DARK BLUE,TRIM8#
*45,DARK BEIGE,TRIM4#
*45,BEIGE,DARK BEIGE,TRIM4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
62552FGARNISH, REAR SEAT SIDE, LH
62561PROTECTOR, ROCKER PANEL, INNER FRONT
RH
LH
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
62562PROTECTOR, ROCKER PANEL, INNER REAR
RH
LH
62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH
62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9046305024
main90463-05024
9046710011
main90467-10011
9046805060
main90468-05060
31 parts on this diagram · 2 diagrams in section
