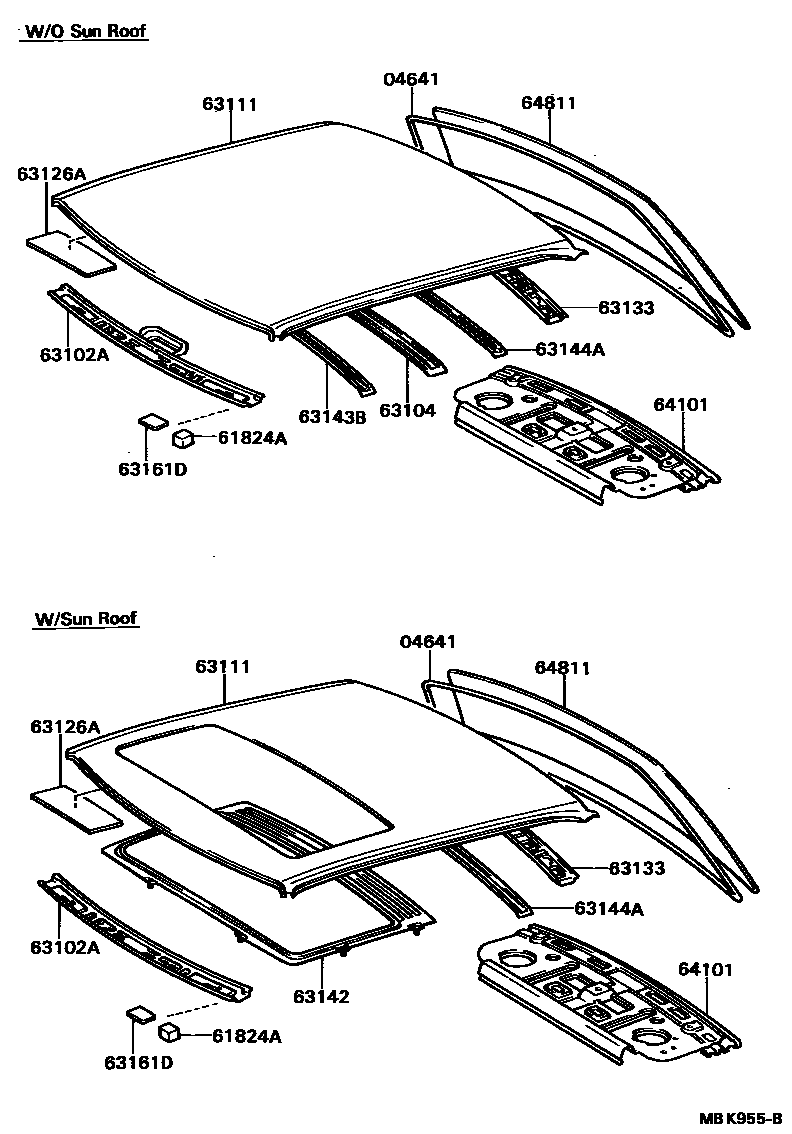

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iCV20,SV20,21,VZV21..SED198610-198808

61824APLATE, NOISE CONTROL, NO.1

main61824-12010iCV20,SV2#..SED198610-198808

sub62939-23010

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-32050iCV20,SV2#..XL,XLI198610-198710

W/SUN ROOF

main63102-32050iCV20,SV20,21..XL,XLI198710-198808

W(MOON ROOF)

main63102-32060iCV20,SV21,25,VZV21..GL,GLI,GXI198610-198808

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-32030iCV20,SV2#..SED198610-198808

main63141-32040iCV20,SV20,21..WG198610-198808

63111PANEL, ROOF

main63111-32050iCV20,SV2#,VZV21..SED198610-198808

main63111-32060iCV20,SV2#,VZV21..SED198710-198808

W(MOON ROOF)

main63111-32060iCV20,SV2#..SED198610-198710

W/SUN ROOF

main63111-32070iCV20,SV20,21..WG198610-198808

main63111-32080iCV20,SV2#..WG198708-198710

W/SUN ROOF

main63111-32080iCV20,SV20,21..WG198710-198808

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010iCV20,SV2#198610-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-32020iCV20,SV2#..SED198610-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-32020iCV20,SV2#..SED198610-198808

main63142-32030iCV20,SV20,21..WG198708-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-32010iCV20,SV2#..SED198610-198808

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-32010iCV20,SV2#,VZV21..SED198610-198808

main63144-32020iCV20,SV2#..WG198610-198808

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-22010iCV20,SV2#..WG198610-198808

64101PANEL SUB-ASSY, UPPER BACK

main64101-32050iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198610-198808

*FSRS

main64101-32070iCV20,SV2#..SED..(XL,XLI)198610-198808

64811GLASS, BACK WINDOW

main64811-32080iCV20,SV2#,VZV21..SED198710-198808

*EHTT,T=4.0

main64811-32080iCV20,SV2#..SED198610-198710

*EHTT,T=4.0,*EHTT,T=4.0

main64811-32110iCV20,SV2#..SED..LHD198610-198710

*EHTT,T=4.0,COLD SPEC,*EHTT,T=4.0

main64811-32110iCV20,SV2#,VZV21..SED..LHD198710-198808

*EHTT,T=4.0,COLD SPEC

main64811-32130iCV20,SV21,25,VZV21..SED..LHD..(GL,GLI,GXI)198710-198808

*EHTT,T=4.0,BRONZE

main64811-32130iCV20,SV21..SED..(GL,GLI)198610-198710

*EHTT,T=4.0,BRONZE,BRONZE,*EHTT,T=4.0

13 parts on this diagram · 3 diagrams in section
