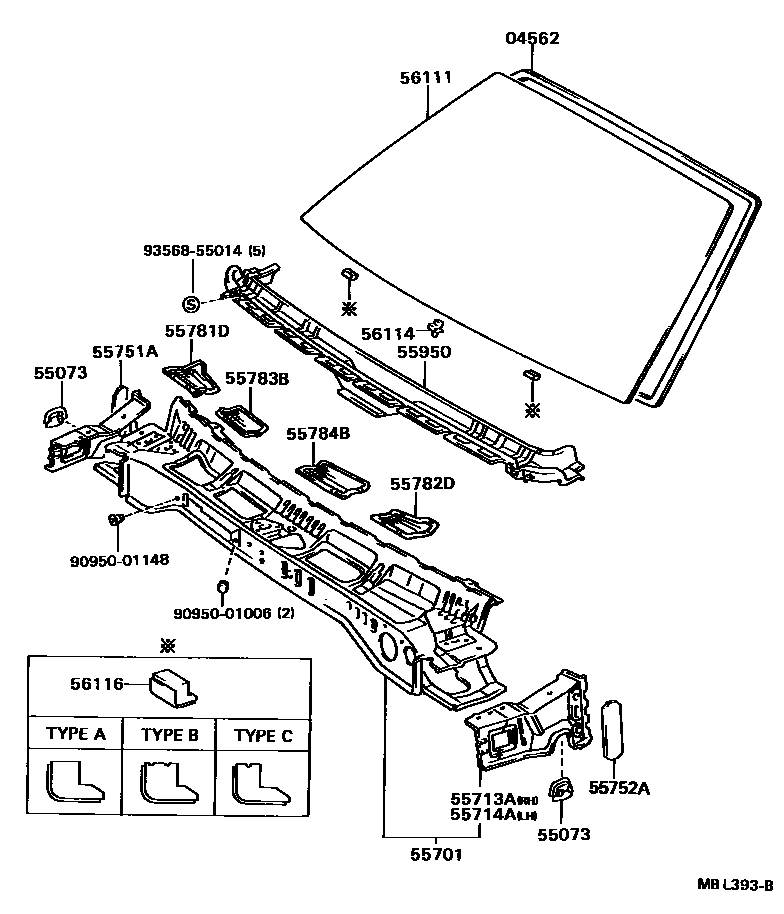

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iCV20,SV20,21,VZV21198610-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iCV20,SV2#198610-198701

main55073-32020iCV20,SV2#,VZV21198701-198808

55701PANEL SUB-ASSY, COWL

main55700-32150iSV20198610-198808

sub55700-32151

main55700-32160iSV21..LHD198610-198808

sub55700-32161

main55700-32180iCV20..LHD198610-198808

sub55700-32181

main55700-32230iSV21..RHD198610-198808

sub55700-32231

main55700-32240iCV20..RHD198610-198808

sub55700-32241

55713APANEL, COWL TOP SIDE, RH

main55713-32020iCV20,SV2#198610-198808

55714APANEL, COWL TOP SIDE, LH

main55714-32020iCV20,SV2#198610-198808

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iCV20,SV2#,VZV21198610-198808

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iCV20,SV2#,VZV21198610-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32040iCV20,SV21,25..RHD198610-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32030iCV20,SV2#..LHD..EUG198710-198808

SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC

main55782-32030iVZV21198710-198808

FINLAND SPEC OR NORWAY SPEC

main55782-32030iSV21,25..FRG198712-198808

SWEDEN SPEC OR NORWAY SPEC

main55782-32030iCV20,SV2#..LHD198610-198710

COLD SPEC

main55782-32030iSV21,25..FRG198710-198712

SWEDEN SPEC

main55782-32040iCV20,SV2#,VZV21..LHD198610-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32030iCV20,SV2#..LHD..EUG198710-198808

SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC

main55783-32030iCV20,SV2#..LHD198610-198710

COLD SPEC

main55783-32030iSV21,25..FRG198710-198712

SWEDEN SPEC

main55783-32030iCV20,SV2#..LHD..EUG198710-198808

FINLAND SPEC OR NORWAY SPEC

main55783-32030iSV21,25..FRG198712-198808

SWEDEN SPEC OR NORWAY SPEC

main55783-32040iCV20,SV2#198610-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32030iSV21,25..FRG198710-198712

SWEDEN SPEC

main55784-32030iCV20,SV2#..LHD..EUG198710-198808

FINLAND SPEC OR NORWAY SPEC

main55784-32030iCV20,SV2#..LHD..EUG198710-198808

SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC

main55784-32030iCV20,SV2#..LHD198610-198710

COLD SPEC

main55784-32030iSV21,25..FRG198712-198808

SWEDEN SPEC OR NORWAY SPEC

main55784-32040iCV20,SV2#,VZV21198610-198808

55950NOZZLE ASSY, DEFROSTER

main55950-32030iCV20,SV21,25..RHD198610-198808

main55950-32040iCV20,SV2#..LHD198610-198808

56111GLASS, WINDSHIELD

main56111-32120iCV20,SV2#198610-198710

*TL,T=5.3,BLUE,*TL,T=5.3

sub56111-32130

main56111-32120iCV20,SV2#,VZV21198710-198808

*TL,T=5.3,BLUE

sub56111-32130

main56111-32130iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

*TL,T=5.3,W(SUN SHADE)

sub56111-32131

main56111-32130iCV20,SV21..GL,GLI198610-198710

*TL,T=5.3,*TL,W/SUN SHADE,T=5.3

sub56111-32131

main56111-32150iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

*TL,T=5.3,BRONZE

main56111-32150iCV20,SV21..GL,GLI198610-198710

*TL,T=5.3,BRONZE,BRONZE,*TL,T=5.3

56114RETAINER, WINDSHIELD GLASS

main56114-32010iCV20,SV2#198610-198808

56116SPACER, WINDSHIELD GLASS

main56116-32040iCV20,SV2#,VZV21198610-198808

TYPE A

sub56116-32060

main56116-32050iCV20,SV2#,VZV21198610-198808

TYPE B

sub56116-32060

main56116-32060iCV20,SV2#198610-198808

TYPE C

9095001006

main90950-01006

9095001148

main90950-01148

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
