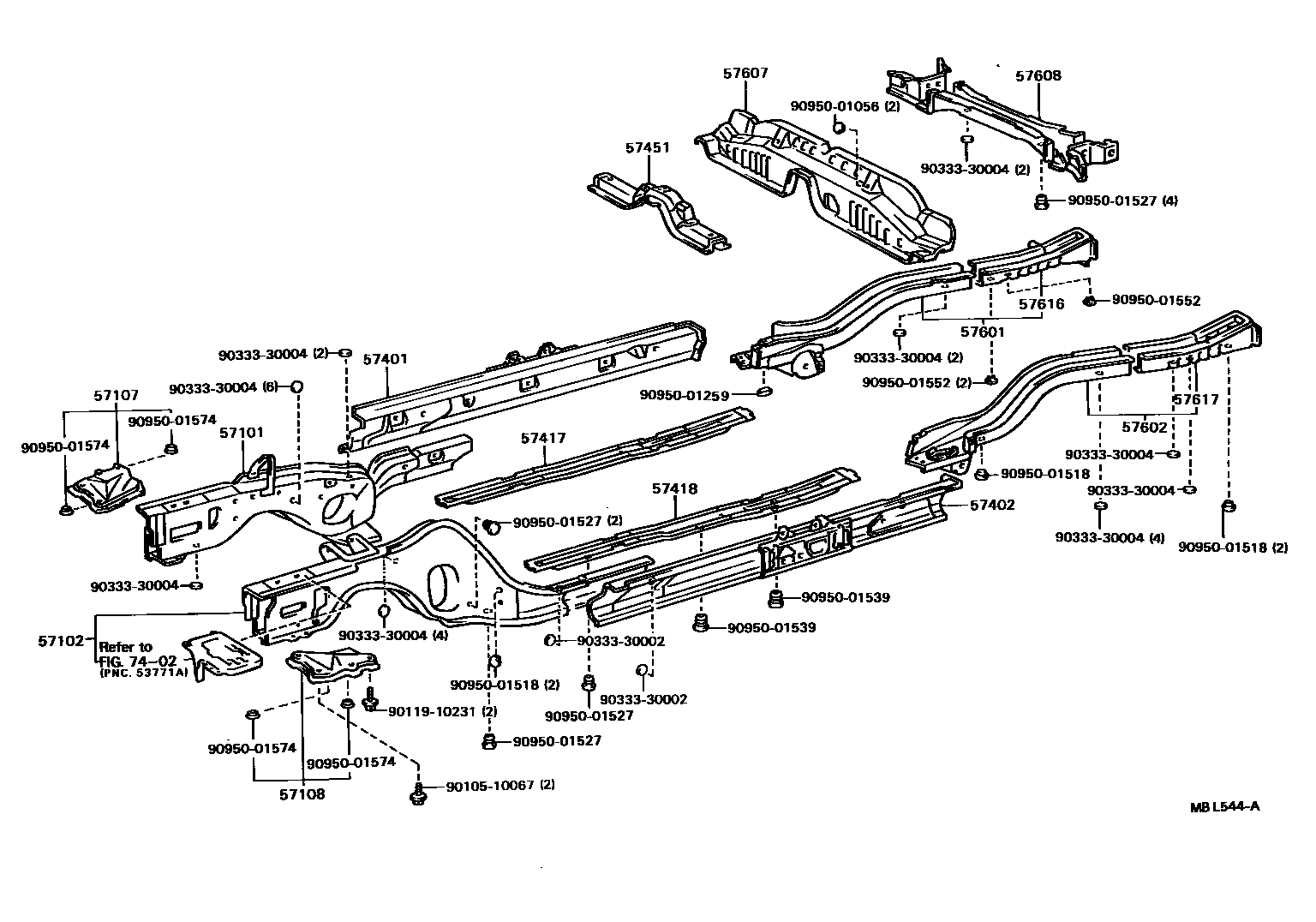

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32050iCV20,SV2#198610-198808

main57101-32080iVZV21198802-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32050iCV20,SV2#198610-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32020iCV20,SV2#198610-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32020iCV20,SV2#,VZV21198610-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32050iCV20,SV2#198610-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32050iCV20,SV2#198610-198808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32030iCV20,SV2#198610-198808

sub57417-32031

sub90950-01527

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32030iCV20,SV2#198610-198808

sub57417-32031

sub90950-01527

57451MEMBER, FRONT FLOOR CROSS

main57408-32020iCV20,SV2#198610-198808

main57408-32030iSV25198710-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32090iCV20,SV2#..WG198610-198808

main57601-32100iCV20,SV2#..SED198610-198808

sub57601-32071

main57601-32110iSV25198710-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32080iCV20,SV2#..WG198610-198808

main57602-32090iCV20,SV20,21,VZV21..SED198610-198808

sub57602-32071

main57602-32100iSV25198710-198808

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-32020iCV20,SV2#198610-198808

main57605-32040iSV25198710-198808

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-32030iCV20,SV20,21,VZV21..SED198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub57606-32040

main57606-32030iCV20,SV2#..SED198610-198710

sub57606-32040

main57606-32040iCV20,SV2#..WG198610-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-32904iCV20,SV20,21..WG198702-198808

main57615-32906iCV20,SV20,21,VZV21..SED198712-198808

main57615-32907iCV20,SV2#..SED198610-198712

sub57615-32906

main57615-32908iCV20,SV2#..WG198610-198702

sub57615-32904

main57615-32909iSV25198710-198808

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-32904iCV20,SV20,21..WG198702-198812

sub57616-32911

sub77216-32030

sub77217-32021

sub90119-10502

sub90159-60357

main57616-32907iCV20,SV20,21..SED198610-198712

sub57616-32906

main57616-32908iCV20,SV2#..WG198610-198702

sub57616-32904

main57616-32909iSV25198710-198808

main57616-32911iCV20,SV20,21..WG198712-198808

main57616-32912iCV20,SV20,21,VZV21..SED198712-198808

7402

9010510067

main90105-10067

9011910231

main90119-10231

9033330002

main90333-30002

9033330004

main90333-30004

9095001056

main90950-01056

9095001259

main90950-01259

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001552

main90950-01552

9095001574

main90950-01574

27 parts on this diagram · 2 diagrams in section
