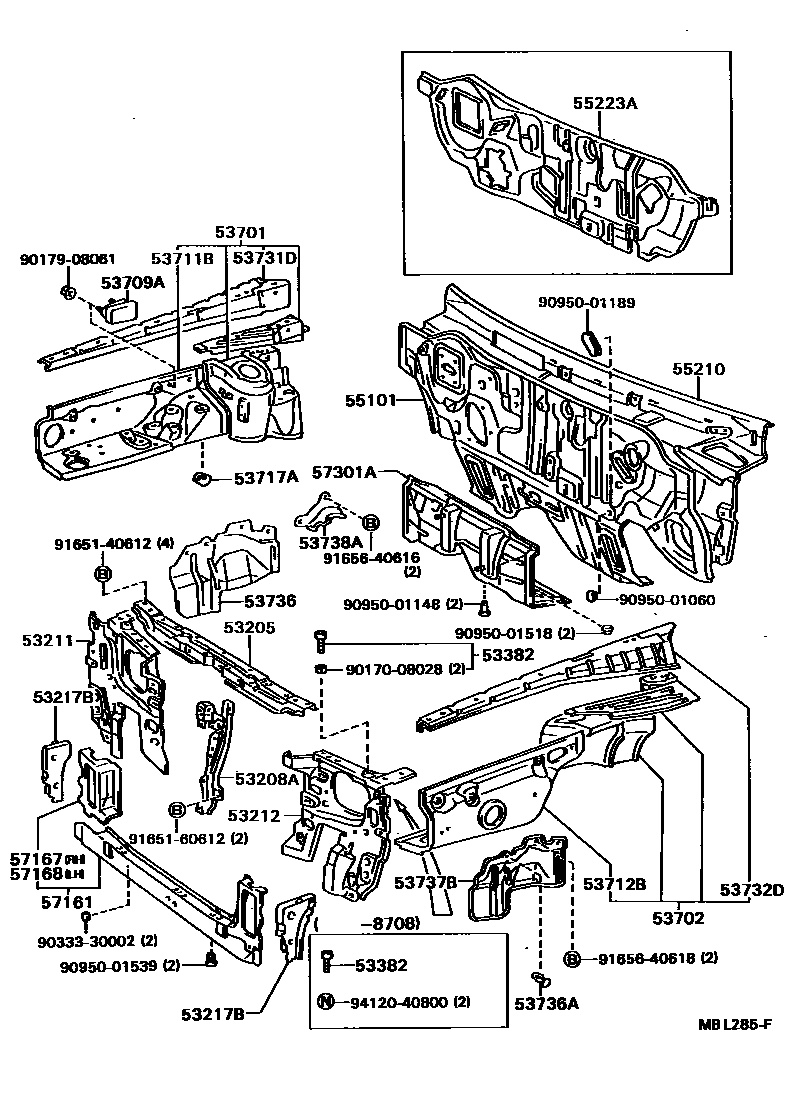

FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-32010iCV20,SV2#,VZV21198610-198808

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32050iCV20,SV2#198610-198808

53211SUPPORT, RADIATOR, RH

main53211-32900iCV20,SV2#198610-198808

53212SUPPORT, RADIATOR, LH

main53212-32900iCV20,SV2#198610-198808

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32030iCV20,SV2#,VZV21198610-198808

RH

main53218-32030iCV20,SV2#198610-198808

LH

53382BUMPER, HOOD, FRONT

main53382-12040iCV20,SV2#198610-198711

main53382-32020iCV20,SV2#,VZV21198708-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32909iCV20,SV2#198610-198808

sub53701-32911

main53701-32910iSV21198708-198710

*66

sub53701-32912

sub78195-32051

sub90119-10487

main53701-32910iSV21,25198710-198802

W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

sub53701-32912

sub78195-32051

sub90119-10487

main53701-32911iVZV21198802-198808

main53701-32912iSV21,25198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub53701-32911

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32908iCV20,SV2#..LHD198610-198808

sub53702-32911

main53702-32910iCV20,SV21..RHD198610-198808

53709ADAMPER SUB-ASSY, FRONT FENDER APRON

main53709-32020iCV20,SV2#198610-198808

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32030iCV20,SV2#198610-198808

sub53711-32080

main53711-32070iSV21198708-198710

*66

sub53711-32071

sub78195-32051

sub90119-10487

main53711-32070iSV21,25198710-198802

W(ANTI-LOCK BRAKE SYSTEM)

sub53711-32071

sub78195-32051

sub90119-10487

main53711-32071iSV21,25198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub53711-32080

main53711-32080iVZV21198802-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32030iCV20,SV2#198610-198808

53717APLATE, FENDER APRON

main53717-32010iSV21,25198802-198808

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32020iCV20,SV2#198610-198808

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32020iCV20,SV2#198610-198808

53736SEAL, FRONT FENDER APRON, RH

main53736-32020iCV20,SV2#198610-198808

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09063iCV20,SV2#198610-198808

53737BSEAL, FRONT FENDER APRON, LH

main53737-32020iCV20,SV2#198610-198808

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-32020iSV2#198610-198808

55101PANEL SUB-ASSY, DASH

main55101-32110iSV21..LHD..4FC198610-198710

sub55101-32111

main55101-32111iSV20..4FC198710-198808

sub55101-32112

main55101-32140iSV21..RHD..4FC198610-198808

sub55101-32141

main55101-32150iCV20,SV21,25..RHD..5F198610-198808

sub55101-32151

main55101-32170iSV20..5F198610-198710

sub55101-32171

main55101-32180iSV20..4FC198610-198710

sub55101-32210

main55101-32190iCV20,SV21..LHD..5F198610-198710

sub55101-32191

main55101-32191iCV20,SV2#,VZV21..LHD..5F198802-198808

sub55101-32192

55210INSULATOR ASSY, DASH PANEL

main55210-32030iCV20,SV21..RHD198610-198808

main55210-32040iCV20,SV2#..LHD198610-198808

55223AINSULATOR, DASH PANEL, OUTER

main55223-32030iCV20,SV21..RHD198610-198808

main55223-32040iCV20,SV21..LHD198610-198808

sub55223-32041

57161CROSSMEMBER, FRONT

main57104-32901iCV20,SV2#198610-198808

sub57104-32905

main57104-32903iSV25,VZV21198710-198808

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32030iCV20,SV2#,VZV21198710-198808

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32030iCV20,SV2#,VZV21198710-198808

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32040iCV20,SV21..RHD..5F198610-198808

main57301-32050iSV21..RHD..4FC198610-198808

main57301-32060iCV20,SV2#..LHD..5F198610-198808

main57301-32070iSV2#..LHD..4FC198610-198808

9017008028

main90170-08028

9017908061

main90179-08061

9033330002

main90333-30002

9095001060

main90950-01060

9095001148

main90950-01148

9095001189

main90950-01189

9095001518

main90950-01518

9095001539

main90950-01539

9165140612

main91651-40612

9165160612

main91651-60612

9165640616

main91656-40616

9165640618

main91656-40618

9412040800

main94120-40800

38 parts on this diagram · 1 diagram in section
