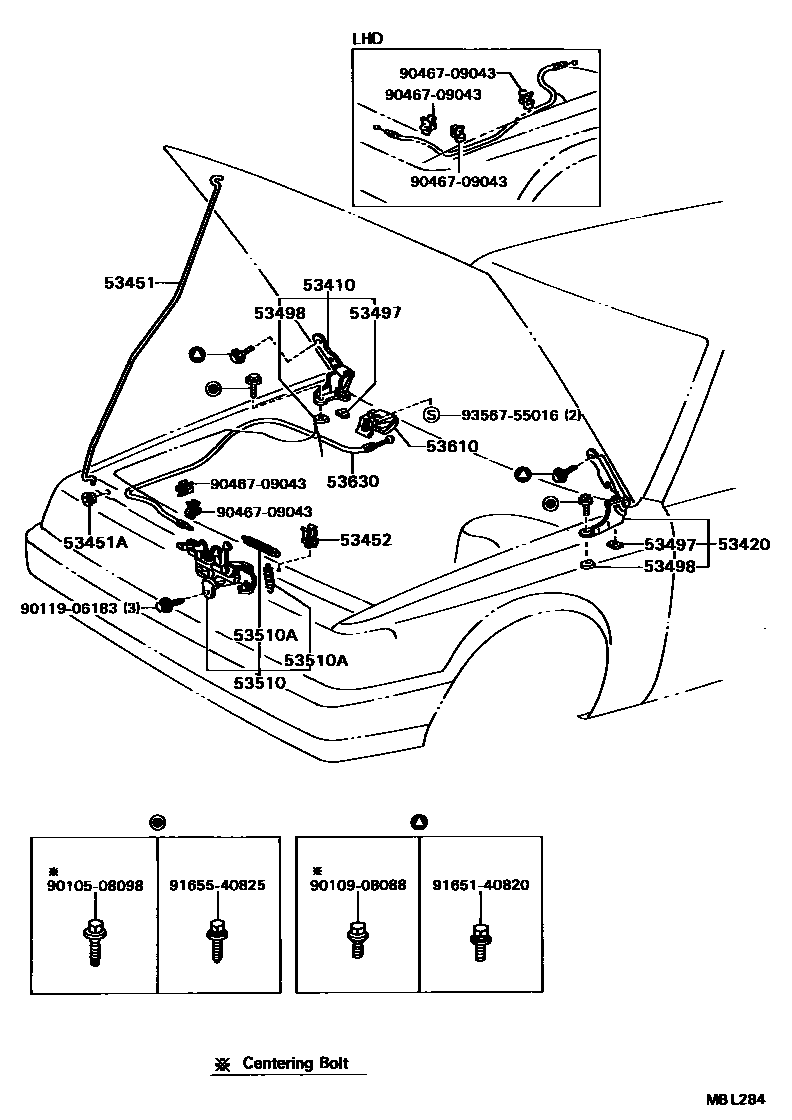

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32030iCV20,SV2#198610-198808

sub53410-32031

main53410-32031iCV20,SV2#,VZV21198808-198808

53420HINGE ASSY, HOOD, LH

main53420-32030iCV20,SV2#198610-198808

sub53420-32031

main53420-32031iCV20,SV2#,VZV21198808-198808

53451ROD, HOOD SUPPORT

main53451-32030iCV20,SV2#198610-198808

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iCV20,SV2#198610-198808

53452HOLDER, HOOD STAY

main53452-32010iCV20,SV2#198610-198808

53497PAD, HOOD HINGE, NO.1

main53497-17010iCV20,SV2#198610-198808

sub53497-17011

main53497-17011iCV20,SV2#,VZV21198808-198808

53498PAD, HOOD HINGE, NO.2

main53498-12010iCV20,SV2#198610-198808

sub53498-12011

main53498-12011iCV20,SV2#,VZV21198808-198808

53510LOCK ASSY, HOOD

main53510-32050iCV20,SV2#,VZV21..LHD198610-198808

main53510-32070iCV20,SV21,25..RHD198610-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iCV20,SV2#198610-198808

WD=0.9,WD=0.9

main90506-20008iCV20,SV2#198610-198701

WD=2.0,CW=17,WD=2.0

main90506-20054iCV20,SV2#,VZV21198701-198808

WD=2.0,CW=17,WD=2.0

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-10020-01iCV20,SV2#,VZV21198710-198808

NEW BLACK,TRIM1#,3#,4#,8#

sub53601-10020

sub53601-20060

main53601-10020-05iCV20,SV2#198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-12iCV20,SV21..RHD198610-198710

MAROON,MAROON,TRIM3#

sub53601-10020

sub53601-20060

main53601-10020-13iCV20,SV2#..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-24iCV20,SV2#198610-198710

BLUE,DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32060iCV20,SV2#198610-198808

main53630-32070iCV20,SV21,25..RHD198710-198808

9010508098

main90105-08098

9010908088

main90109-08088

9011906183

main90119-06183

9046709043

main90467-09043

9165140820

main91651-40820

9165540825

main91655-40825

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
