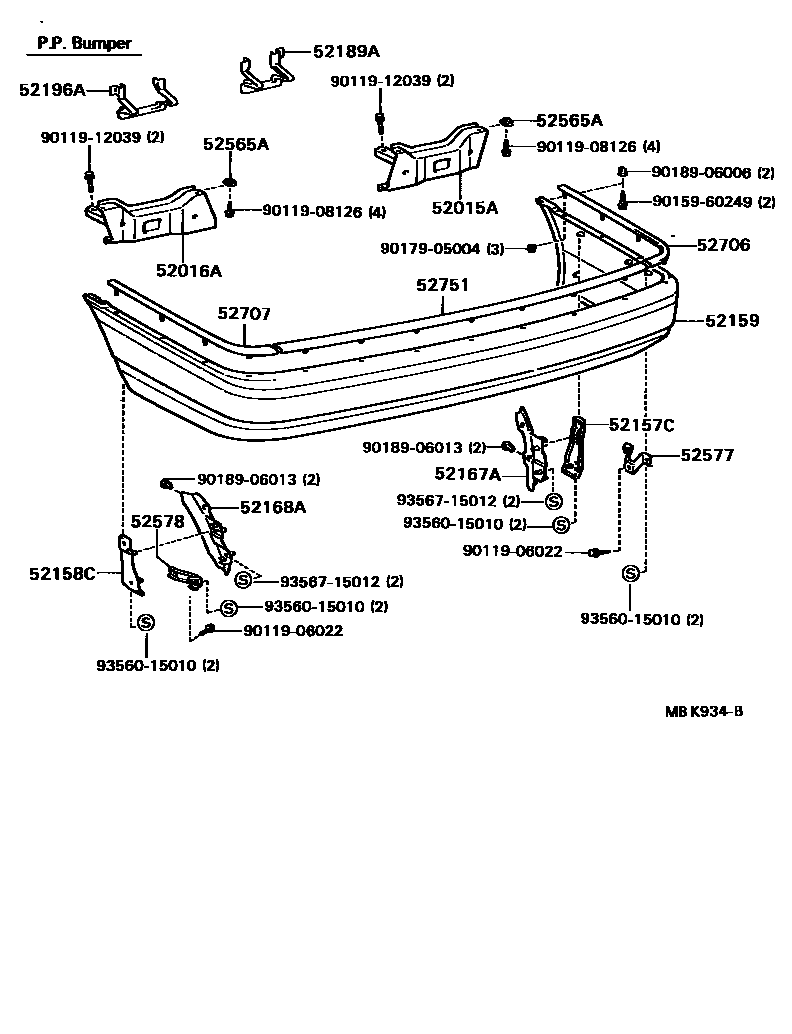

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
W(URETHANE BUMPER)
W/*UB
W(URETHANE BUMPER)
W/*UB
W/P.P.BUMPER
W(P.P. BUMPER)
W/P.P.BUMPER
W(P.P. BUMPER)
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
W/*UB
W(URETHANE BUMPER)
W(URETHANE BUMPER)
W/*UB
W/P.P.BUMPER
W(P.P. BUMPER)
W/P.P.BUMPER
W(P.P. BUMPER)
52159COVER, REAR BUMPER
W(P.P. BUMPER)
W/P.P.BUMPER
W/P.P.BUMPER
W(P.P. BUMPER)
W/*UB
W(URETHANE BUMPER)
W/*UB
W(URETHANE BUMPER)
52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH
W(P.P. BUMPER)
W/P.P.BUMPER
W/*UB
W(URETHANE BUMPER)
52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH
W(P.P. BUMPER)
W/P.P.BUMPER
W/*UB
W(URETHANE BUMPER)
52189APROTECTOR, REAR BUMPER ARM EDGE, RH
52196APROTECTOR, REAR BUMPER ARM EDGE, LH
52565ARETAINER, REAR BUMPER, LOWER
W(P.P. BUMPER)
W/P.P.BUMPER
W/*UB
W(URETHANE BUMPER)
W(URETHANE BUMPER)
W/*UB
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
W(URETHANE BUMPER)
W/*UB
W(P.P. BUMPER)
W/P.P.BUMPER
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
W/*UB
W(URETHANE BUMPER)
W(P.P. BUMPER)
W/P.P.BUMPER
52751MOULDING, REAR BUMPER
W(URETHANE BUMPER)
W/*UB
W/P.P.BUMPER
W(P.P. BUMPER)
9011906022
main90119-06022
9011908126
main90119-08126
9011912039
main90119-12039
9015960249
main90159-60249
9017905004
main90179-05004
9018906006
main90189-06006
9018906013
main90189-06013
9356015010
main93560-15010
9356715012
main93567-15012
24 parts on this diagram · 4 diagrams in section
