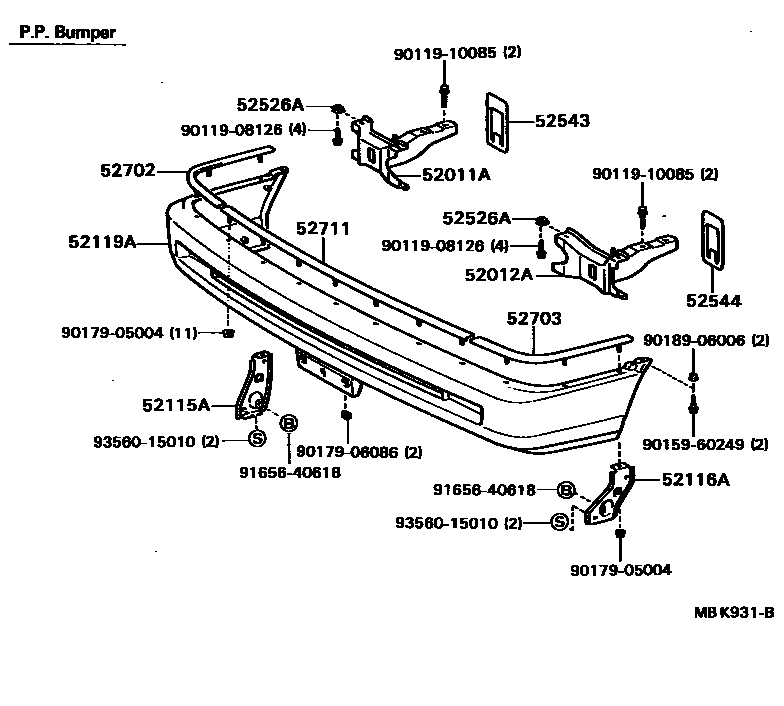

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32070iCV20,SV2#198610-198808

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32050iCV20,SV2#198610-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32030iVZV21198710-198808

W(URETHANE BUMPER)

main52115-32040iCV20,SV2#198710-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32030iVZV21198710-198808

W(URETHANE BUMPER)

main52116-32040iCV20,SV2#198710-198808

52119ACOVER, FRONT BUMPER

main52119-32230iCV20,SV2#198710-198808

W(P.P. BUMPER)

main52119-32250iCV20,SV2#198710-198808

W(P.P. BUMPER & HEADLAMP CLEANER)

main52119-32905iVZV21198710-198808

W(URETHANE BUMPER)

main52119-32906iCV20,SV2#,VZV21198710-198808

W(*UB Z*HC)

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32050iVZV21198710-198808

W(URETHANE BUMPER)

main52565-12040×8iCV20,SV2#198710-198808

52543SEAL, FRONT BUMPER SIDE, RH

main52543-32020iCV20,SV2#,VZV21198710-198808

W(*UB Z*HC)

main52543-32030iCV20,SV2#198710-198808

52544SEAL, FRONT BUMPER SIDE, LH

main52543-32020iCV20,SV2#198610-198710

W/*UB

main52543-32030iCV20,SV2#198610-198710

W/P.P. BUMPER

52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH

main52702-32030iCV20,SV2#198610-198710

W/*UB

main52702-32040iCV20,SV2#198610-198710

W/P.P. BUMPER

52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH

main52703-32030iVZV21198710-198808

W(URETHANE BUMPER)

main52703-32040iCV20,SV2#198610-198710

W/P.P. BUMPER

52711MOULDING, FRONT BUMPER

main52711-32030iVZV21198710-198808

W(URETHANE BUMPER)

main52711-32040iCV20,SV2#198610-198710

W/P.P.BUMPER

9011908126

main90119-08126

9011910085

main90119-10085

9015960249

main90159-60249

9017905004

main90179-05004

9017906086

main90179-06086

9018906006

main90189-06006

9165640618

main91656-40618

9356015010

main93560-15010

19 parts on this diagram · 2 diagrams in section
