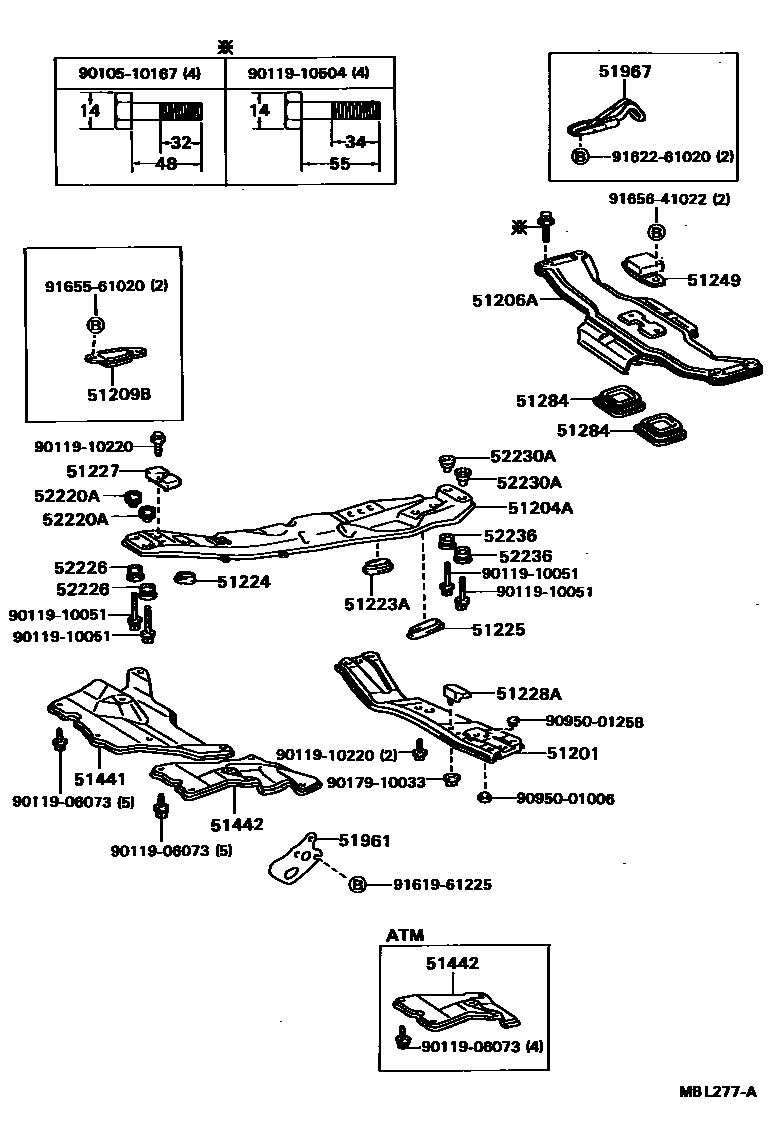

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32010iCV20,SV20,21,VZV21¥12,100198610-198808

sub51201-32020¥12,100

sub51248-32010¥190

sub90950-06055¥200

main51201-32030iSV25¥12,100198710-198808

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32020iCV20,SV2#¥25,300198610-198805

sub51204-32021¥25,500

sub90119-10535¥240

main51204-32021iCV20,SV20,21,VZV21¥25,500198805-198808

sub51204-32022¥25,500

main51204-32040iSV25¥25,300198710-198805

sub51204-32041¥25,500

sub90119-10535¥240

main51204-32041iSV25¥25,500198805-198808

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20010iSV25¥36,400198710-198801

sub51206-20011¥36,200

main51206-20011iSV25¥36,200198801-198808

main51206-32010iCV20,SV2#¥46,600198610-198808

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-32030iSV25¥2,160198710-198808

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iCV20,SV2#,VZV21¥330198610-198808

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iCV20,SV2#¥330198610-198808

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iCV20,SV2#¥390198610-198808

main51225-32020iSV25¥300198710-198808

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-32010iCV20,SV2#¥3,010198610-198808

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-32010iCV20,SV2#¥3,620198610-198808

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iCV20,SV2#¥5,900198610-198808

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-32010iCV20,SV2#¥520198610-198808

51441COVER, ENGINE UNDER, NO.1

main51441-32030iCV20,SV2#¥5,700198610-198808

51442COVER, ENGINE UNDER, NO.2

main51442-32030iCV20,SV2#..5F¥6,100198610-198808

main51442-32040iSV2#..4FC¥5,100198610-198808

51961HOOK, NO.1

main51963-32020iCV20,SV2#¥1,960198610-198808

51967HOOK, TRANSPORT, REAR

main51095-32020iCV20,SV2#..SED¥5,400198610-198808

RH

main51095-32030iCV20,SV20,21..WG¥5,900198610-198808

RH

main51095-32040iSV25¥5,400198710-198808

main51096-32010iCV20,SV2#..SED¥5,400198610-198808

LH

main51096-32020iCV20,SV2#..WG¥5,900198610-198808

LH

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32040iCV20,SV2#¥1,840198610-198808

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iCV20,SV2#,VZV21¥670198610-198808

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32030iCV20,SV2#¥1,780198610-198808

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32020iCV20,SV2#¥710198610-198808

9010510167

main90105-10167¥210

9011906073

main90119-06073¥120

9011910051

main90119-10051¥210

9011910220

main90119-10220¥140

9011910504

main90119-10504¥240

9017910033

main90179-10033¥130

9095001006

main90950-01006¥260

9095001258

main90950-01258¥170

9161961225

main91619-61225¥200

9162261020

main91622-61020¥180

9165561020

main91655-61020¥190

9165641022

main91656-41022¥170

31 parts on this diagram · 2 diagrams in section
