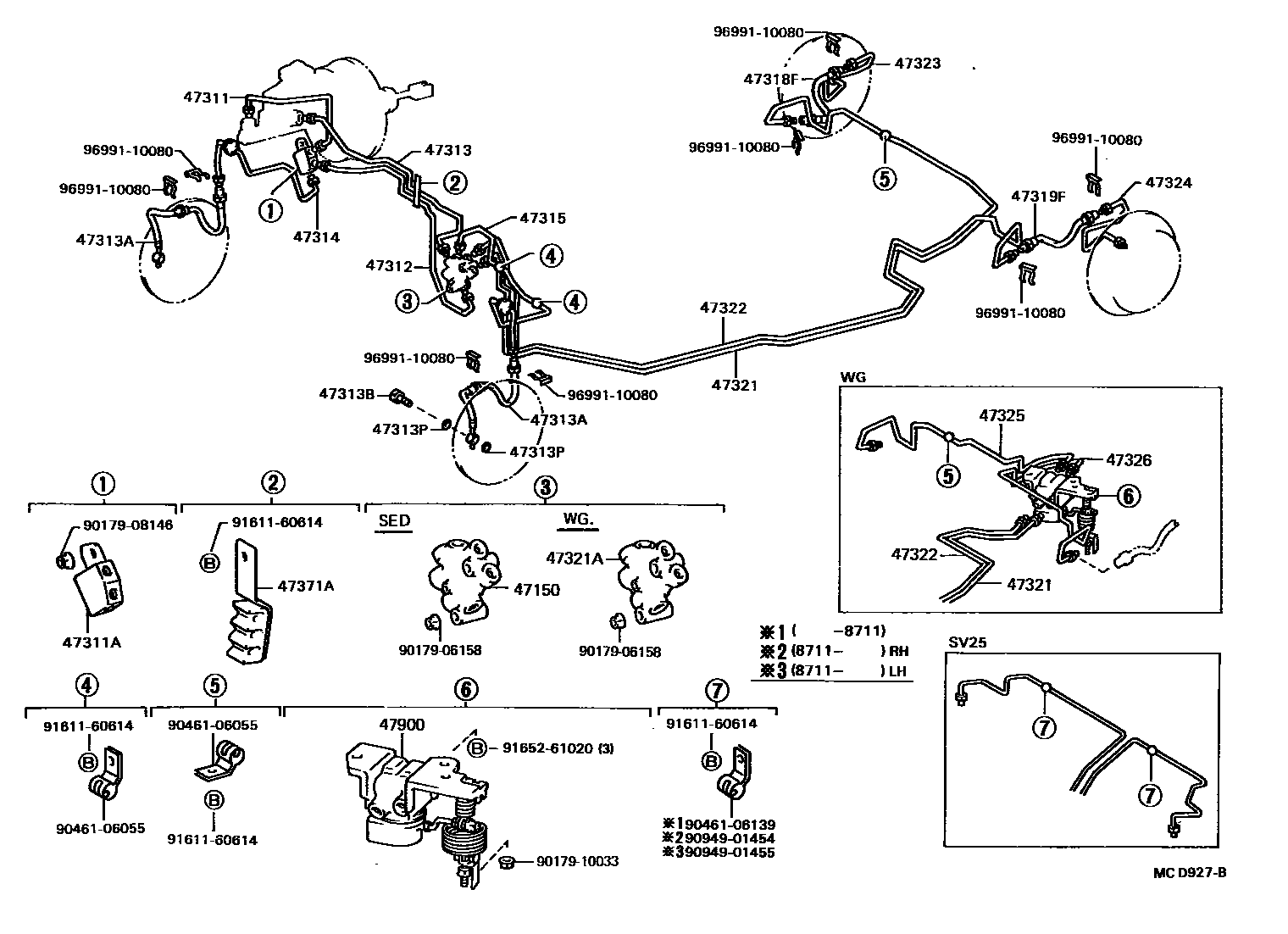

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47150VALVE ASSY, PROPORTIONING

main47150-12060iSV21..SED..RHD..4FC198610-198808

HONG KONG SPEC

sub47150-12270

main47150-16040iCV20,SV20,21,VZV21..SED198801-198808

sub47150-12260

main47150-20130iCV20,SV2#..SED198610-198710

sub47150-12240

main47150-20160iSV25198710-198808

main47150-32060iSV21198710-198802

W(ANTI-LOCK BRAKE SYSTEM)

main47150-32070iSV25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47150-32070iSV21198708-198710

W/*66

main47150-32080iSV21,VZV21198802-198808

W(ANTI-LOCK BRAKE SYSTEM)

47311TUBE, FRONT BRAKE, NO.1

main47311-32060iCV20,SV2#..LHD198610-198808

main47311-32080iCV20,SV21,25..RHD198610-198808

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10147iSV21,25..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main90413-10165iCV20,SV2#,VZV21..LHD198610-198808

main90413-10193iCV20,SV21,25..RHD198610-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-32080iCV20..RHD198610-198808

main47312-32090iSV21..RHD198610-198808

main47312-32100iSV21..LHD198610-198801

sub47312-32101

main47312-32101iSV21,25,VZV21..LHD198802-198808

main47312-32110iCV20,SV20..LHD198610-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-32070iCV20..RHD198610-198808

main47313-32080iSV21..RHD198610-198808

main47313-32090iSV21..LHD198610-198808

main47313-32100iCV20,SV20..LHD198610-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iCV20,SV2#198610-198808

sub90947-02987

main90947-02540iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub90947-02987

main90947-02540iSV21198708-198710

W/*66

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCV20,SV2#,VZV21198610-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCV20,SV2#,VZV21198610-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-32070iCV20..RHD198610-198808

main47314-32080iSV21,25..RHD198610-198808

main47314-32090iSV21,25..LHD198610-198801

sub47314-32091

main47314-32091iSV21,25,VZV21..LHD198802-198808

main47314-32100iCV20,SV20..LHD198610-198808

47315TUBE, FRONT BRAKE, NO.5

main47315-32060iCV20,SV21,25..RHD198610-198808

main47315-32070iCV20,SV2#,VZV21..LHD198610-198808

main47315-32080iSV21..RHD198708-198710

W/*66

main47315-32080iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47315-32100iSV21..LHD198708-198710

W/*66

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iSV21198708-198808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iCV20,SV2#198610-198808

main90947-02498iVZV21198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main90947-02498iSV21198708-198710

W/*66

47319TUBE, FRONT BRAKE, NO.9

main47319-32010iSV21..RHD198708-198808

main47319-32020iSV21..LHD198708-198710

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iCV20,SV2#198610-198808

main90947-02498iSV21198708-198710

W/*66

main90947-02498iVZV21198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47321TUBE, REAR BRAKE, NO.1

main47321-32050iCV20,SV2#..SED198610-198708

main47321-32060iCV20,SV2#..WG198610-198808

main47321-32100iSV25198710-198808

main47321-32110iSV21..WG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47321-32110iCV20,SV2#..SED198708-198710

W/*66

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10205iCV20,SV2#..WG198610-198808

47322TUBE, REAR BRAKE, NO.2

main47322-32040iCV20,SV2#..SED198610-198708

main47322-32040iSV21198708-198708

W/*66

main47322-32050iCV20,SV2#..WG198610-198808

main47322-32100iCV20,SV20,21,VZV21..SED198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47322-32100iCV20,SV2#..SED198708-198710

W/*66

47323TUBE, REAR BRAKE, NO.3

main47323-32030iSV21..RHD198708-198710

W/*66

main47323-32030iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47323-32040iCV20,SV2#..SED198610-198808

main47323-32050iCV20,SV2#..WG198610-198808

main47323-32070iSV21..LHD198708-198710

W/*66

47324TUBE, REAR BRAKE, NO.4

main47324-32030iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47324-32030iSV21..RHD198708-198710

W/*66

main47324-32040iCV20,SV20,21..SED198610-198808

main47324-32050iCV20,SV2#..WG198610-198808

main47324-32070iSV21..LHD198708-198710

W/*66

47325TUBE, REAR BRAKE, NO.5

main47325-32030iCV20,SV2#..WG198610-198808

47326TUBE, REAR BRAKE, NO.6

main47326-32010iCV20,SV2#..WG198610-198808

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30010iSV21,25,VZV21..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47371-30010iCV20,SV2#..LHD198610-198710

main47371-30010iSV21..LHD198708-198710

W/*66

main47371-32010iCV20,SV21,25..RHD198610-198808

main47371-32020iSV21..RHD198708-198710

W/*66

main47371-32020iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-32010iCV20,SV2#..WG198610-198710

sub47900-32011

9017906158

main90179-06158

9017908146

main90179-08146

9017910033

main90179-10033

9046106055

main90461-06055

9046106139

main90461-06139

9094901454

main90949-01454

9094901455

main90949-01455

9161160614

main91611-60614

9165261020

main91652-61020

9699110080

main96991-10080

33 parts on this diagram · 5 diagrams in section
