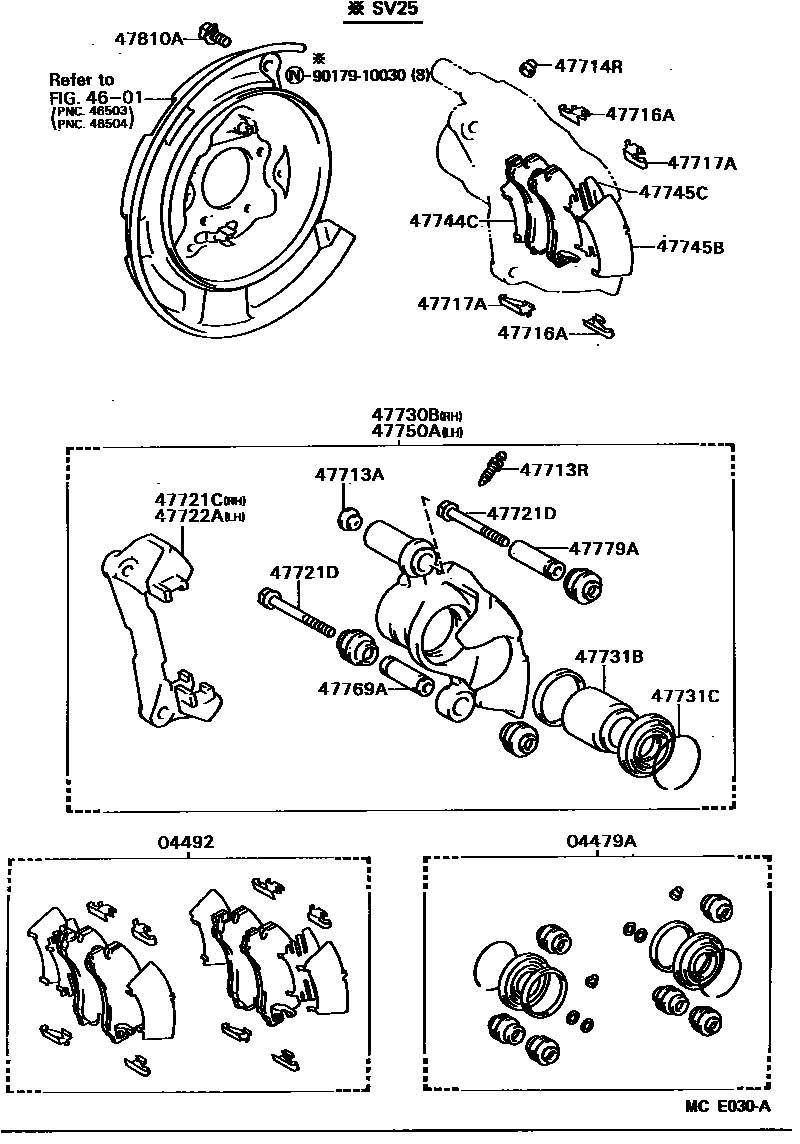

REAR DISC BRAKE CALIPER & DUST COVER
04492PAD KIT, DISC BRAKE, REAR
sub04466-20080
4601
47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)
47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
sub47716-33070
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
sub47717-33050
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.25PX58-25,*8-1.25PX58-25
*8-1.25PX58-25,W(ANTI-LOCK BRAKE SYSTEM)
*8-1.25PX58-25
*8-1.25PX68-30,*8-1.25PX-30,W(ANTI-LOCK BRAKE SYSTEM)
*8-1.25PX68-30,*8-1.25PX68-30
*8-1.25PX68-30,*8-1.25PX68-30,W(ANTI-LOCK BRAKE SYSTEM)
*8-1.25PX68-30,*8-1.25PX-30
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47731BPISTON, REAR DISC BRAKE
W(ANTI-LOCK BRAKE SYSTEM)
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
W(ANTI-LOCK BRAKE SYSTEM)
47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
9017910030
main90179-10030
22 parts on this diagram · 2 diagrams in section
