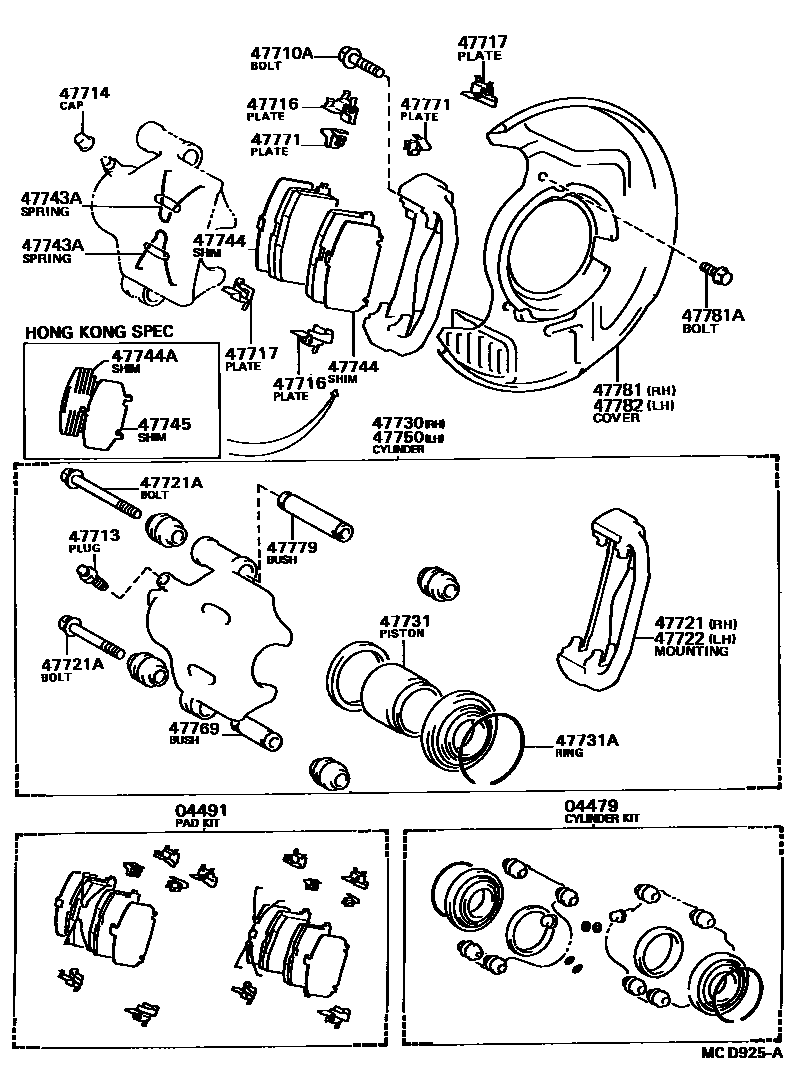

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1E56F5 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20110iSV25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main04479-20110iSV21198708-198710

W/*66

main04479-32030iCV20,SV2#,VZV21198610-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-20380iSV25;SV21..EUG198710-198801

W(ANTI-LOCK BRAKE SYSTEM)

sub04491-20740

main04491-20380iSV21198708-198710

W/*66

sub04491-20740

main04491-20380iSV21..FRG198711-198808

W(ANTI-L0CK BRAKE SYSTEM)

sub04491-20740

main04491-20390iCV20,SV20,21198710-198808

sub04491-20391

main04491-32131iSV21..SED..RHD..4FC198610-198710

HONGKONG SPEC

sub04491-32132

sub04491-32291

main04491-32150iCV20,SV2#198610-198611

sub04491-32151

main04491-32151iCV20,SV2#198611-198801

sub04491-32152

main04491-32240iSV21..FRG198706-198801

SWEDEN SPEC

sub04491-32241

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iCV20,SV2#,VZV21198610-198808

*12-1.25PX25.5-23

main90119-12040iSV21,25198710-198711

*12-1.25PX25.8-19.5,W(ANTI-LOCK BRAKE SYSTEM)

main90119-12040iSV21198708-198710

*12-1.25PX25.8-19.5,W/*66

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCV20,SV2#198610-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCV20,SV2#198610-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20080iSV25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47716-20080iSV21198708-198710

W/*66

main47716-32040iCV20,SV2#198610-198710

sub47716-32041

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32040iCV20,SV2#198610-198710

sub47717-32041

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iSV25198710-198808

main47721-20160iSV25;SV21..EUG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47721-20160iSV21198708-198710

W/*66

main47721-32060iCV20,SV2#198610-198801

main47721-32060iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iCV20,SV2#,VZV21198710-198808

*10-1.25PX65.5-30

main90119-10014iCV20,SV2#198610-198710

*10-1.25PX65.5-30,*10-1.25PX65.5-30

main90119-10249iCV20,SV2#,VZV21198710-198808

*10-1.25PX95.5-30

main90119-10249iCV20,SV2#198610-198710

*10-1.25PX95.5-30,*10-1.25PX95.5-30

main90119-10385iSV21198708-198710

*10-1.25PX61-20,W/*66

main90119-10403iSV21..FRG198710-198808

*10-1.25PX65-20

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iCV20,SV2#,VZV21198710-198808

main47721-20160iSV21,25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47721-20160iSV21198708-198710

W/*66

main47721-32060iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

main47721-32060iCV20,SV2#198610-198801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iCV20,SV2#,VZV21198710-198808

main47730-20270iSV25;SV21..EUG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47730-20270iSV21198708-198710

W/*66

main47730-32070iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

main47730-32070iCV20,SV2#198610-198801

47731PISTON, FRONT DISC BRAKE

main47731-30070iSV21..FRG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47731-30070iSV21198708-198710

W/*66

main47731-32040iCV20,SV2#,VZV21198610-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iSV21198708-198710

W/*66

main90522-49001iSV21..FRG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main90522-66001iCV20,SV2#198610-198808

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020iCV20,SV20,21198610-198801

main47743-32020iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

main47743-32030iCV20,SV2#,VZV21198710-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20080iSV21..FRG198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47744-20080iSV21198708-198710

W/*66

main47744-32040iCV20,SV2#198610-198704

sub47744-32041

main47744-32041iCV20,SV20,21198704-198808

main47744-32041iSV21..SED..RHD..4FC198710-198808

HONG KONG SPEC

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32020iSV21..SED..RHD..4FC198610-198704

sub47742-32021

main47742-32021iSV21..SED..RHD..4FC198704-198808

main47742-32021iSV21..SED..RHD..4FC198710-198808

HONG KONG SPEC

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32020iSV21..SED..RHD..4FC198610-198808

main47745-32020iSV21..SED..RHD..4FC198710-198808

HONG KONG SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iSV25198710-198808

main47750-20270iSV21,25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47750-20270iSV21198708-198710

W/*66

main47750-32070iCV20,SV20,21198610-198801

main47750-32070iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iSV21198708-198710

W/*66

main47769-28020iSV25198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47769-40010iCV20,SV2#198610-198808

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iSV21..FRG198706-198801

SWEDEN SPEC

main47771-12050iSV25198710-198808

main47771-32010iCV20,SV20,21198610-198801

main47771-32010iSV21..SED..RHD..4FC198801-198808

HONG KONG SPEC

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iCV20,SV2#198610-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-20040iSV21198708-198710

W/*66

main47703-20040iSV21,25198710-198711

W(ANTI-LOCK BRAKE SYSTEM)

main47703-32010iCV20,SV2#198610-198703

sub47703-32011

main47703-32011iCV20,SV2#198703-198808

sub47703-32040

main47703-32020iSV21,VZV21198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub47703-32021

main47703-32030iSV21,25198711-198808

W(ANTI-LOCK BRAKE SYSTEM)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCV20,SV2#198610-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-20040iSV21198708-198710

W/*66

main47704-20040iSV21,25198710-198711

W(ANTI-LOCK BRAKE SYSTEM)

main47704-32010iCV20,SV2#198610-198703

sub47704-32011

main47704-32011iCV20,SV2#198703-198808

sub47704-32040

main47704-32020iSV21,VZV21198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub47704-32021

main47704-32030iSV25198711-198808

W(ANTI-LOCK BRAKE SYSTEM)

24 parts on this diagram · 4 diagrams in section
