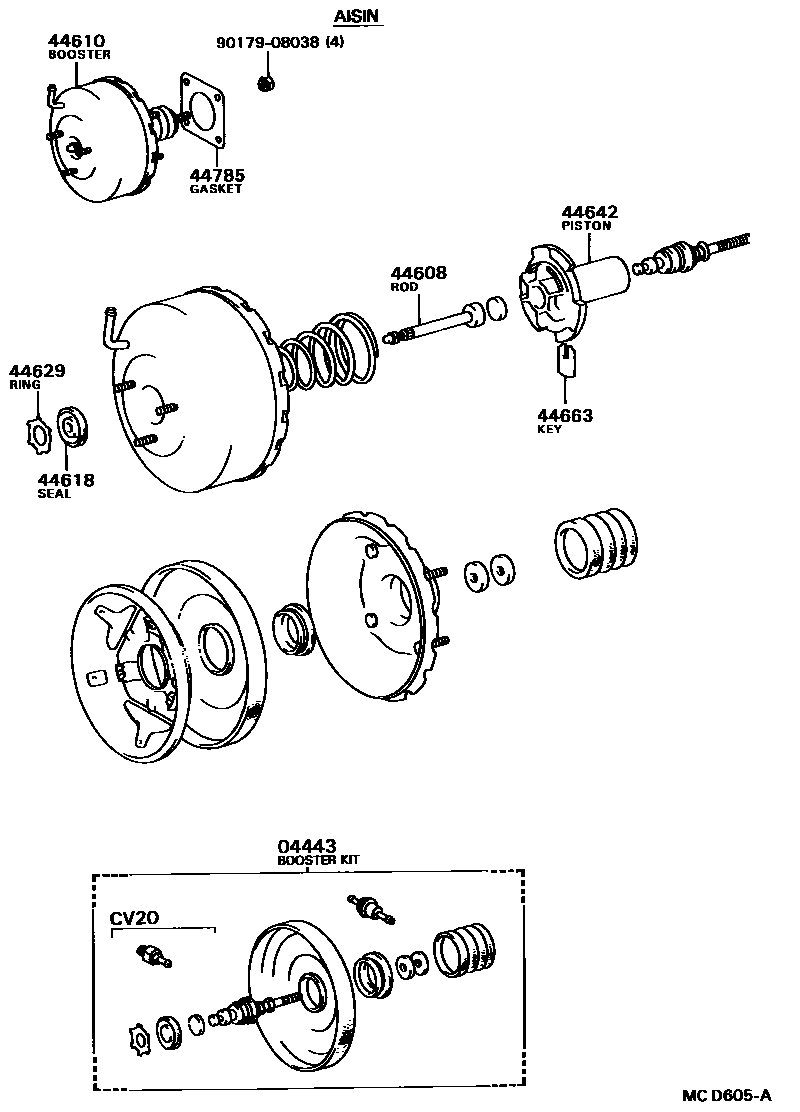

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-20440iSV21..RHD198610-198808

main04443-32160iSV25..RHD198710-198808

JKC

main04443-32170iSV25,VZV21..LHD198710-198808

JKC

main04443-32200iSV21..LHD198708-198710

W/*66

main04443-32210iSV20198610-198710

main04443-32220iCV20198610-198710

main04443-32240iSV25..RHD198710-198808

AISIN

main04443-32250iSV21..LHD198610-198808

main04443-32310iSV21..RHD198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

main04443-32360iSV21,VZV21..LHD198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCV20,SV20198610-198808

main44606-20800iSV21..LHD198708-198710

W/*66

main44608-17090iSV25,VZV21198710-198808

JKC

44610BOOSTER ASSY, BRAKE

main44610-32140iSV21..RHD198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

main44610-32190iSV21..LHD198708-198710

W/*66

main44610-32200iCV20,SV20..LHD198610-198808

main44610-32210iCV20..RHD198610-198808

main44610-32220iSV21..RHD198610-198808

main44610-32230iSV21..LHD198610-198808

main44610-32250iSV21..RHD198710-198801

W(ANTI-LOCK BRAKE SYSTEM)

main44610-32300iSV21,VZV21..LHD198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

44618SEAL, BOOSTER BODY

main44621-14030iSV21198610-198710

main44621-28120iCV20,SV20198610-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iCV20,SV20198610-198808

main44628-60010iSV21198610-198710

44642PISTON, BRAKE BOOSTER

main44642-20800iSV21198610-198710

main44642-32030iCV20,SV20198610-198808

44663KEY, VALVE STOPPER

main44635-20800iSV21,25,VZV21198710-198808

main44635-28120iCV20,SV20198610-198808

44785GASKET, BRAKE BOOSTER

main44785-32010iCV20,SV2#198610-198710

9017908038

main90179-08038

9 parts on this diagram · 6 diagrams in section
