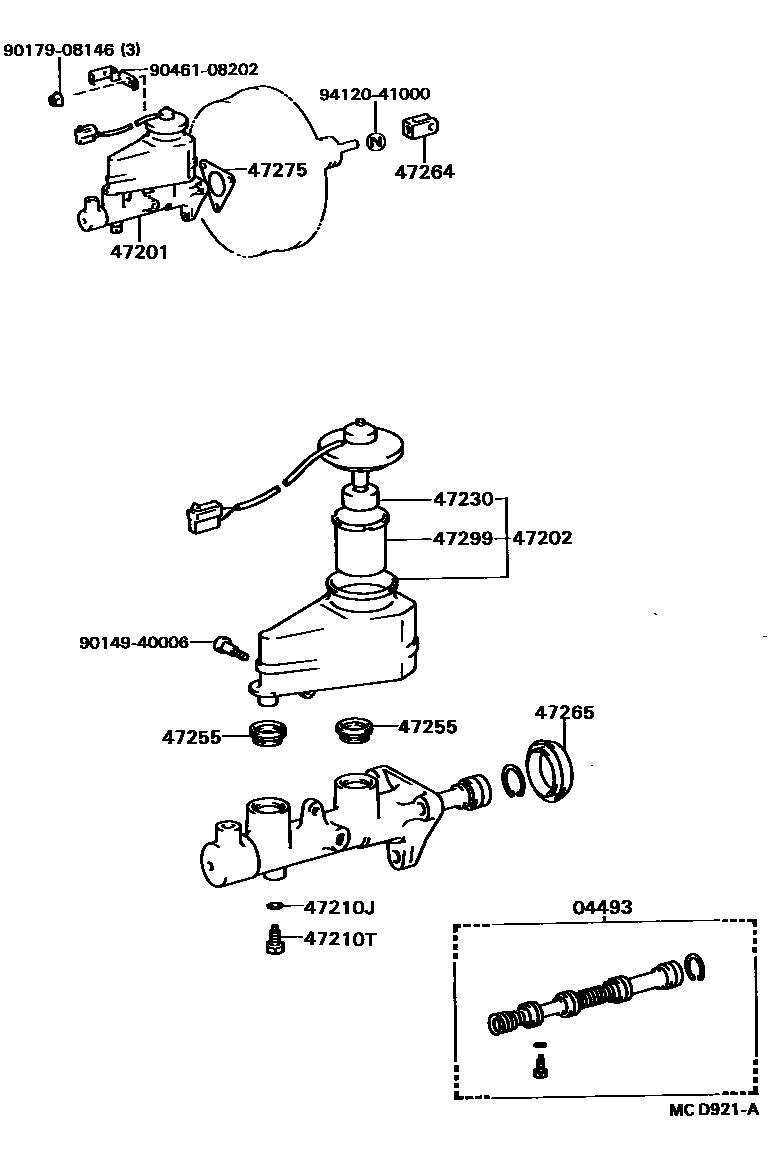

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-32040iCV20,SV20198610-198808

sub04493-33030

main04493-32050iSV21198610-198808

sub04493-33010

main04493-32061iSV21,25..RHD198801-198808

W(ANTI-LOCK BRAKE SYSTEM)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-32140iCV20,SV25..RHD198610-198808

main47201-32150iCV20,SV20..LHD198610-198808

main47201-32170iSV21..LHD198610-198808

main47201-32180iSV21..RHD198610-198808

main47201-32190iSV21..FRG198610-198706

SWEDEN SPEC

main47201-32200iSV21..RHD198708-198710

W/*66

main47201-32200iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47201-32210iSV21,25,VZV21..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47201-32210iSV21..LHD198708-198710

W/*66

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-32070iCV20,SV21..RHD198610-198808

main47220-32010iSV21..FRG198610-198706

SWEDEN SPEC

main47220-32020iCV20,SV2#..LHD198610-198710

main47220-32020iCV20,SV20,21..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCV20,SV2#198610-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iSV21198708-198710

W/*66

main90109-06008iSV21,25..RHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main90109-06077iCV20,SV2#198610-198808

main90109-06144iSV25..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iCV20,SV2#..LHD198610-198710

main47230-16010iCV20,SV20,21..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47230-32010iSV21..FRG198610-198706

SWEDEN SPEC

main84460-20110iCV20,SV21..RHD198610-198808

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iSV25,VZV21..LHD198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main47255-16010iCV20,SV2#198610-198710

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCV20,SV20198610-198808

main47264-20040iSV21198610-198808

47265BOOT, MASTER CYLINDER

main47265-20050iCV20,SV2#198610-198808

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iCV20,SV2#198610-198808

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iCV20,SV2#..LHD198610-198808

main47299-32010iCV20,SV21..RHD198610-198808

9014940006

main90149-40006

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

15 parts on this diagram · 3 diagrams in section
