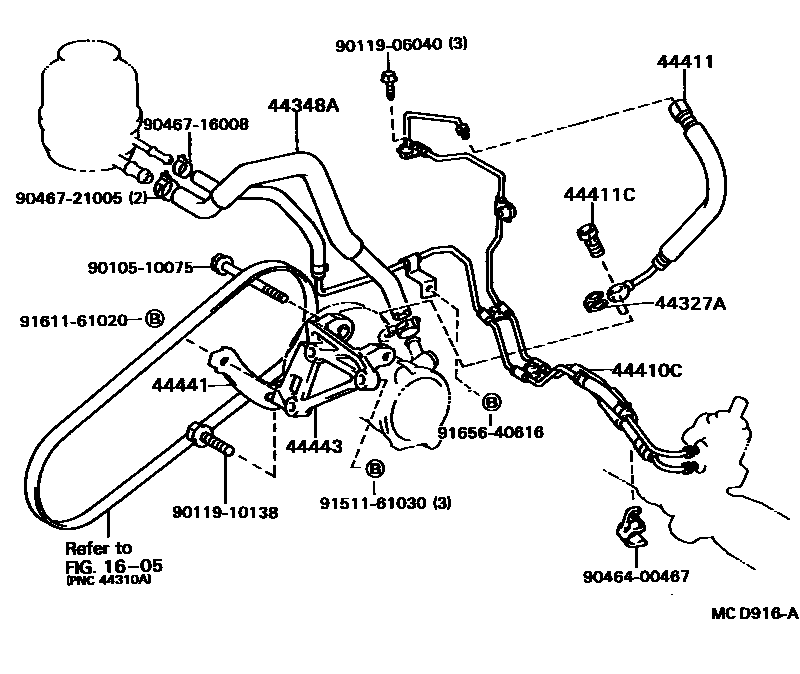

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV20,SV2#¥260198610-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32050iSV21¥6,300198610-198808

main44348-32060iCV20¥4,940198610-198808

main44348-32070iSV20¥5,500198610-198808

main44348-32090iVZV21¥7,400198802-198808

44410TUBE ASSY, PRESSURE FEED

main44410-32320iVZV21¥24,300198802-198808

sub44410-32321¥24,300

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32110iSV21,25..RHD¥15,500198610-198808

main44410-32140iCV20..RHD¥30,000198610-198808

main44410-32150iSV20,21..LHD¥27,400198710-198808

W(POWER STEERING)

main44410-32150iSV2#..LHD¥27,400198610-198710

main44410-32160iCV20..LHD¥41,800198610-198808

sub44410-32161¥44,900

main44410-32210iSV25..LHD¥34,400198710-198808

main44410-32220iSV25..LHD¥32,000198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main44410-32230iSV21..LHD¥30,300198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

main44410-32230iSV21..LHD¥30,300198708-198710

W/*66

44411HOSE, PRESSURE FEED

main44411-32030iSV21..RHD¥10,800198610-198808

main44411-32050iSV20¥10,800198610-198808

main44411-32070iVZV21¥13,200198802-198808

sub44411-32071¥13,200

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV21..LHD¥610198610-198808

44441BRACKET, PUMP, FRONT

main44441-32010iSV20,21..LHD¥1,130198610-198808

44443BRACKET, PUMP

main44443-20050iSV25;SV21..RHD¥5,300198610-198808

main44443-20060iSV20¥5,300198610-198808

sub44443-20050¥5,300

main44443-32040iVZV21¥4,760198002-198808

sub44443-32041¥4,780

9010510075

main90105-10075¥180

9011906040

main90119-06040¥130

9011910138

main90119-10138¥260

9046400467

main90464-00467¥410

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151161030

main91511-61030¥240

9161161020

main91611-61020¥240

9165640616

main91656-40616¥100

18 parts on this diagram · 7 diagrams in section
