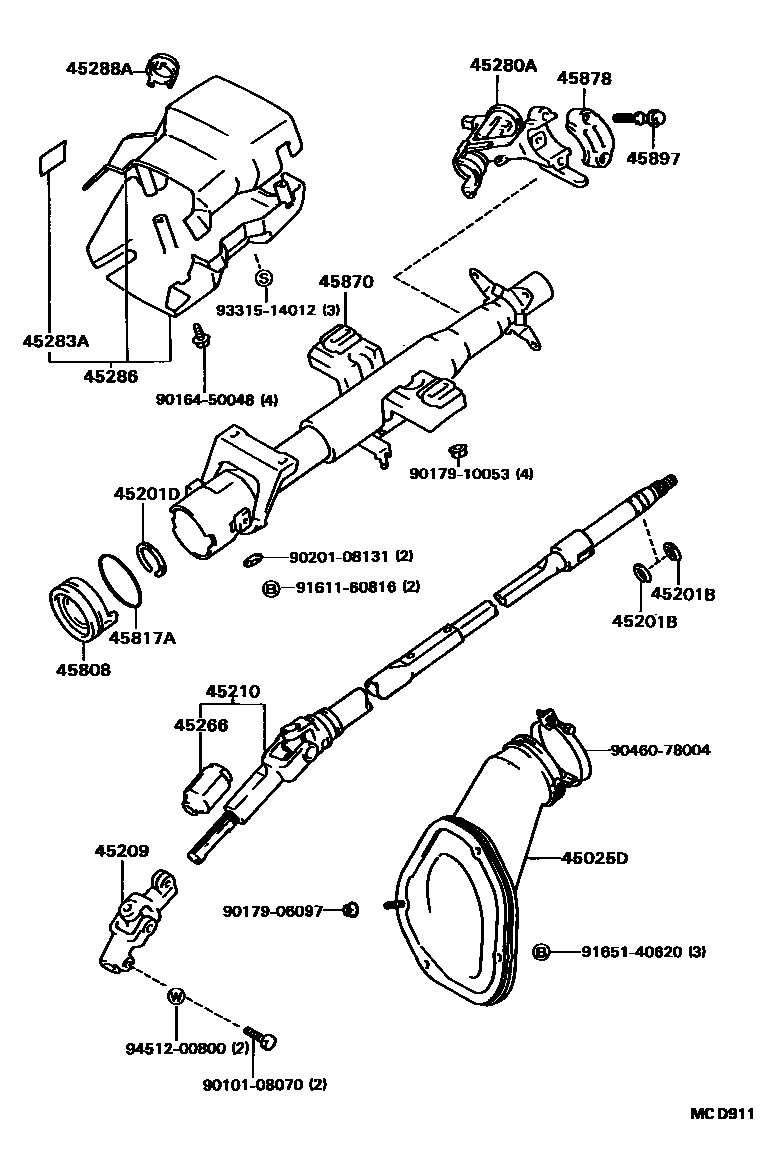

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,W(TILT STEERING)
T=1.20,T=1.2
T=1.20,W(TILT STEERING & POWER STEERING)
T=1.20
T=1.35-1.45
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
W(TILT STEERING)
W/TILT STEERING
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
W/TILT STEERING
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45288ASPACER, COLUMN COVER
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
sub45808-32020
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
W(TILT STEERING)
W/TILT STEERING
9010108070
main90101-08070
9016450048
main90164-50048
9017906097
main90179-06097
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161160816
main91611-60816
9165140620
main91651-40620
9331514012
main93315-14012
9451200800
main94512-00800
25 parts on this diagram · 4 diagrams in section
