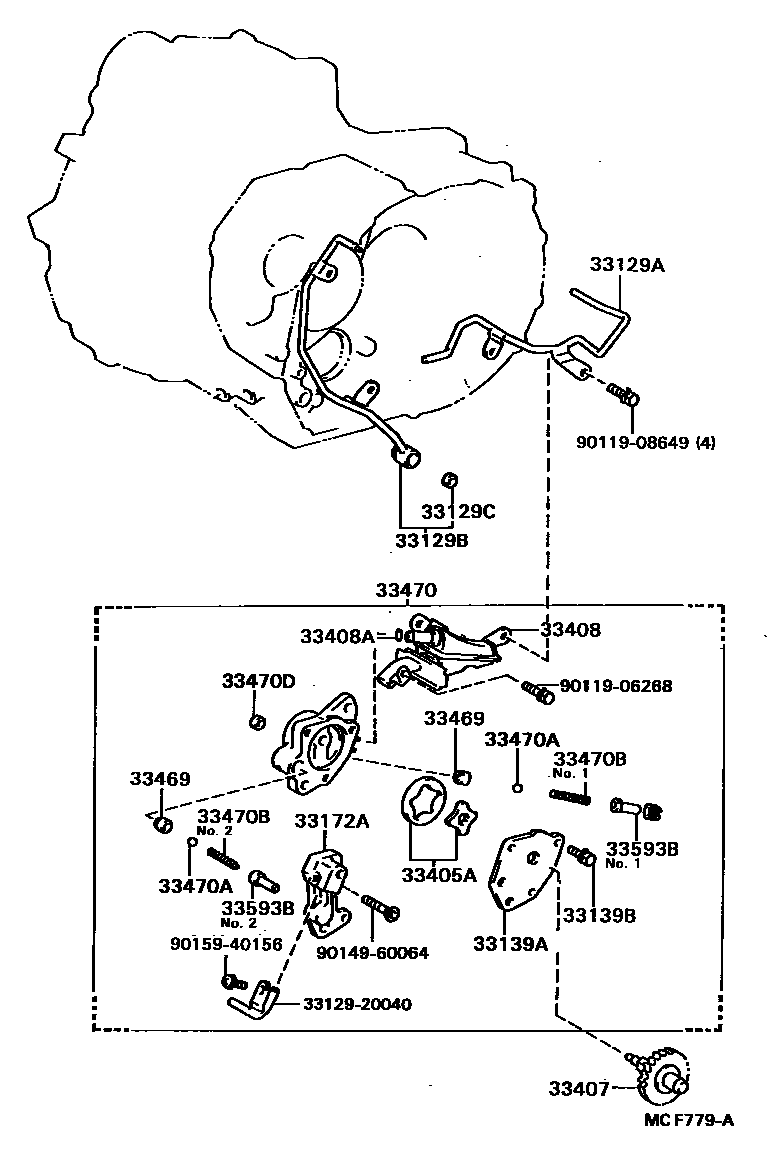

OIL PUMP, OIL COOLER & PIPE (MTM)

0001 1E56F2,E56F5 0002 1E56F2,E56F5 0003 1E52

33129APIPE, MANUAL TRANSMISSION OIL, NO.1

main33129-12010iVZV21..5F¥1,180198802-198808

main33129-20050iSV25¥1,060198710-198808

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-20031iSV25,VZV21..5F¥860198710-198808

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004iSV25,VZV21..5F¥120198710-198808

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20010iVZV21..5F¥850198802-198808

main33139-20020iSV25¥850198710-198808

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199iSV25¥70198710-198808

L=16

main90119-06199iVZV21..5F¥70198802-198808

main90119-06268iSV25¥130198710-198808

33172ABY-PASS, TRANSMISSION OIL PUMP

main33172-20020iSV25¥1,860198710-198808

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20010iSV25,VZV21..5F¥2,320198710-198808

main33405-20020iSV25¥2,840198804-198808

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-12011iVZV21..5F¥14,500198802-198808

main33407-12021iSV25..EUG¥14,500198711-198808

main33407-12030iSV25..FRG¥14,400198710-198711

sub33407-12031¥14,500

main33407-12031iSV25..FRG¥14,500198711-198808

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20010iVZV21..5F¥4,090198802-198808

sub33408-20011¥4,120

main33408-20020iSV25¥4,090198710-198808

sub33408-20021¥4,120

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012iSV25,VZV21..5F¥160198710-198808

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-20010iVZV21..5F¥380198802-198808

main33469-20020iSV25198710-198808

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-20010iVZV21..5F¥18,800198802-198808

sub33470-12010¥18,800

main33470-20020iSV25¥17,000198710-198804

sub33470-20021¥18,500

main33470-20021iSV25¥18,500198804-198808

sub33470-20030¥18,800

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-09001iSV25¥160198710-198808

main90360-10003iVZV21..5F¥100198802-198808

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-07062iSV25¥160198710-198808

N0.2

main90501-08092iVZV21..5F¥160198802-198808

main90501-08094iSV25¥160198710-198808

N0.1

33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)

main90430-09004iSV25¥120198710-198808

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20010iVZV21..5F¥380198802-198808

main33593-20020iSV25¥380198710-198808

NO.2

main33593-20030iSV25¥380198710-198808

NO.1

3312920040COVER, TRANSMISSION CASE, RH

main33129-20040¥280

9011906268

main90119-06268¥130

9011908649

main90119-08649¥140

9014960064

main90149-60064¥120

9015940156

main90159-40156¥120

21 parts on this diagram · 3 diagrams in section
