TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

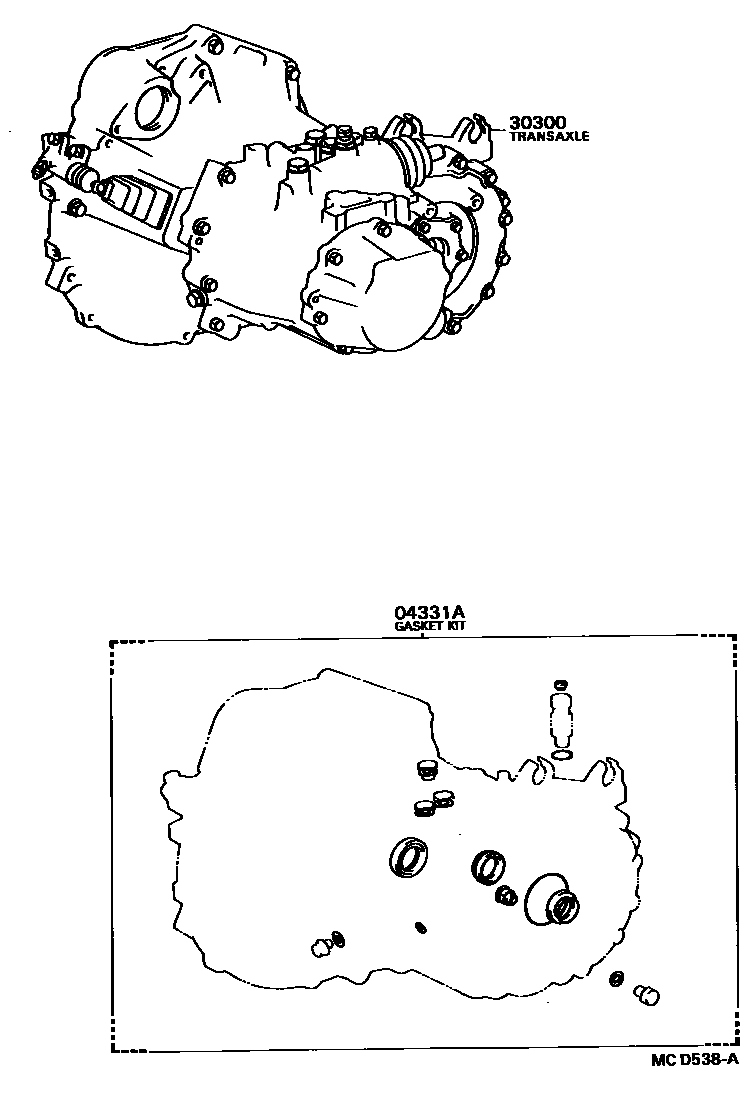

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-17010i198802-198808
main04331-32010i198610-198804
main04331-32011i198804-198808
main04331-32020i198710-198808
main04331-32030i198710-198808
W(ANTI-LOCK BRAKE SYSTEM)
30300TRANSAXLE ASSY, MANUAL
main30300-32170i198610-198808
sub30300-32171
main30300-32190i198610-198808
sub30300-32191
main30300-32200i198610-198808
sub30300-32201
main30300-32240i198610-198808
sub30300-32241
main30300-32270i198710
sub30300-32490
sub84210-60021
main30300-32370i198710
sub30300-32500
sub84210-60021
main30300-32380i198710
W(ANTI-LOCK BRAKE SYSTEM)
sub30300-32510
sub84210-60021
main30300-32390i198710
W(ANTI-LOCK BRAKE SYSTEM)
sub30300-32520
sub84210-60021
main30300-32400i198802-198808
sub30300-32460
sub84210-60021

2 parts on this diagram · 2 diagrams in section
