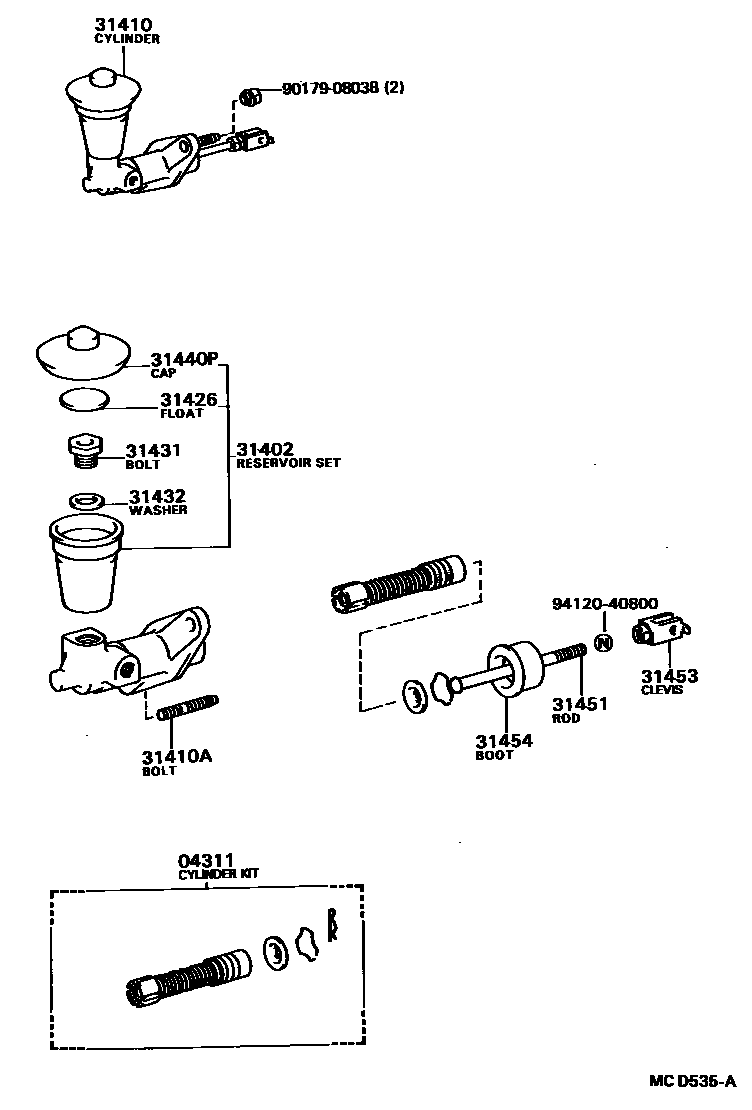

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iCV20,SV21..RHD198611-198704

sub04311-14031

main04311-14031iCV20,SV2#..5F198704-198711

sub04311-14032

main04311-17030iSV21..RHD..5F198610-198611

sub04311-17031

main04311-30080iCV20,SV2#..LHD..5F198610-198611

sub04311-14020

main04311-32030iCV20,SV2#,VZV21..5F198711-198808

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iCV20,SV2#..LHD..5F198610-198808

main31402-30060iCV20,SV21,25..RHD..5F198610-198808

sub31402-30061

sub47231-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-32030iCV20,SV2#..LHD..5F198610-198704

sub31410-32031

main31410-32031iCV20,SV2#..LHD..5F198704-198711

sub31410-32032

main31410-32032iCV20,SV2#,VZV21..LHD..5F198711-198808

main31410-32060iSV21..RHD..5F198610-198704

sub31410-32061

main31410-32061iSV21..RHD..5F198704-198711

sub31410-32072

main31410-32062iSV21..RHD..5F198711-198808

sub31410-32072

main31410-32070iCV20..RHD198610-198704

sub31410-32071

main31410-32071iCV20,SV25..RHD198704-198711

sub31410-32072

main31410-32072iCV20,SV25..RHD198711-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iCV20,SV2#..5F198610-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCV20,SV2#..5F198610-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iCV20,SV2#..5F198610-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iCV20,SV2#..5F198610-198808

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCV20,SV2#..5F198610-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-32020iSV21..LHD..5F;CV20,SV20,25,VZV21..5F198711-198808

CYLINDER BODY ALUMI

main31451-32040iCV20..RHD198610-198711

main31451-32050iSV21..RHD..5F198610-198711

main31451-32051iSV21..RHD..5F198711-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCV20..RHD198610-198710

sub31404-28012

main31453-35010iSV21..RHD..5F198610-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iCV20,SV2#..5F198610-198808

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
