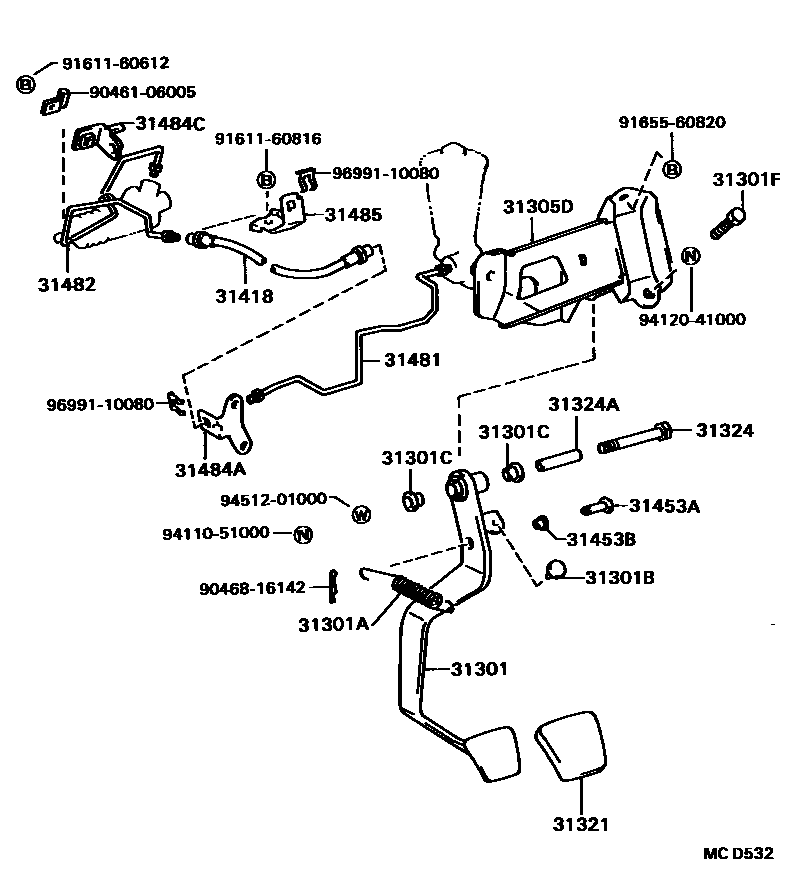

CLUTCH PEDAL & FLEXIBLE HOSE
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31305DSUPPORT SUB-ASSY, CLUTCH PEDAL
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=30
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
sub31481-32062
W(ANTI-LOCK BRAKE SYSTEM)
W(ANTI-LOCK BRAKE SYSTEM)
31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484CBRACKET, CLUTCH TUBE, NO.1
31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
9046106005
main90461-06005
9046816142
main90468-16142
9161160612
main91611-60612
9161160816
main91611-60816
9165560820
main91655-60820
9411051000
main94110-51000
9412041000
main94120-41000
9451201000
main94512-01000
9699110080
main96991-10080
26 parts on this diagram · 3 diagrams in section
