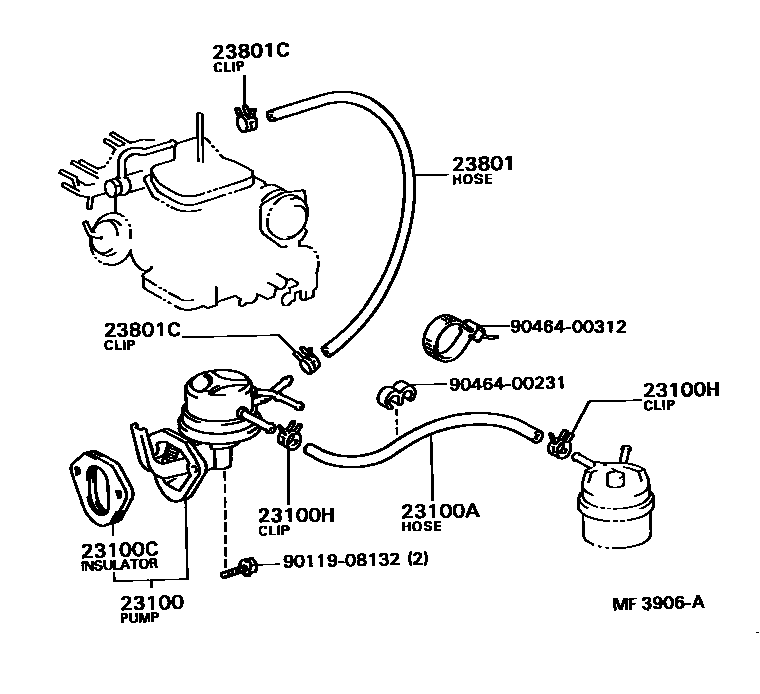

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-69065i1S..SV20198610-198808

23100AHOSE, FUEL

main23271-63010i1S..SV20198610-198808

23100CINSULATOR, FUEL PUMP

main23915-63020i1S..SV20198610-198808

sub23915-16010

23100HCLIP(FOR FUEL HOSE)

main96132-30600i1S..SV20198610

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06036i1S..SV20198610-198702

L=400(*H,L=360)

sub95333-06040

main95333-06040i1S..SV20198702-198710

L=400,*H,L=360

main95333-06040i1S..SV20198710-198808

L=400

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i1S..SV20198610-198808

sub96132-51100

9011908132

main90119-08132

9046400231

main90464-00231

9046400312

main90464-00312

9 parts on this diagram · 1 diagram in section
