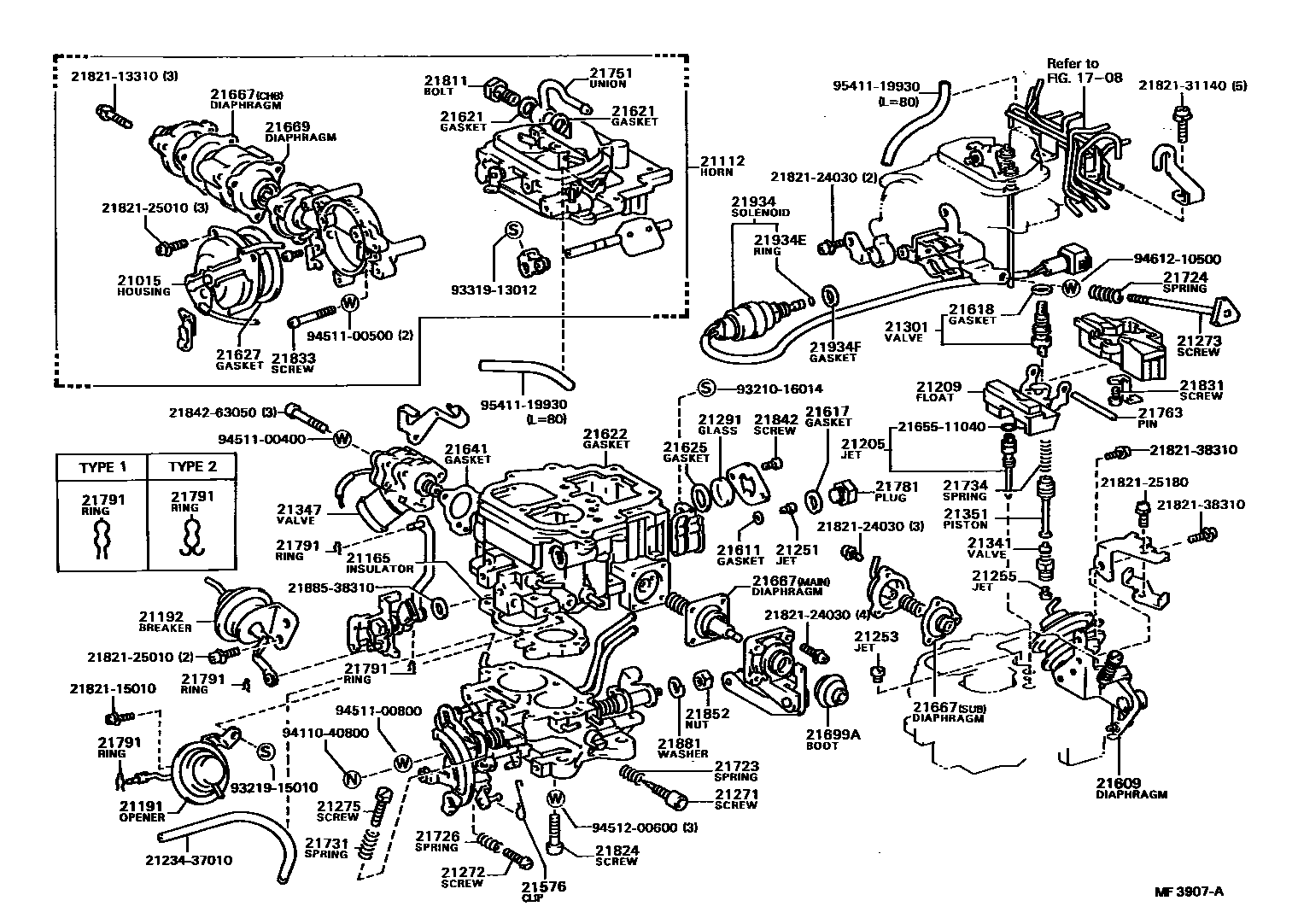

CARBURETOR
1708
21015HOUSING SUB-ASSY, COIL
21112HORN, AIR
21165INSULATOR
sub21165-74100
21191OPENER
21192BREAKER
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
21253JET, 2ND MAIN
sub21253-35410
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21341VALVE, POWER
21347VALVE, SOLENOID
sub21347-63201
21351PISTON, POWER
21576CLIP, PUMP STRAINER
21609DIAPHRAGM SUB-ASSY
21611GASKET, MAIN JET
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
sub21622-35540
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21641GASKET(FOR THERMOSTATIC VALVE COVER)
sub21641-74100
21667DIAPHRAGM
21669DIAPHRAGM
sub21669-73370
21699ABOOT(FOR ACCELERATION PUMP)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21734SPRING, POWER PISTON
21751UNION, NIPPLE
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
TYPE 2
21811BOLT, UNION NIPPLE
21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21831SCREW, POWER PISTON STOP
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2123437010PIPE OR HOSE
main21234-37010
2165511040RING, O(FOR LIFTER ROD)
main21655-11040
2182113310SCREW, 2ND THROTTLE VALVE SET
main21821-13310
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2184263050SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-63050
2188538310
main21885-38310
9321016014
main93210-16014
9321915010
main93219-15010
9331913012
main93319-13012
9411040800
main94110-40800
9451100400
main94511-00400
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461210500
main94612-10500
9541119930
main95411-19930
73 parts on this diagram · 1 diagram in section
