CAUTION PLATE & NAME PLATE (ENGINE)

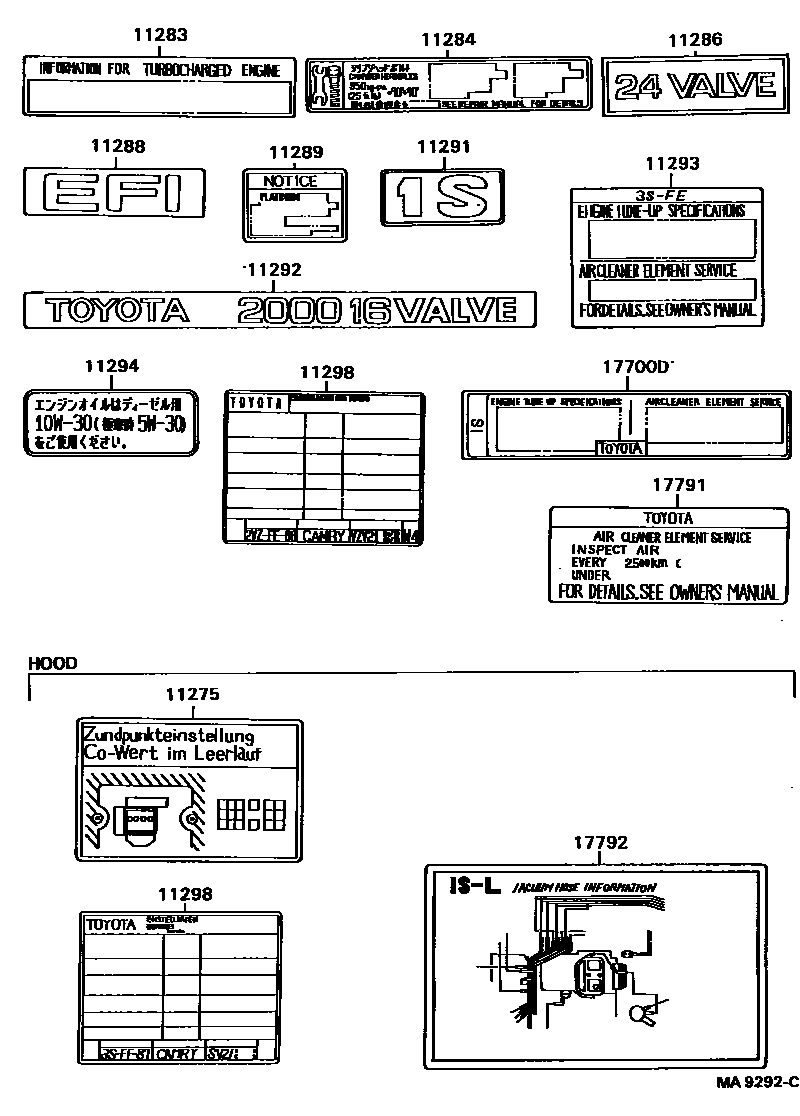

Parts diagram
11275PLATE, IGNITION TIMING ADJUSTING CAUTION
main11275-62010i198802-198808
main11275-62020i198802-198808
SWEDEN SPEC
main11275-74040i198610-198708
main11275-74050i198610-198708
SWEDEN SPEC
main11275-74080i198708-198710
main11275-74090i198710-198808
SWEDEN SPEC
11283PLATE, TURBOCHARGER CAUTION
main11294-64050i198610-198808
11284PLATE, ENGINE BOLT INFORMATION
main11284-62010i198802-198808
11286PLATE, ENGINE SPECIFICATION
main11286-62010i198802-198808
11288PLATE, ENGINE SYSTEM
main11288-74020i198610-198710
11289PLATE, SPARK PLUG CAUTION
main11289-73020i198802-198808
11291PLATE, ENGINE NAME
main11291-63020i198610-198710
1S
main11291-64050i198610-198808
11292PLATE, ENGINE NAME, NO.2
main11292-74020i198610-198710
main11292-74021i198808-198808
11293PLATE, ENGINE CAUTION & ENGINE NAME
main11293-74130i198610-198710
11294PLATE, ENGINE CAUTION, NO.2
main11294-54040i198710-198808
11298PLATE, EMISSION CONTROL INFORMATION
main11298-62040i198802-198808
main11298-62050i198802-198808
SWEDEN SPEC
main11298-74210i198610-198708
main11298-74220i198610-198708
SWEDEN SPEC
main11298-74340i198710-198808
main11298-74350i198710-198808
SWEDEN SPEC
main11298-74400i198710-198808
main11298-74410i198708-198710
SWEDEN SPEC
17700DPLATE, ENGINE CAUTION
main11293-63090i198610-198808
main11293-64030i198610-198808
17791LABEL, MAINTENANCE INFORMATION
main17791-55010i198711-198808
main17791-64030i198610-198711
main17791-74010i198805-198808
17792PLATE, ENGINE VACUUM HOSE INFORMATION
main17792-62020i198802-198808
main17792-63120i198610-198808
main17792-74110i198610-198710

14 parts on this diagram · 1 diagram in section
