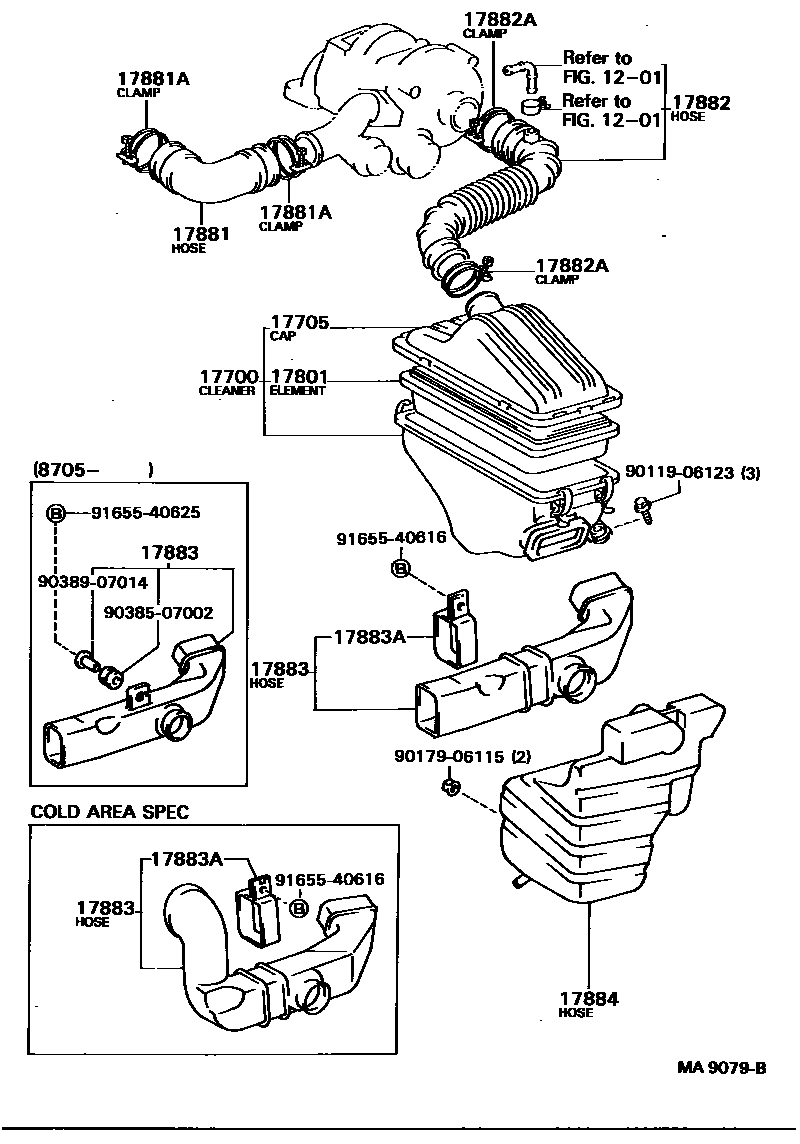

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
sub90467-56001
AIR CLEANER SIDE
HOSE SIDE
THROTTLE BODY SIDE
NO.1
THROTTLE BODY SIDE
PIPE SIDE
NO.2
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
TURBO SIDE
AIR CLEANER SIDE
AIR FLOW METER SIDE
17883HOSE, AIR CLEANER, NO.3
COLD SPEC
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
COLD SPEC
9011906123
main90119-06123
9017906115
main90179-06115
9038507002
main90385-07002
9038907014
main90389-07014
9165540616
main91655-40616
9165540625
main91655-40625
17 parts on this diagram · 5 diagrams in section
