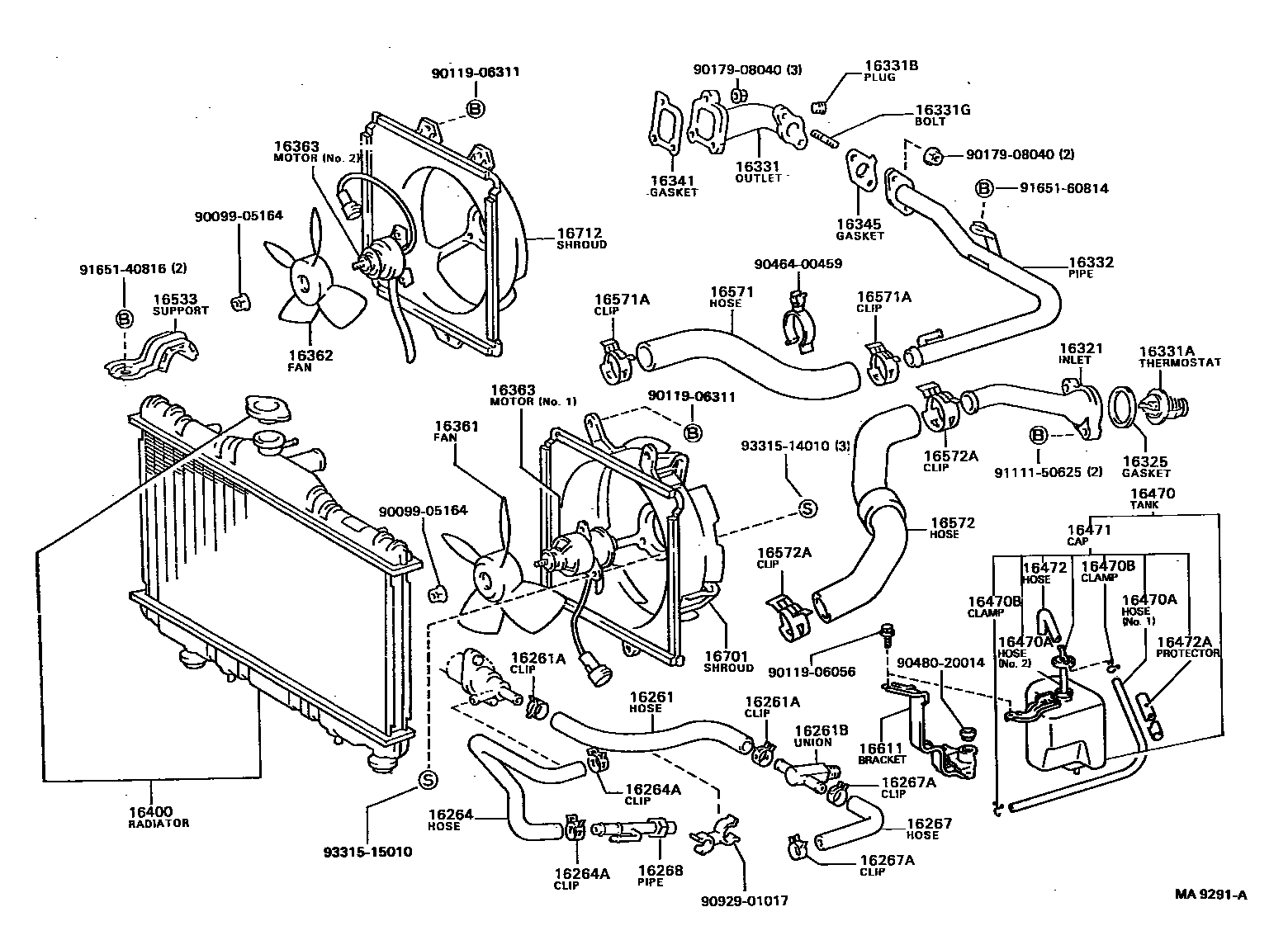

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51100
sub90467-11009
sub96135-51300
sub96134-41900
16321INLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16332PIPE, WATER OUTLET, NO.1
16345GASKET, WATER OUTLET PIPE
sub16345-64040
16363MOTOR, COOLING FAN
NO.1
NO.2
NO.1
NO.2
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1800(*H,L=170),NO.2
L=1450(*H,L=550),NO.1,NO.2
L=1800(*H,L=170),NO.1,NO.2
L=1450(*H,L=550),NO.1
L=600,NO.1,NO.2
*H,L=550,NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16472APROTECTOR, HOSE
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
9009905164
main90099-05164
9011906056
main90119-06056
9011906311
main90119-06311
9017908040
main90179-08040
9046400459
main90464-00459
9048020014
main90480-20014
9092901017
main90929-01017
9111150625
main91111-50625
9165140816
main91651-40816
9165160814
main91651-60814
9331514010
main93315-14010
9331515010
main93315-15010
47 parts on this diagram · 7 diagrams in section
