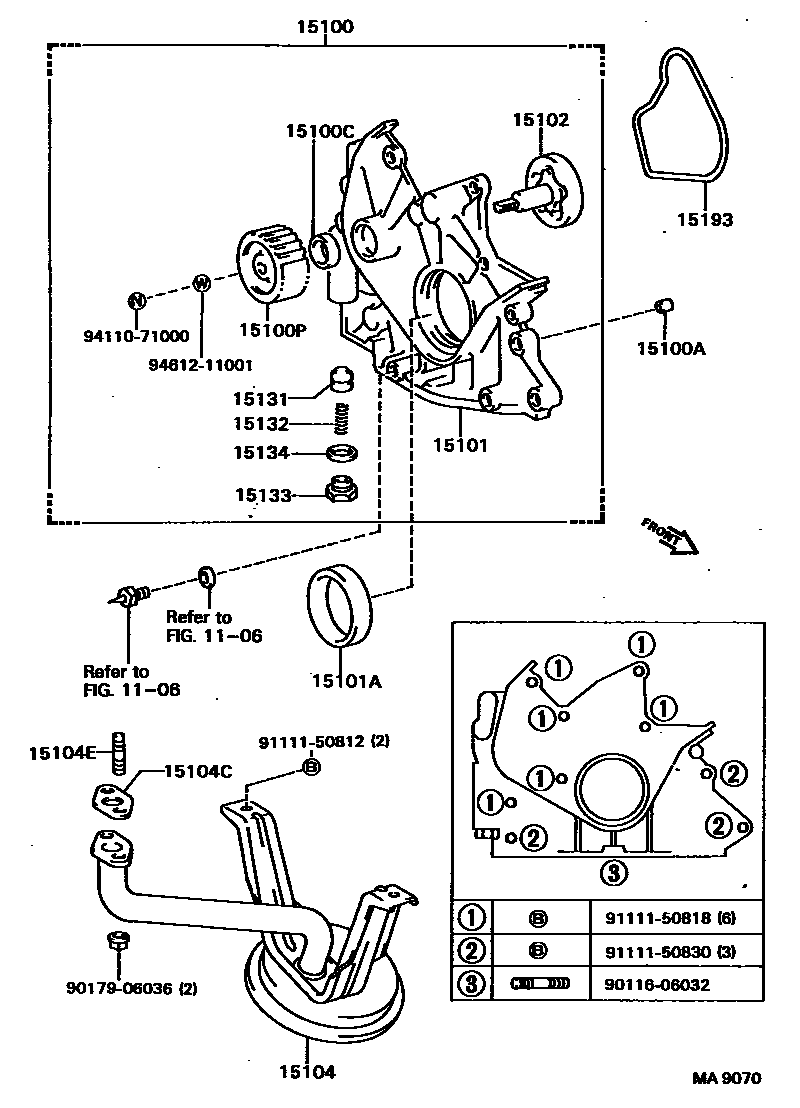

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1106

15100PUMP ASSY, OIL

main15100-62020i2VZFE..VZV21198802-198808

main15100-63010i1S..SV20198610-198808

main15100-64020i2CT..CV20198610-198808

sub15100-64021

main15100-74010i3SFE..SV21198610-198808

sub15100-74060

sub15197-74040

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i2CT..CV20198610-198808

15100CSEAL(FOR OIL PUMP)

main15165-70010i1S,3SFE..SV2#198610-198808

main90029-21007i2CT..CV20198610-198808

sub90029-21020

main90311-40006i2VZFE..VZV21198802-198808

sub90311-40013

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-63010i1S..SV20198610-198808

main13524-64010i2CT..CV20198610-198808

main13524-74020i3SFE..SV21198610-198808

15101BODY SUB-ASSY, OIL PUMP

main15101-64011i2CT..CV20198610-198808

sub15100-64030

sub15100-64040

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i1S,3SFE..SV2#198610-198808

sub90311-42026

main90311-42015i2CT..CV20198610-198808

sub90311-42026

15102ROTOR SET, OIL PUMP

main15102-63010i1S,3SFE..SV2#198610-198808

main15102-64020i2CT..CV20198610-198808

15104STRAINER SUB-ASSY, OIL

main15104-62010i2VZFE..VZV21198802-198808

main15104-63021i1S..SV20198610-198808

main15104-64021i2CT..CV20198610-198808

sub15104-64060

main15104-88360i3SFE..SV21,25198710-198808

main15104-88361i3SFE..SV21198610-198710

sub15104-88380

15104CGASKET(FOR OIL STRAINER)

main15147-62020i2VZFE..VZV21198802-198808

main15149-64010i2CT..CV20198610-198808

sub15149-64030

main15149-88360i3SFE..SV21198610-198808

sub23293-88360

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032i2CT..CV20198610-198808

15131VALVE, OIL PUMP RELIEF

main15131-24010i1S,3SFE..SV2#198610-198808

main15131-64020i2CT..CV20198610-198808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1S,3SFE..SV2#198610-198808

main15132-62010i2VZFE..VZV21198802-198808

main15132-76011i2CT..CV20198610-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2CT..CV20198610-198808

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2CT..CV20198610-198808

15193GASKET, OIL PUMP

main15193-64021i2CT..CV20198610-198808

sub15193-64022

main15197-63020i1S,3SFE..SV2#198610-198808

sub15197-63021

9011606032

main90116-06032

9017906036

main90179-06036

9111150812

main91111-50812

9111150818

main91111-50818

9111150830

main91111-50830

9411071000

main94110-71000

9461211001

main94612-11001

23 parts on this diagram · 4 diagrams in section
