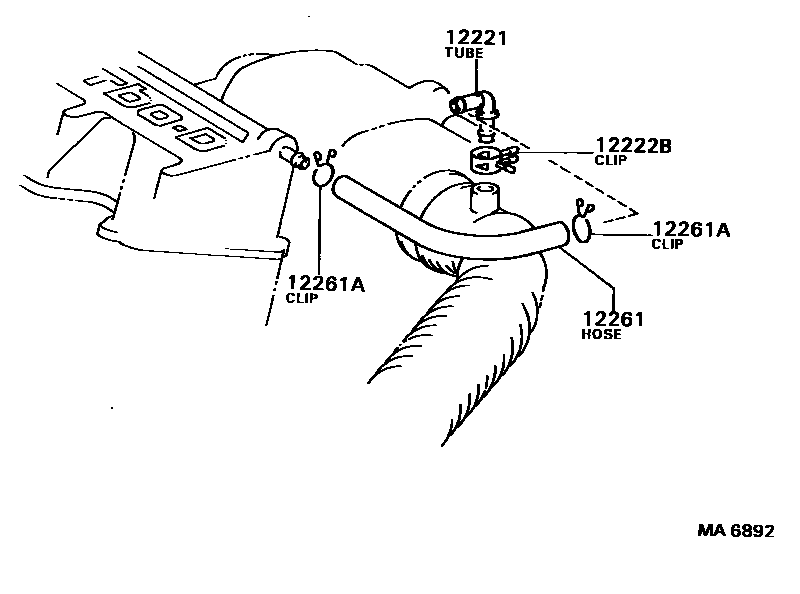

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12221TUBE, VENTILATION NO.1

main90407-10011i2CT..CV20198610-198808

12222BCLIP(FOR VENTILATION TUBE)

main96132-31000i2CT..CV20198610-198808

sub96132-41500

12261HOSE, VENTILATION

main12261-62020i2VZFE..VZV21198802-198808

main12261-63020i1S..SV20198610-198808

main12261-64040i2CT..CV20198610-198808

sub12261-64070

main12261-74020i3SFE..SV21,25198610-198808

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i1S..SV20198702-198808

main90467-14082i1S..SV20198610-198702

sub90467-14001

main90467-15120i2CT..CV20198610-198808

main90467-17002i2VZFE..VZV21198802-198808

NO.2

sub90467-17011

main90467-17126i2VZFE..VZV21198802-198808

NO.1

4 parts on this diagram · 4 diagrams in section
