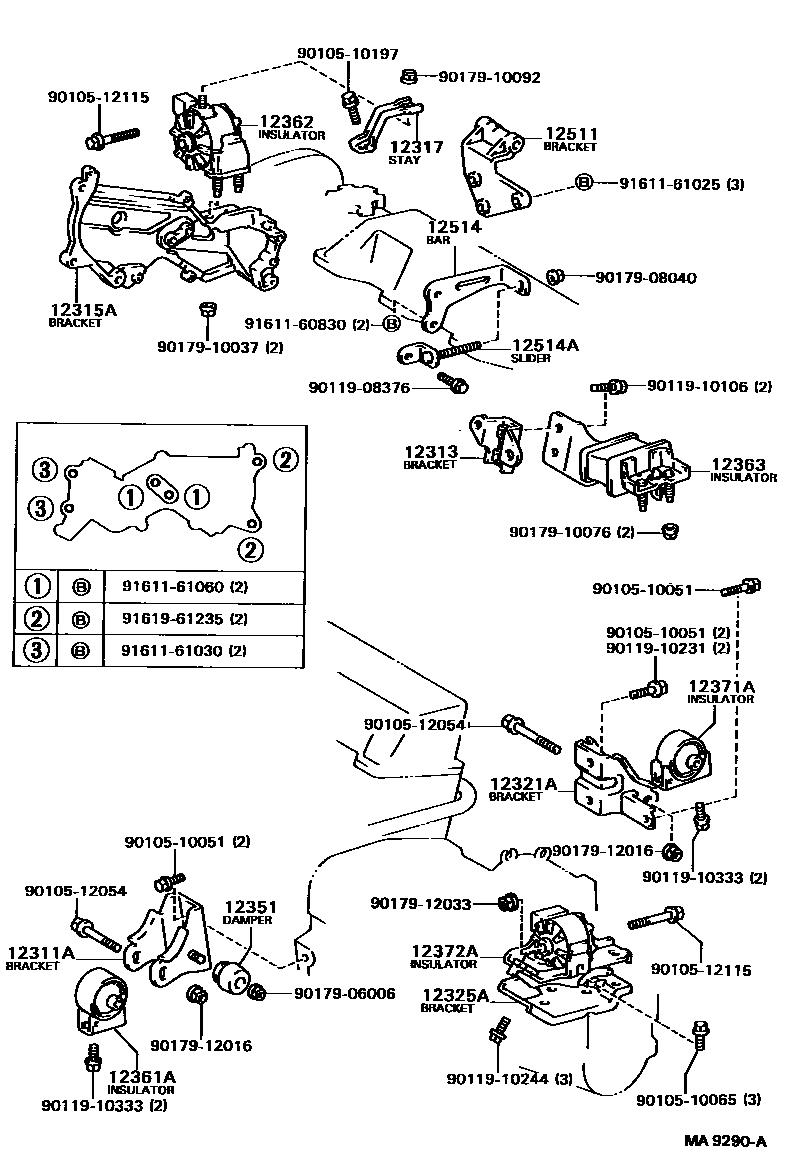

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-62010i2VZFE..VZV21198802-198808

main12311-63040i1S..SV20198610-198808

main12311-74030i2CT..CV20198610-198808

main12311-74050i3SFE..SV25198710-198808

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-62010i2VZFE..VZV21198802-198808

main12313-63010i1S..SV20198610-198808

sub12313-63011

main12313-64010i2CT..CV20198610-198808

main12313-74020i3SFE..SV21198610-198808

sub12313-74021

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-62020i2VZFE..VZV21198802-198808

main12315-64040i2CT..CV20198610-198808

main12315-74030i1S,3SFE..SV2#198610-198808

12317STAY, ENGINE MOUNTING, RH

main12317-62020i2VZFE..VZV21198802-198808

main12317-63010i1S..SV20198610-198808

main12317-64010i2CT..CV20198610-198808

main12317-74010i3SFE..SV21,25198710-198808

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-62010i2VZFE..VZV21..5F198802-198808

main12321-62030i2VZFE..VZV21..4FC198802-198808

main12321-63060i1S..SV20..5F198610-198808

main12321-63070i1S..SV20..4FC198610-198808

main12321-64110i3SFE..SV21..5F198610-198808

main12321-64120i3SFE..SV21..4FC198610-198808

main12321-74060i3SFE..SV25198710-198808

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-62010i2VZFE..VZV21..5F198710-198808

main12325-62020i2VZFE..VZV21..4FC198802-198808

main12325-63040i1S..SV20..5F198610-198808

main12325-63050i1S..SV20..4FC198610-198808

main12325-74030i3SFE..SV21..5F198610-198808

main12325-74031i2CT..CV20198808-198808

main12325-74040i3SFE..SV21..4FC198610-198706

main12325-74041i3SFE..SV21..4FC198706-198808

12351DAMPER, ENGINE MOUNTING

main12351-63010i3SFE..SV25198710-198808

main12351-64020i2CT..CV20198710-198808

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-62011i2VZFE..VZV21..5F198802-198808

main12361-62020i2VZFE..VZV21..4FC198802-198808

main12361-64110i2CT..CV20198610-198808

sub12361-64190

main12361-64120i1S,3SFE..SV20,21..4FC198710-198808

main12361-74010i3SFE..SV25198710-198808

sub12361-74150

main12361-74020i1S,3SFE..SV2#..5F198610-198710

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-62020i2VZFE..VZV21198802-198808

main12362-63050i1S..SV20198610-198808

main12362-64050i2CT..CV20198610-198808

main12362-74030i3SFE..SV21198610-198808

main12362-74060i3SFE..SV25198710-198808

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-64010i2CT..CV20198610-198808

main12363-74010i2VZFE..VZV21198710-198808

MARUYASU

main12363-74030i1S,3SFE..SV2#198610-198710

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62011i2VZFE..VZV21..5F198802-198808

main12371-62020i2VZFE..VZV21..4FC198802-198808

main12371-64090i2CT..CV20198610-198808

sub12371-64091

main12371-64100i1S,3SFE..SV2#..4FC198610-198710

main12371-74030i1S,3SFE..SV20,21..5F198710-198808

main12371-74060i3SFE..SV25198710-198808

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62010i2VZFE..VZV21..5F198802-198808

sub12372-62030

main12372-62020i2VZFE..VZV21..4FC198802-198808

sub12372-62040

main12372-64060i2CT..CV20198610-198808

main12372-74040i1S,3SFE..SV2#..5F198610-198710

main12372-74050i1S,3SFE..SV2#..4FC198610-198710

main12372-74052i1S,3SFE..SV20,21..4FC198802-198808

sub12372-64071

main12372-74080i3SFE..SV25198710-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-63031i1S..SV20198610-198808

main12511-64020i2CT..CV20198610-198808

main12511-74020i3SFE..SV21198610-198710

sub12511-74051

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-63020i1S..SV20198610-198808

main12514-74010i3SFE..SV21,25198710-198808

sub12514-74011

main16381-64020i2CT..CV20198610-198808

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i1S,3SFE..SV2#198610-198710

main16385-64020i2CT..CV20198610-198808

9010510051

main90105-10051

9010510065

main90105-10065

9010510197

main90105-10197

9010512054

main90105-12054

9010512115

main90105-12115

9011908376

main90119-08376

9011910106

main90119-10106

9011910231

main90119-10231

9011910244

main90119-10244

9011910333

main90119-10333

9017906006

main90179-06006

9017908040

main90179-08040

9017910037

main90179-10037

9017910076

main90179-10076

9017910092

main90179-10092

9017912016

main90179-12016

9017912033

main90179-12033

9161160830

main91611-60830

9161161025

main91611-61025

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

37 parts on this diagram · 8 diagrams in section
