ENGINE OVERHAUL GASKET KIT

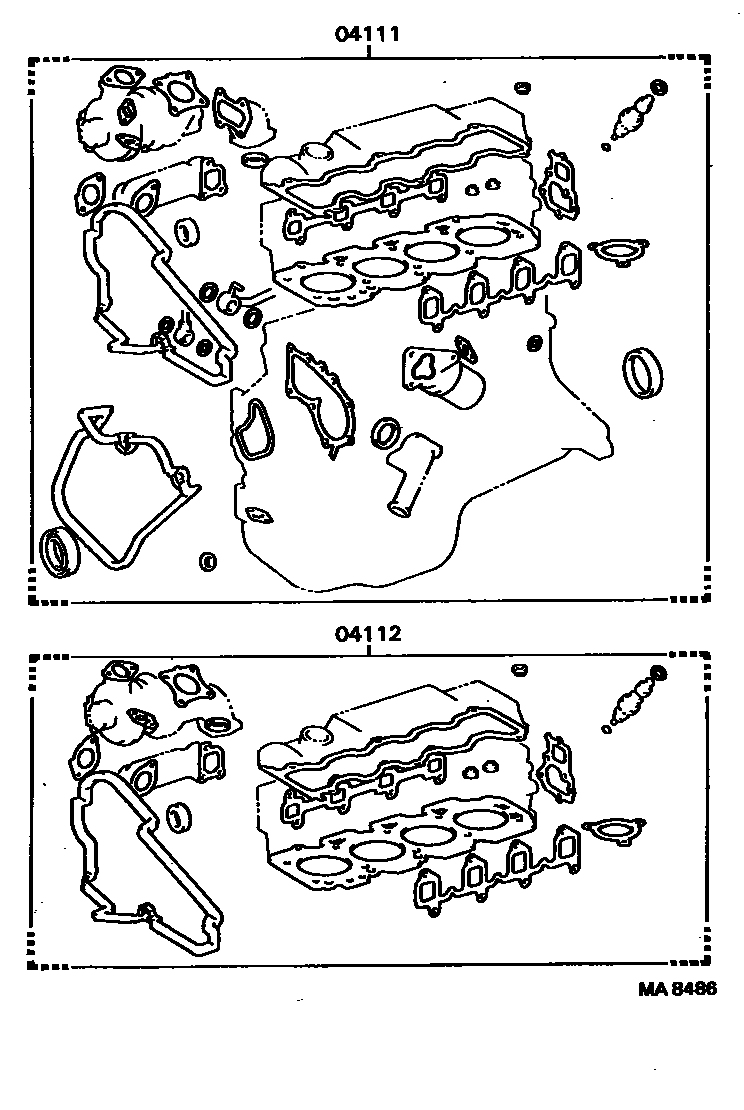

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-62020i198802-198808
sub04111-62021
main04111-63021i198610-198806
sub04111-63022
main04111-63022i198806-198808
sub04111-63023
main04111-64101i198610-198808
sub04111-64103
main04111-74051i198610-198808
sub04111-74052
04112GASKET KIT, ENGINE VALVE GRIND
main04112-62020i198802-198808
main04112-63020i198610-198806
sub04112-63021
main04112-63021i198806-198808
sub04112-63022
main04112-64082i198610-198808
sub04112-64084
main04112-74050i198610-198808
sub04112-74051

2 parts on this diagram · 4 diagrams in section
