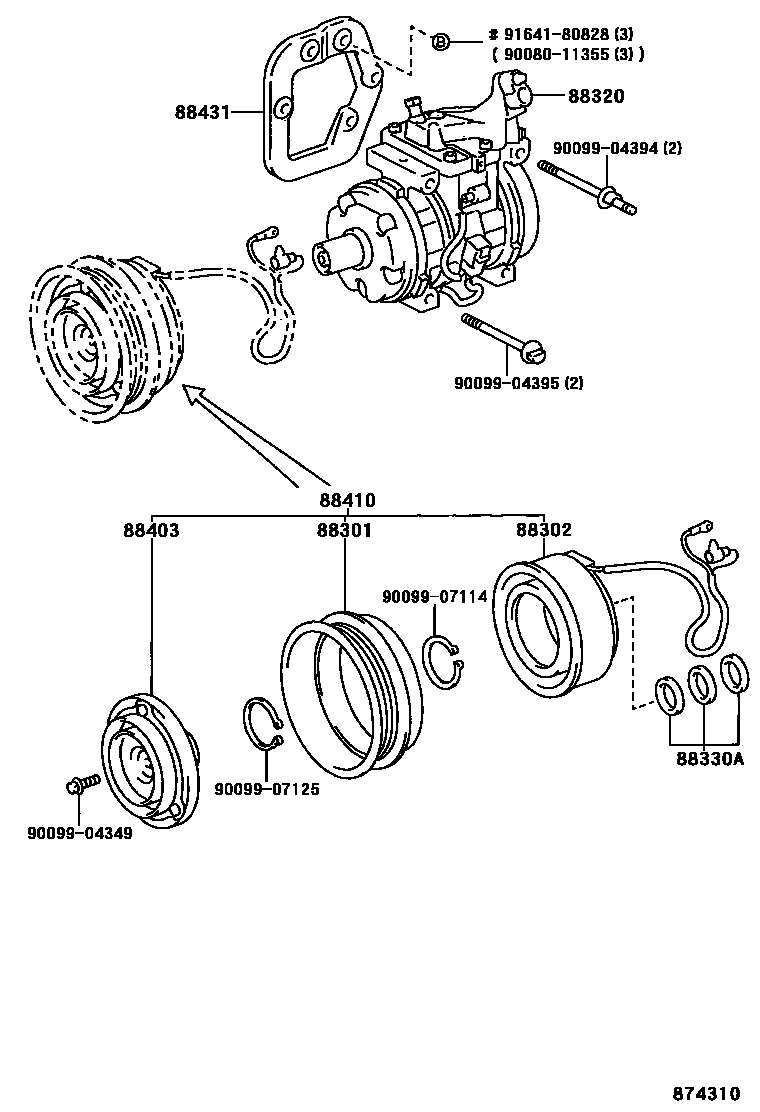

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A050iSXV20..JPP199708-199908

main88412-33010iMCV20..JPP199608

main88412-33040iSXV20..JPP199608-199708

sub88412-2A050

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iSXV20..JPP199608-199708

sub88411-2A030

main88411-2A030iSXV2#..JPP199708-199908

main88411-33050iMCV20..JPP199608

88320COMPRESSOR ASSY, COOLER

main88320-33100iSXV20..JPP199608-199908

main88320-33120iMCV20..JPP199608

sub88320-33H90

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCV20,SXV2#..JPP199608-199908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iMCV20,SXV20..JPP199608-199908

88410CLUTCH ASSY, MAGNET

main88410-28170iSXV20..JPP199610-199908

main88410-33100iSXV2#..JPP199608-199610

main88410-33110iMCV20..JPP199608

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07010iMCV20..JPP200008

(L)

main88431-33020iMCV20..JPP199608-200008

main88431-33020iMCV20..JPP200008

(J)

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907114

main90099-07114

9009907125

main90099-07125

9164180828

main91641-80828

14 parts on this diagram · 3 diagrams in section
