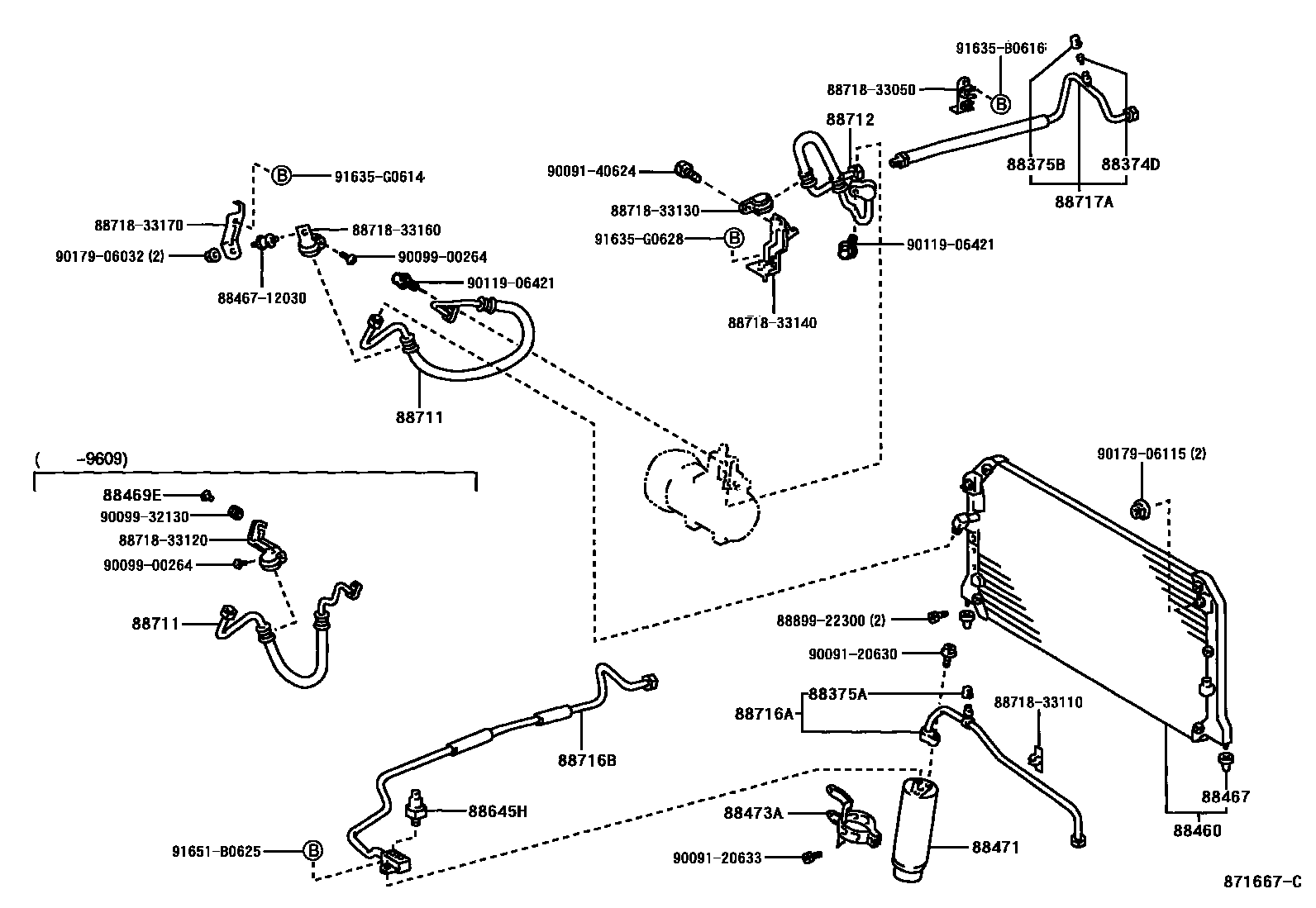

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O RING

88374DVALVE, SERVICE NO.3

main88374-30010iMCV20,SXV2#..JPP199608

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-02060iMCV20,SXV20..JPP¥110199608-199908

sub88375-0E020

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iMCV20,SXV20..JPP199608-199908

88460CONDENSER ASSY, COOLER

main88460-06060iMCV20,SXV20..JPP¥45,500199608-199705

main88460-06061iMCV20,SXV20..JPP¥42,400199705-199908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06030iMCV20,SXV20..JPP199608-199908

88469ECOLLAR, CONDENSER BRACKET, NO.2

main88469-28010iMCV20,SXV20..JPP¥0199608-199609

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iMCV20,SXV20..JPP¥4,790199608-199908

88473AHOLDER, RECEIVER

main88473-06030iMCV20,SXV20..JPP199608-199908

88645HSWITCH, PRESSURE NO.1

main88645-20050iMCV20,SXV20..JPP199608-199908

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33100iSXV20..JPP¥14,300199608-199705

main88711-33101iSXV2#..JPP¥14,200199705-199908

main88711-33110iMCV20..JPP¥14,300199608-199705

main88711-33111iMCV20..JPP¥14,000199705

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33060iSXV2#..JPP¥14,000199608-199908

main88712-33080iMCV20..JPP¥14,700199608

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-06110iMCV20,SXV2#..JPP¥7,900199608-199908

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-33260iMCV20,SXV20..JPP¥10,000199608-199705

main88716-33261iMCV20,SXV20..JPP¥9,400199705-199808

main88716-33310iMCV20,SXV20..JPP¥9,300199808-199908

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-33140iMCV20,SXV20..JPP¥12,800199608-199808

main88717-33180iMCV20,SXV20..JPP¥12,200199808-199908

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

8871833050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33050

8871833110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33110

8871833120PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33120

8871833130PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33130

8871833140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33140

8871833160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33160

8871833170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33170

8889922300COVER, EVAPORATOR

main88899-22300

9009120630

main90091-20630

9009120633

main90091-20633¥0

9009140624

main90091-40624

9009900264

main90099-00264

9009932130

main90099-32130

9011906421

main90119-06421¥170

9017906032

main90179-06032¥120

9017906115

main90179-06115¥120

91635B0616

main91635-B0616¥110

91635G0614

main91635-G0614¥110

91635G0628

main91635-G0628¥100

91651B0625

main91651-B0625¥80

35 parts on this diagram · 3 diagrams in section
