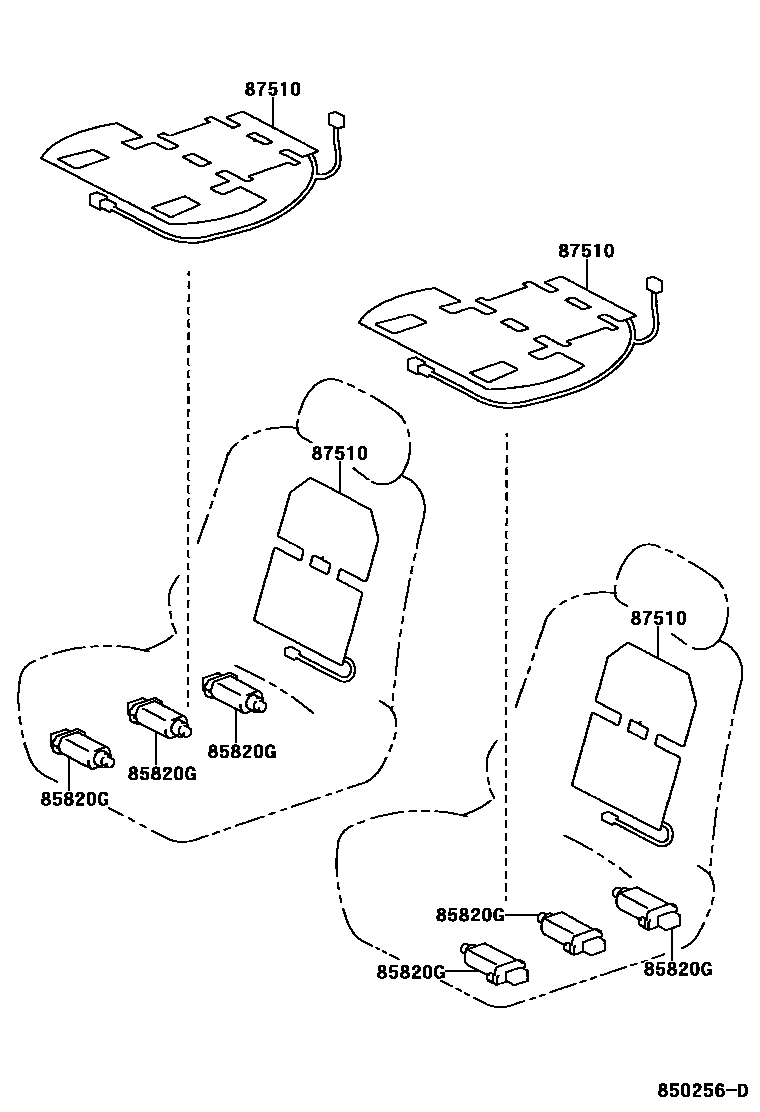

SEAT MOTOR & SEAT HEATER

85820GMOTOR ASSY, POWER SEAT

main85820-30510iMCV20,SXV20..JPP199608-199908

main85820-30510iMCV20,SXV20..JPP..LE199908-200005

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE)

main85820-30710iMCV20,SXV20..JPP..LE200005

FOR RECLINING

main85820-30710iMCV20,SXV20..JPP..LE200005

W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE),FOR RECLINING

87510HEATER ASSY, SEAT

main87510-0W091iMCV20,SXV20..JPP..(LE,XLE)..CND200008

SCANDMEC & CONNECTOR 2 + 2 PIN,SEAT CUSHION

main87510-0W101iMCV20,SXV20..JPP..(LE,XLE)..CND200008

SCANDMEC & CONNECTOR 2 + 2 PIN,SEAT BACK

main87510-33090iMCV20,SXV20..JPP..(LE,XLE)..CND200008

MATSUSHITA & CONNECTOR 2 + 3 PIN,SEAT CUSHION

main87510-33100iMCV20,SXV20..JPP..(LE,XLE)..CND200008

MATSUSHITA & CONNECTOR 2 + 3 PIN,SEAT BACK

2 parts on this diagram · 1 diagram in section
