ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iMCV20..JPP..(LE,XLE)199608-199908

W(TRACTION CONTROL)

main88263-14110iMCV20,SXV2#..JPP199908

88263ERELAY, SKID CONTROL NO.2

main88263-24030iMCV20..JPP..(LE,XLE)199608-199908

W(TRACTION CONTROL)

main88263-24030iMCV20,SXV2#..JPP199908

89540COMPUTER ASSY, SKID CONTROL

main89540-33030iMCV20..JPP199608-199609

W(TRACTION CONTROL)

sub89540-33032

main89540-33031iMCV20..JPP199609-199708

W(TRACTION CONTROL)

sub89540-33110

main89540-33041iMCV20,SXV20..JPP199608-199701

sub89540-33090

main89540-33070iMCV20..JPP..(LE,XLE)199908-200008

W(TRACTION CONTROL)

main89540-33080iMCV20..JPP..(LE,XLE)200008

W(TRACTION CONTROL)

main89540-33080iMCV20..JPP..USA199908-200008

CALIFORNIA SPEC & W(TRACTION CONTROL)

main89540-33090iMCV20,SXV20..JPP199701-199808

main89540-33110iMCV20..JPP..(LE,XLE)199708-199908

W(TRACTION CONTROL)

main89540-33120iMCV20..JPP..USA199708-199908

CALIFORNIA SPEC & W(TRACTION CONTROL)

main89540-33170iMCV20,SXV20..JPP199808-199908

main89540-33200iMCV20,SXV2#..JPP199908

89542SENSOR, SPEED, FRONT RH

main89542-33030iMCV20,SXV2#..JPP199608-199908

89543SENSOR, SPEED, FRONT LH

main89543-33030iMCV20,SXV20..JPP199608-199908

89545SENSOR, SPEED, REAR RH

main89545-33020iMCV20,SXV2#..JPP199608

89546SENSOR, SPEED, REAR LH

main89546-33020iMCV20,SXV2#..JPP199608

9015970003

main90159-70003

9017906070

main90179-06070

91611B0610

main91611-B0610

91626B0616

main91626-B0616

91651B0618

main91651-B0618

G341633010

mainG3416-33010

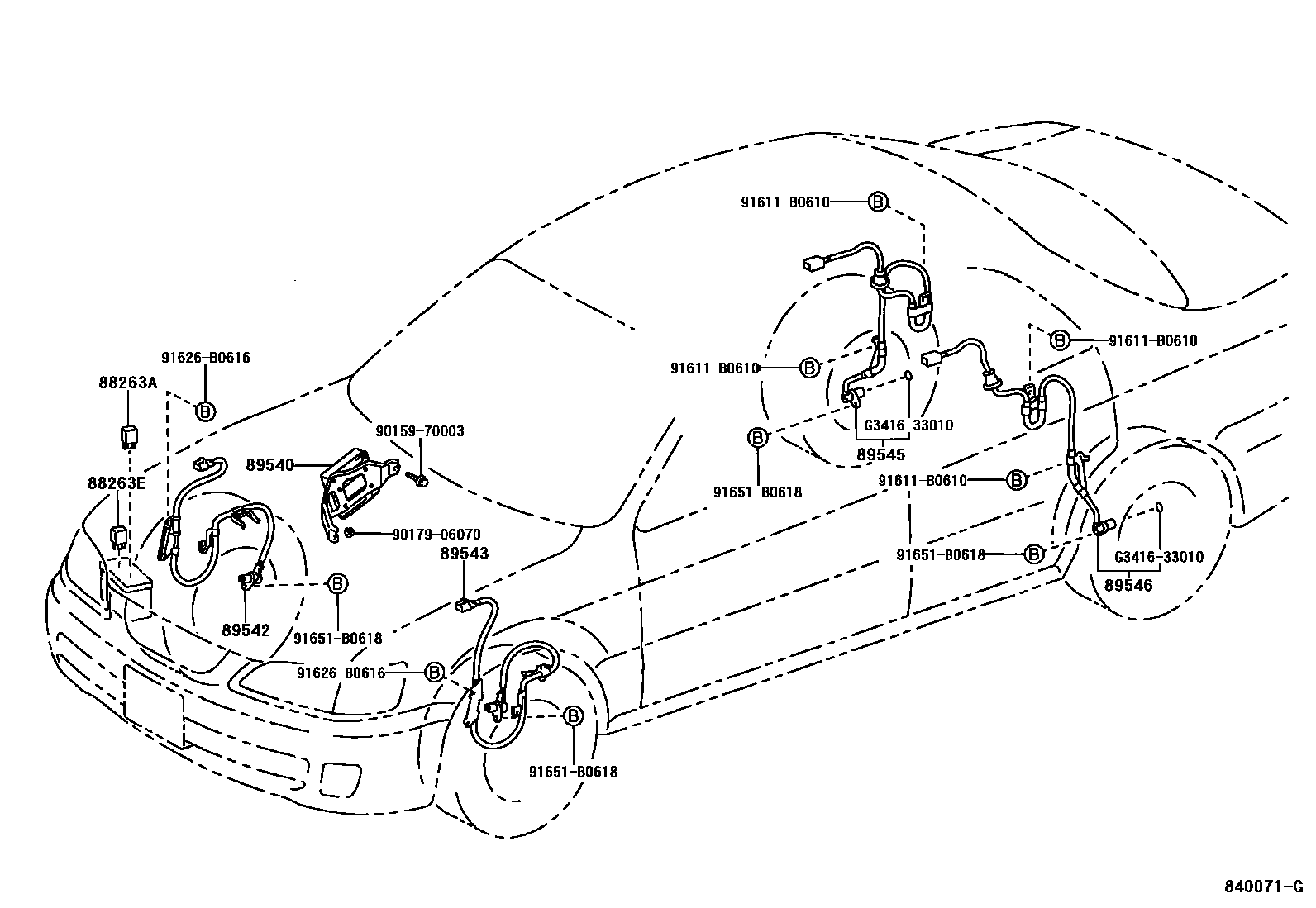

13 parts on this diagram · 1 diagram in section
